5HP High Vacuum Cyclone Dust Collector

High static air pressure system for CNC, sanding, and other fine dust applications. Complete system includes heavy-gauge steel cyclone, U.S. made motor, spunbond cartridge filter, angle frame stand, 55 gallon dust bin, filter gauge, and more.

Usually ships in 2-4 weeks

Phase (Pre-Wired)	1-Phase, 3-Phase
Power Configuration	230V, 460V

SKU: XXK05 Categories: Dust collectors, Professional Collection Systems

Inquire Now

Description

High Vacuum Pressure Dust Control for Industrial CNC Cutting Tools

Our 5HP High-Vacuum Dust Collector is one of our most powerful professional dust collection systems and is designed for small to medium sized shops running tools, such as CNC machines, where a high amount of static pressure is needed to adequately collect airborne dust. The unique configuration of our High-Vacuum systems make full use of the high-efficiency U.S. motor and cyclone separator to deliver maximum static pressure to multiple tools simultaneously.

This high pressure system is ideal for use with any type of CNC cutting tools as well as saws, jointers, lathes, shapers, planers, routers, sanders, and more!

Included Features & Components

Industrial 5HP U.S. Made Fan Blower Motor
Magnetic Starter w/ Overload Protector
Heavy-Gauge Seam Welded Steel Cyclone Separator
High-Efficiency Modular Cartridge Filters
Real-time Filter Efficiency Gauge
Internal Foam Silencer
Compact, Heavy-Duty Steel Angle Frame Stand
55-Gallon Reinforced Steel Dust Bin
D.I.Y. Ductwork Design Guide
2 Year Limited Warranty

Feature

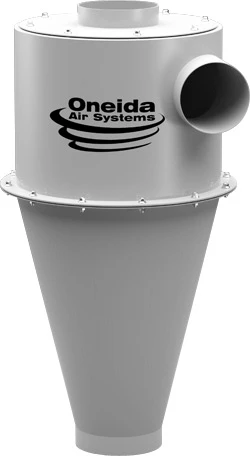

c-1800-cyclone-separator-powder-coated-small-2

Ultra-High Efficiency Steel Cyclone Separator

Features Oneida Air Systems’ unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.

Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
Large 8″ dia. neutral-vane inlet for use with 8″ to 6″ ductwork layouts.
Industrial 16 gauge steel construction with full welded, airtight seams.
Durable, rust preventative, almond-white powder coat finish.

Continuously High Airflow Performance

Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That’s why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior than the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.

21-23-angle-bracket-leg-kit-w-extensions-1

Compact, Configurable Design

With its compact footprint, the 5HP High-Vacuum system can be configured to work easily into most ductwork setups. Designed for larger shops running multiple tools, this system can also be outfitted with different support systems and dust container configurations (e.g. splitter kit, hoppers, airlocks, etc.) – Call for details.

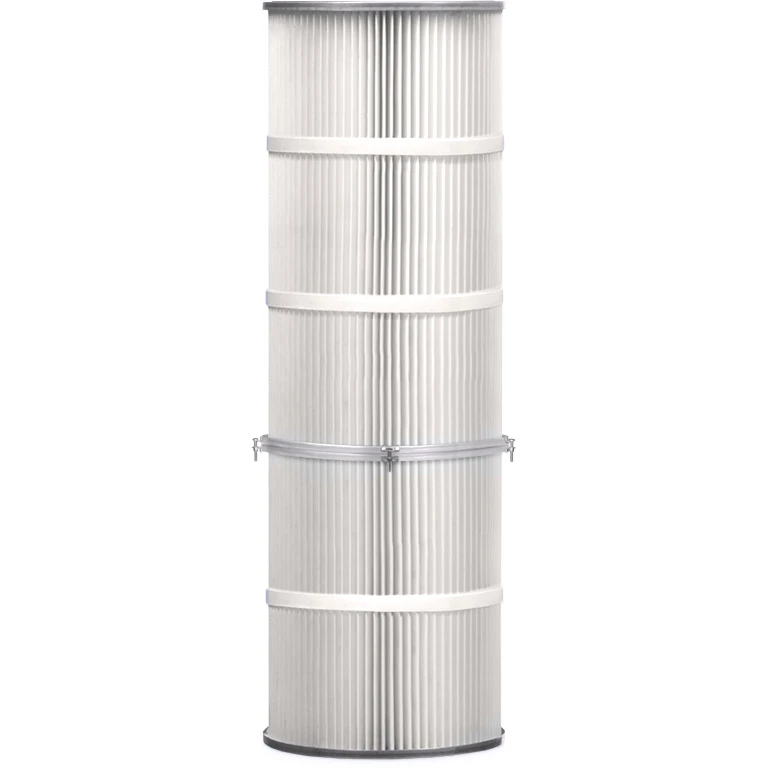

High Quality & Serviceable Filtration

The High Vacuum system uses spunbond polyester cartridge filters that are specifically designed for dust collection applications – providing unbeatable airflow and filtration performance – and are proudly made in the USA!

OAS fully stands by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.
Patented filter stacking system provides the filtration area of a single larger filter, but without the cumbersome weight and install, and provides additional savings when replacements are required.
Patented internal acoustic foam reduces noise caused by vibrating outgoing air by 1–2 dBa
Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.
Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maitenance

Specifications

Horsepower	5HP
Motor Type	U.S. TEFC Motor
Motor Service Factor	1ph: 1.00 \| 3ph: 1.15
Voltage	208-230V
Recommended Breaker Size	30A
Amperage (Typical)	1ph: 19.5A 3ph: 12-11.8A (5.9A @ 460V)
Frequency	60Hz
Power Connector
Power Cord Length	10 feet
Impeller Type	Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy.
Impeller Size	16-1/2" Dia.

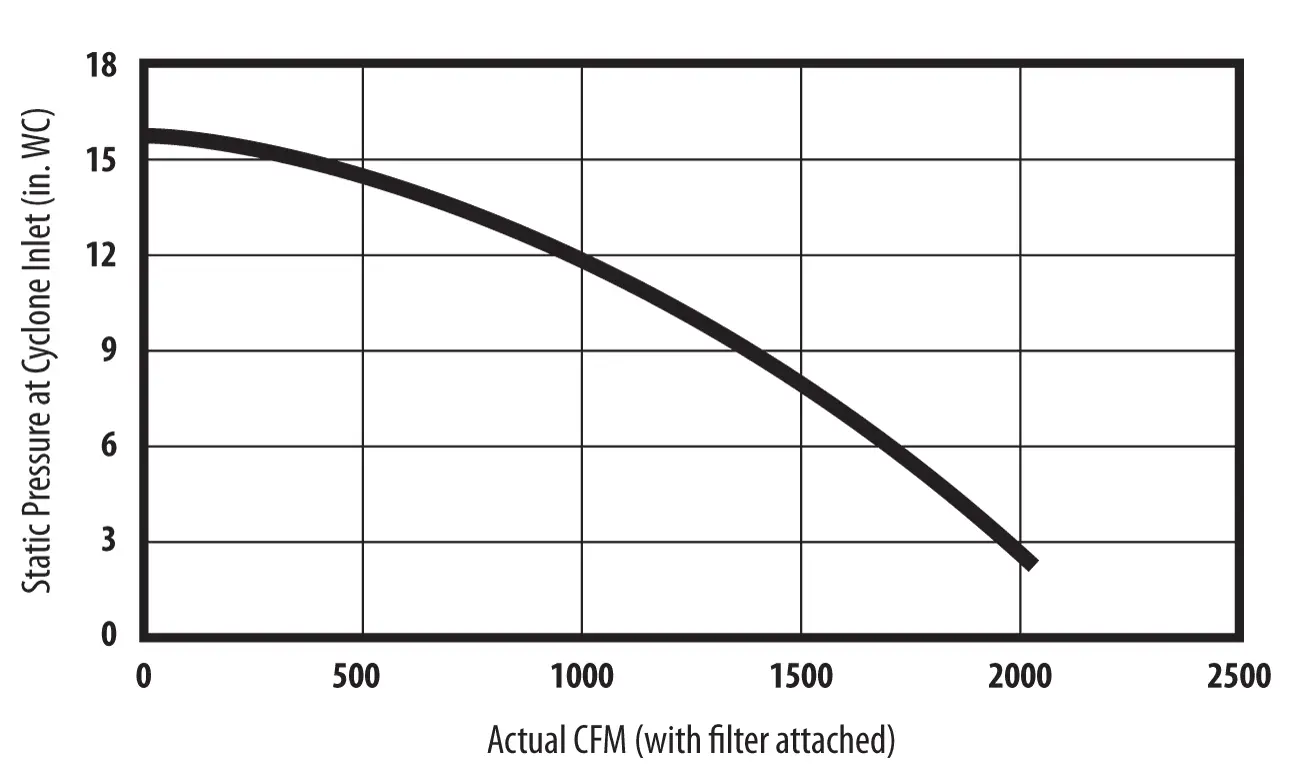

Real CFM Rating	2,150 Actual CFM at 2" S.P.
Free Fan CFM Rating	3,225 CFM
Maximum Suction	16" WC
Noise Level	75-81 dBA @ 10 ft
Filter Type	Izumi Axtar Spunbond Media
Filtration Efficiency	99.9% @ 0.2-2.0 microns
MERV Rating	MERV 13 ±
Total Filtration Area	155 sq ft
Waste Capacity	55 Gallons
Remote Control	Sold Separately
Remote Control Part #	1ph: Item #AXR220000 3ph: Item #AKR220003
Primary Build Materials	Cold Rolled Steel
Welding	Seam Welded
Static Resistance Rating	Conductive (Metal)
Color	White
Inlet Size	8" Dia.
Outlet Size	Square ID: 10.031" (W) x 7.64" (H) with 1.25" Flange
Discharge Size	10" Dia.
Width	59" w/ Filter
Depth	31"
Height	109.5"
Height to Center of Inlet	80"
Contents	Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Filter Plenum, 2x Stacking Cartridge Filters, Internal Silencer, Filter Efficiency Gauge, Drum, Stand, Hardware
Country of Manufacture	United States
Warranty Information	2 Year Limited Warranty
Certifications	Complete system is cETLus certified for indoor use
Applicable Patents	US Pat. #7247180, #9370740
