Oneida Vortex DCS – 35 Gal. Portable Floor Sanding Dust Containment System


Tests 15x cleaner than traditional cloth bag systems, leaving floors clean and saving you valuable time and money! Eliminates the need for plastic sheeting, messy dust bags, and larger trailer vacuum systems. Patented Vortex sander cyclone improves suction at the sander, allowing for up to 100 feet of 2″ dia. hose. Includes 110V full-unit HEPA Dust Cobra® vacuum and DCS retrofit handle compatible with popular floor sanders by Bona, Clarke, Hummel, K&T, Pallmann, and more.

Usually ships in 2-4 weeks
Floor Sander DCS Handle NONE - No Handle Option Selected, Retrofit for Bona Universal 8" / 10" Sanders, Retrofit for Clarke EZ-8 American Sanders, Retrofit for K&T Taurus, Bona Belt-HD Sanders, Retrofit for Lagler HUMMEL 8" Sanders, Retrofit for Lagler SUPERHUMMEL 12" Sanders
Waste Capacity 35 Gallons
Inquire Now SKU: XCKM013500-VOR Categories: ,


The World’s Cleanest Floor Sanding Dust Containment System

The patented Oneida Vortex® DCS is the pinnacle of portable dust containment technology. It easily installs onto nearly any make/model floor sander, converting it into a truly dust-free machine that tests 15x cleaner than traditional cloth bag systems. The unique design of the Vortex eliminates the need for plastic sheeting and vacuuming after sanding is done, saving you valuable time and money and leaving your customers more satisfied than ever!

By equipping yourself with the Vortex DCS, you’ll secure the fast growing customer demand for floor sanders, and you can even charge a premium for your services. If you’re not dust-free, your competition certainly will be!

Benefits & Features:

  • 15x cleaner than traditional cloth bag systems.
  • Patented Vortex sander cyclone relieves air pressure, allowing for up to 100ft of vacuum hose (50ft included).
  • Dual cyclonic system virtually eliminates filter clogging and suction loss.
  • Retrofits to nearly any make/model floor sander including Bona, Clarke, Galaxy, Lagler, Pallmann, etc.
  • Full-unit HEPA vacuum operates on convenient 110V power.
  • Can support dust collection from two floor refinishing tools at once*.
  • Internal vacuum pulse filter cleaner removes dust clogs in seconds.
  • 35-gallon dust bin equipped with sealable liner bag and automatic fill level indicator.
  • Compact, portable, and lightweight design removes the need for large, expensive trailers.
  • Owners receive FREE listing in our dust-free contractor directory.


Compatible With Most Popular Floor Sanders

Unlike competitive dust containment systems, the Vortex DCS doesn’t require messy, cloth bags or large, expensive trailers. Dust is captured at the source and safely contained up to 100′ away using an industrial 35-gallon vacuum. The vacuum is accompanied by our patented retrofit cyclone that mounts conveniently to the floor sander.

  • Compact and lightweight design simplifies storage and transport.
  • Attaches quickly and easily onto the sander’s dust exhaust pipe / DCS retrofit handle.
  • Cyclone rotates 270 degrees to always provide the best possible floor view.
  • Relieves 75% of air pressure from the sander’s blower, improving total suction performance.
  • Releases breathable air through a serviceable / replaceable HEPA filter.

Use Multiple Floor Tools Simultaneously

The Vortex’s sander cyclone allows for two tools to be connected simultaneously (additional hose and splitter required). These configurations are perfect for contractors who want to have the edger in operation right after the sander has finished, or for workers looking to double their sanding/buffing capacity.

Integrated Pulse Filter Cleaner

There are few tasks worse than dealing with a clogged vacuum filter; cleaning them can be messy, time consuming, and it’s often the only way to restore suction. Now you can clean your filter without disassembling or turning off the vacuum!

  • Removes clogs from the filter in seconds.
  • Works while the vacuum is in operation.
  • Minimizes worker’s exposure to harmful wood dust.
  • Manual operation puts you in control of your system.

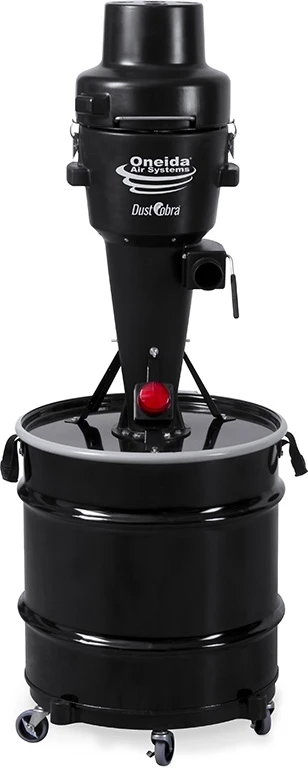

Full-Unit Certified HEPA Dust Extractor

In the home renovation and professional contracting industry, there’s no substitute for full-unit HEPA certification. That’s why the Vortex’s vacuum includes a printed certificate to document that the unit has been independently tested and certified to strict EPA guidelines, protecting you from expensive fines! With this certification you can work comfortably with the knowledge that your vacuum system is fully sealed to eliminate leakage, protecting the work environment and those within it.

  • HEPA filter media rated as 99.97% efficient at 0.3 microns.
  • Meets and exceeds all EPA RRP requirements for contractors – including lead!
  • Requires zero pre-loading and works at peak efficiency right out of the box.
  • The filters’ wide-spaced pleating and non-stick coating facilitates quick and easy maintenance.

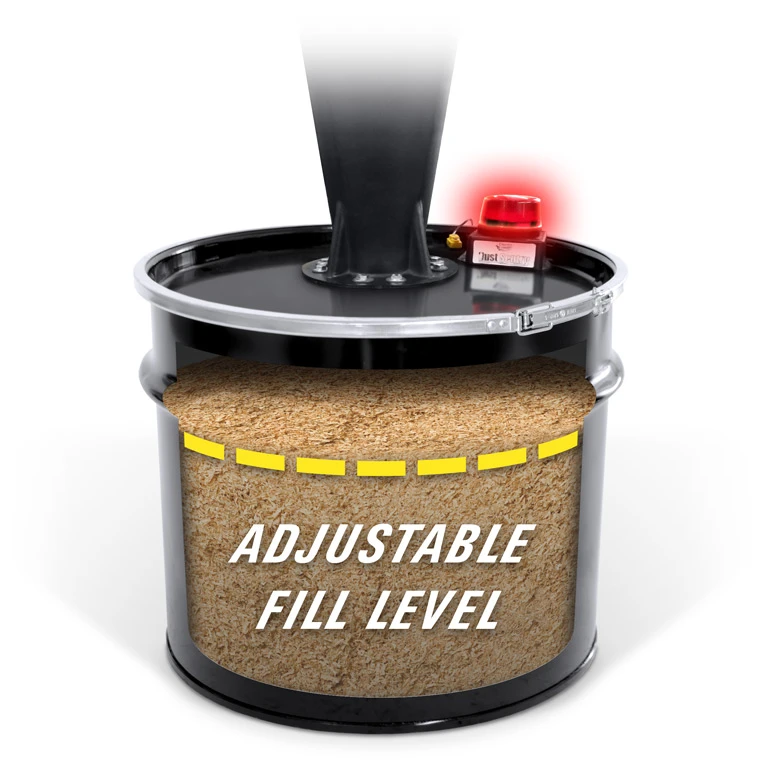

Automatic Dust Bin Level Sensor

Oneida Air Systems’ patented Dust Sentry™ takes the guesswork out of using your vacuum! This adjustable optical sensor detects when the drum has been filled to a pre-set level and flashes a high visibility strobe light to alert you when it’s time to empty.

Capable of detecting nearly any type of wet/dry material, the Dust Sentry will significantly streamline your workflow and put you back in control of how long you can keep working.

35-Gallon Steel Drum with Automatic Bag Holder

The Vortex vacuum features one of the largest waste containers available for a wet/dry vacuum–at a whopping 35-gallon capacity! It’s intended for contractors and other professionals who need the freedom to work without worrying about constantly emptying their vacuum.

Waste disposal is made fast and simple thanks to the vacuum’s automatic bag holder system that uses vacuum pressure to keep plastic bags open inside the drum. When you know the drum is full (thanks to the built-in bin level sensor), simply remove the lid, tie off the bag, and lift it out!

Supports Up To 100 Feet of 2″ Diameter Hose

The Vortex vacuum can be positioned up to 100ft away from the floor sander, outside or in the garage, safely containing the dust and freeing up floorspace! 50ft of crush-resistant, static bonded hose is included with the system and can be coiled in the drum for storage and transport.

Additional hose lengths and splitters are also available for contractors with multiple flooring tools running simultaneously.


Horsepower 1HP
Voltage 110V
Recommended Breaker Size 15A
Amperage (Typical) 15.5A
Phase (Pre-Wired) 1-Phase
Frequency 60Hz
Power Connector NEMA 5-15 125V/15A
Power Cord Length 20 feet
Real CFM Rating 245 Actual CFM at 23" S.P.
Maximum Suction 70" WC
Noise Level 73 dBA @ 10 ft
Filter Type CleanStream HEPA
Filtration Efficiency 99.97% @ 0.3 microns
MERV Rating MERV 16 ±
Portable Yes
Remote Control Sold Separately
Remote Control Part # Item #ARS115200
Primary Build Materials Static Dissipative Polyethylene
Static Resistance Rating Static Dissipative
Color Black
Inlet Size 2-1/4" ID 2-1/2" OD
Width 25.5"
Depth 25.5"
Height 64.5"
Height to Center of Inlet 42.125"
Actual Weight 56 lbs
Contents Industrial Cyclonic HEPA Vacuum, Internal Pulse Filter Cleaner, Sander Cyclone Separator, Bin Level Indicator, Retrofit Sander Handle, Drum, Drum Dolly, 5x Liner Bags, Automatic Bag Holder System, Hose, 2x Hose Clamps, Hardware
Country of Manufacture United States
Warranty Information 1 Year Limited Warranty
Certifications Complete Assembly cETLus Certified for Indoor Use
Applicable Patents US Pat. #6833016, #RE40048, #8514090, Patent Pending
