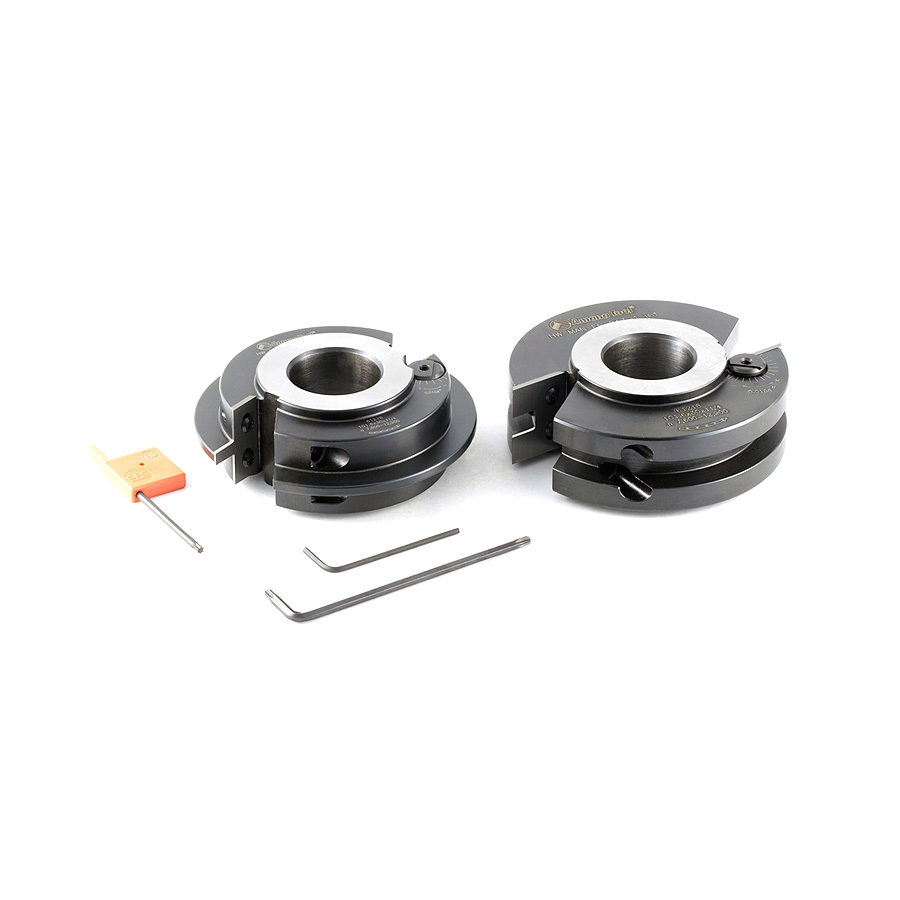

61218 2-Piece Insert Carbide Adjustable Tongue & Groove 4 Dia x 1-3/16 x 1-1/4 Bore Set
$457.13
Usually ships on the 2nd business day from order date.
Diameter (D) | 4 |
---|---|
(d) Bore | 1-1/4 |
(B) Cutting Height | 1-3/16 |
C | 3/8 |
D1 | 3-1/4 |
Optional Rub Collar | C-033 |
T | 4.7-7.9mm (3/16-5/16) |
Knives Screw | 67117 |
Replacement Knives | RCK-236 & RCK-238 |
Max Rpm | 12,900 |
Description
The perfect fix for undersized plywood flat panel “Mission Style, Arts & Crafts and Shaker” cabinet doors.
Set includes unique adjustment system and a gauge for precise settings.
- Designed to cut precise grooves to provide
undersized plywood veneered panels
with a snug, rattle-free fit. - For 5.5mm undersized 1/4″ plywood.
- For 5.9mm oversized 1/4″ veneered plywood.
- Adjust the panel groove width 3/16″ to 5/16″.
- Cut frame stock from 5/8″ through 1-3/16″ in thickness.
Specifications
(D) Diameter | 4 |
(d) Bore | 1-1/4 |
(B) Cutting Height | 1-3/16 |
C | 3/8 |
D1 | 3-1/4 |
Optional Rub Collar | C-033 |
T | 4.7-7.9mm (3/16-5/16) |
Knives Screw | 67117 |
Replacement Knives | RCK-236 & RCK-238 |
Max RPM | 12,900 |
