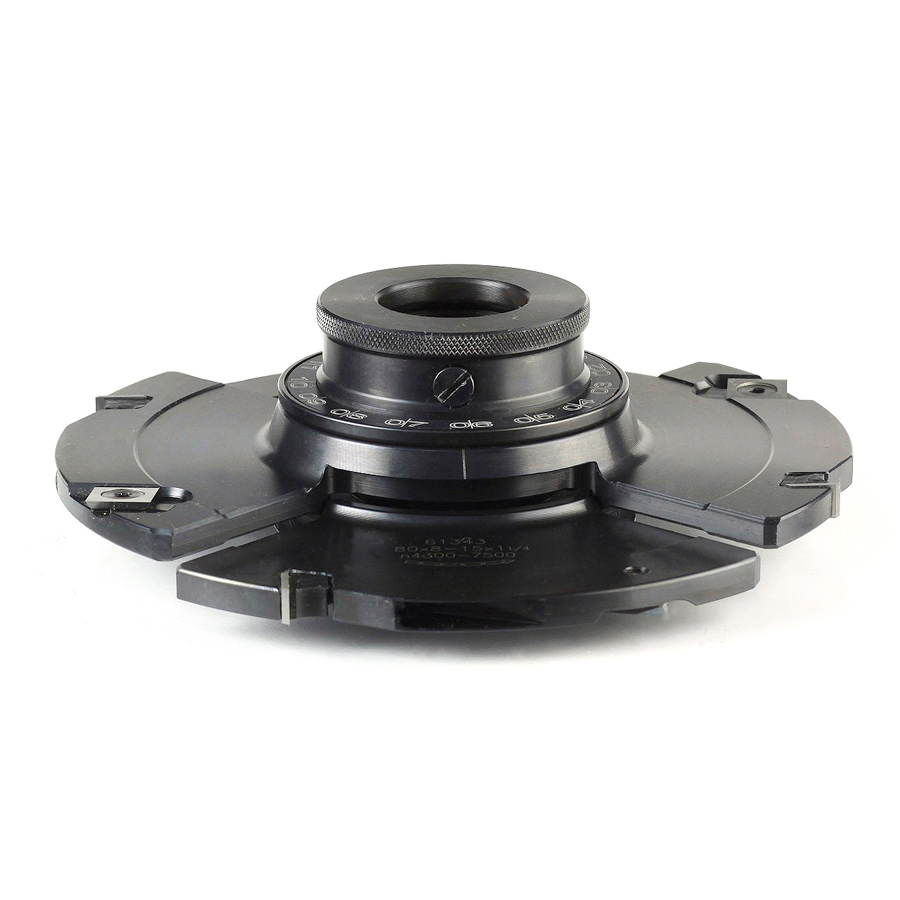

61343 Insert Carbide Adjustable Groove with Scorer & Ring Nut 180mm (7-1/16) Dia x 8 to 15mm (5/16 to 19/32) x 1-1/4 Bore

$598.07

Usually ships on the 2nd business day from order date.

Diameter (D)	180mm (7-1/16)
(d) Bore	1-1/4
(B) Cutting Height	8 to 15mm (5/16 to 19/32)
Max T	40mm (1-1/2)
RPM	4,800-7,500
Teeth	4+4
Replacement Knives	AMA-17, RCK-70

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

61343 Insert Carbide Adjustable Groove with Scorer & Ring Nut 180mm (7-1/16) Dia x 8 to 15mm (5/16 to 19/32) x 1-1/4 Bore quantity

+ Add to cart

UPC: 738685613436 SKU: 61343 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Insert Adjustable Grooving Cutter with Scorer, Grooving Insert Shaper Cutters, Shaper Cutters

Share:

Description

Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating) on a spindle molder. Cutting width can be adjusted in 0.1mm increments by special threaded bushing and scale without removing the cutter from the spindle.
