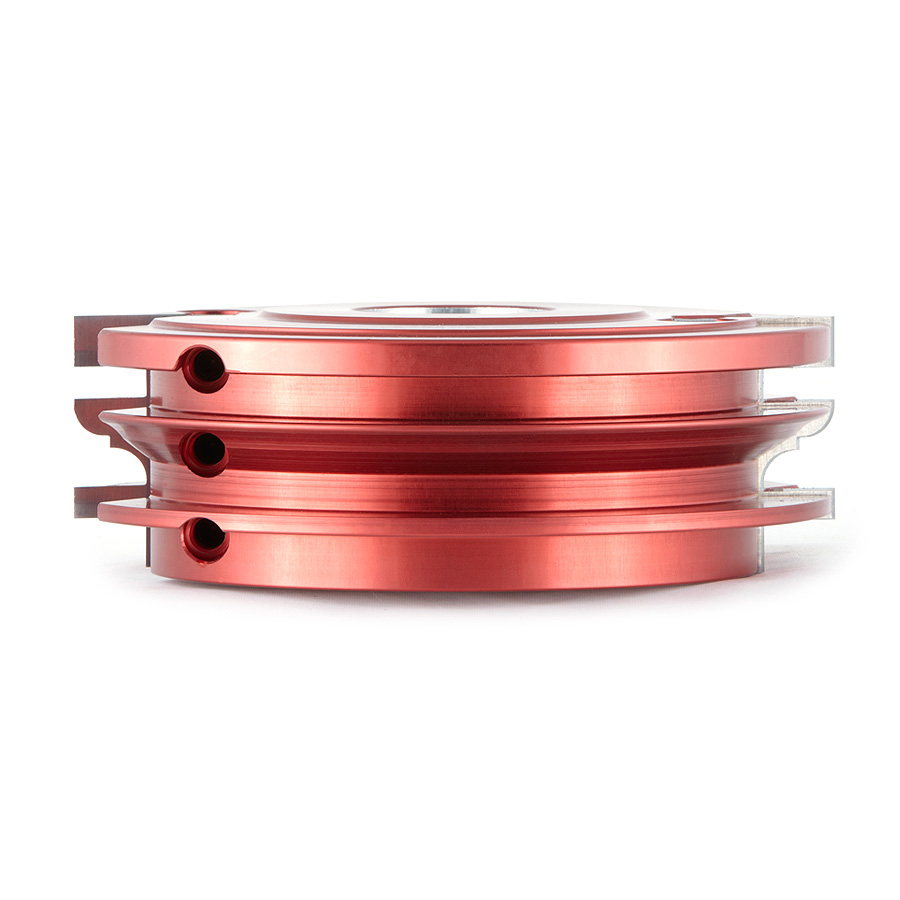

61273 Insert Carbide 2-Wing Stile & Rail 4-3/4 Dia x 1-1/2 x 1-1/4 Bore Profile #2 Steel

Name: 61273 Insert Carbide 2-Wing Stile &amp; Rail 4-3/4 Dia x 1-1/2 x 1-1/4 Bore Profile #2 Steel
SKU: 61273
Availability: InStock

$406.60

Usually ships on the 2nd business day from order date.

Diameter (D)	120mm (4-3/4)
(d) Bore	1-1/4
(B) Cutting Height	40mm (1-1/2)
Max T	11.8mm (15/32)
RPM	6,400-8,400
T	15/32
Teeth	2
Replacement Knives	RCK-64
Profile	2

UPC: 738685612736.0 SKU: 61273 Categories: Insert Shaper Cutters - Industrial Insert Carbide Shaper Cutters by Amana Tool, Insert Stile & Rail Shaper Cutters, Shaper Cutters, Door Making Insert Shaper Cutters

You will receive a courtesy discount of 5% if your cart exceeds $100

Description

Cutterhead in hard wearing aluminum alloy with one-sided tungsten carbide knives, utilizing the same knives for both stile and rail cuts by simply adjusting the spindle height of your shaper. Same tool body accepts all four different profiles. 3mm T-handle hex key included. To change profiles order individual knives separately. All patterns are designed for 7/8″ through 1″ thick materials.
