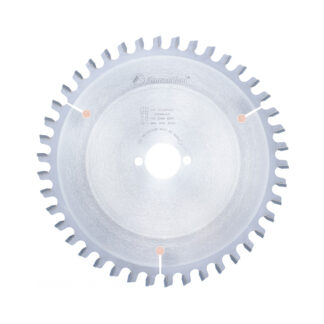

HG10483-30 Carbide Tipped Hollow Ground 10 Inch Dia x 48T HG, 10 Deg, 30mm Bore
$238.46
Usually ships on the 2nd business day from order date.
Diameter (D) | 10 (253mm) |
---|---|
Teeth | 48 |
(d) Bore | 30mm |
Tooth Grind | HG |
Hook Angle | 10° |
Kerf (B) | .126 (3.2mm) |
Pinholes | 2/7/42, 2/9/46 & 2/10/60 |
Plate (c) | .087 (2.2mm) |
Description
This specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that’s ground to a concave profile, produces crisp, clean cuts. The grind is commonly used in vertical panel saws, such as those made by Striebig® and Holz-Her®. The negative hook angle is particularly suitable for vertical panel saws.
Specifications
(D) Diameter | 10 (253mm) |
Teeth | 48 |
(d) Bore | 30mm |
Tooth Grind | HG |
Hook Angle | 10° |
Kerf (B) | .126 (3.2mm) |
Pinholes | 2/7/42, 2/9/46 & 2/10/60 |
Plate (C) | .087 (2.2mm) |
