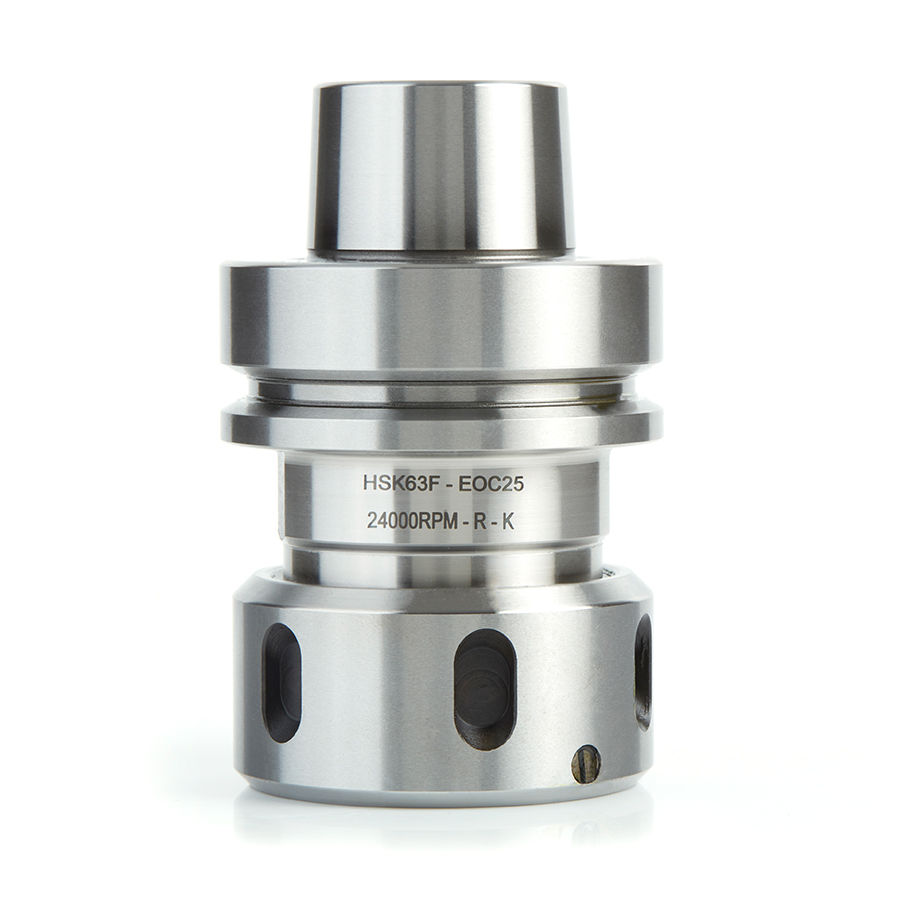

HO-138 60mm (2-3/8″) HSK63F Collet Chuck HSK type “F” Tool Holder for EOC25/SYOZ25

$297.86

Rotation LH/RH
Diameter (D) 60mm (2-3/8)
(B) Cutting Height 78mm (3-1/16)
Collet Standard EOC25/SYOZ25
D1 63mm (2-15/32)
Adapter Standard HSK63F

Description

Threaded nut DIN 6388. For Homag, Weeke, Anderson, CR Onsrud, IMA.

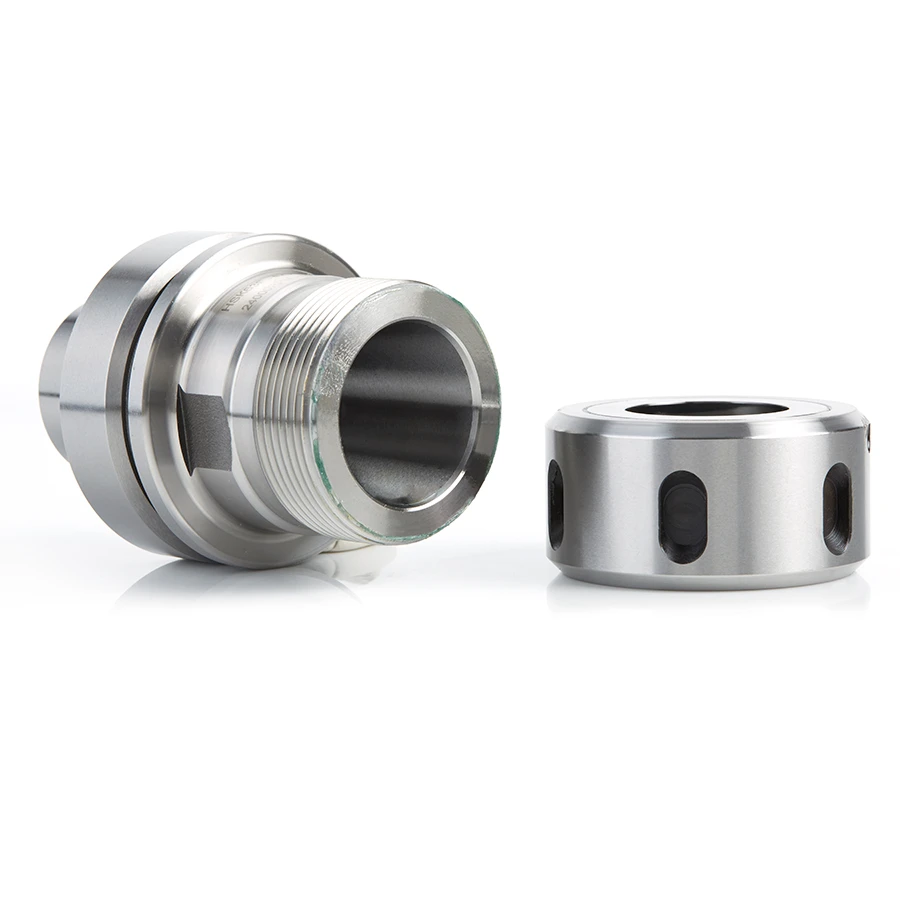

Complete holder with ball bearing nut for running both LH and RH rotation.

Specifications

Rotation LH/RH
Diameter (D) 60mm (2-3/8)
(B) Cutting Height 78mm (3-1/16)
Collet Standard EOC25/SYOZ25
D1 63mm (2-15/32)
Adapter Standard HSK63F
