HO-162 63mm (2-15/32″) Shrink Fit Chuck HSK-63F for 1/2″ Shank

$376.24

Rotation LH/RH

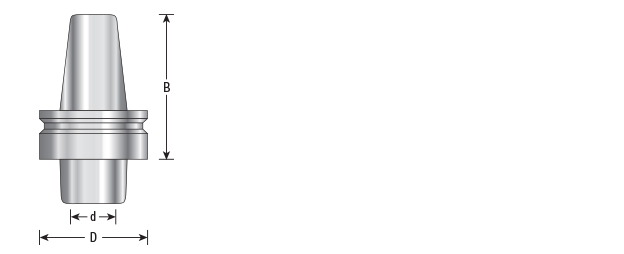

(D) Diameter 63mm (2-15/32)
(B) Cutting Height 76mm (3)
(d) Shank 1/2
Adapter Standard HSK63F

Description

• Best accuracy and precision
• Balanced to G2.5 at 24,000 RPM
• Concentricity ≤ 0.003mm
• Cutting tool shank must have tolerance h6 with cylindrical shank (no flats)

Specifications

Rotation LH/RH
(D) Diameter 63mm (2-15/32)
(B) Cutting Height 76mm (3)
(d) Shank 1/2
Adapter Standard HSK63F
