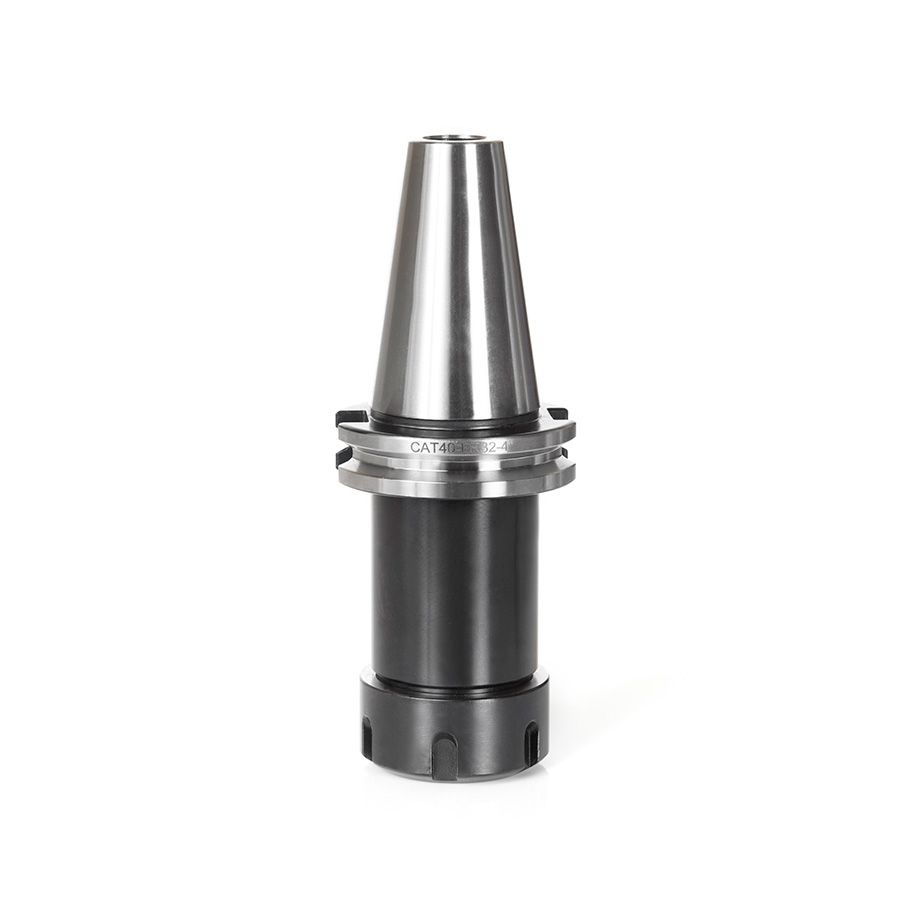

HO-220 CAT 40 High Precision ER Collet Chuck Tool Holder

$156.74

Thread 5/8 - 11
(D) Diameter 50mm
(B) Cutting Height 4.0"
Overall Length (L) 203.4mm
Collet Standard ER32
Adapter Standard CAT 40

Description

• Made from alloy steel hardened to 54 – 56rc
• Tool Holders Balanced to G2.5 at 25 000 RPMs
• Coolant thru capability
• Concentricity is less than .0002 at collet face
• Rear thread for pull stud is 5/8 – 11
• Spring collet not included

Specifications

Thread 5/8 - 11
(D) Diameter 50mm
(B) Cutting Height 4.0"
Overall Length (L) 203.4mm
Collet Standard ER32
Adapter Standard CAT 40
