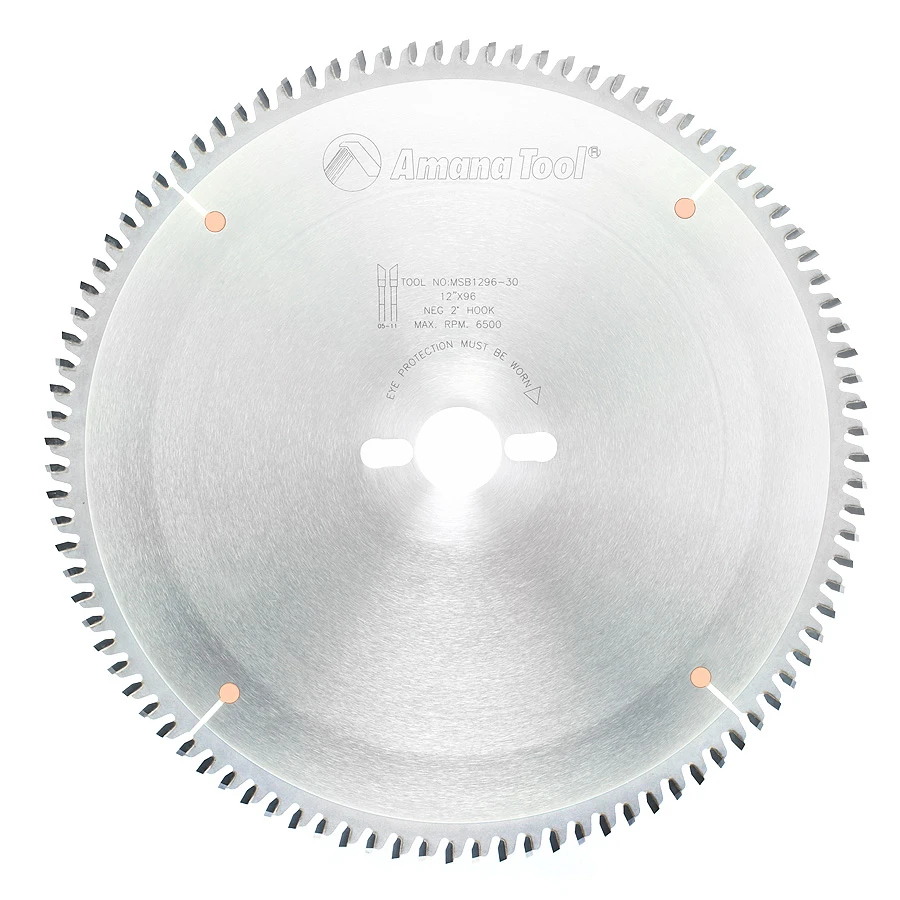

MSB1296-30 Carbide Tipped Double-Face Melamine 12 Inch Dia x 96T H-ATB, -2 Deg, 30mm Bore
$272.86
| Diameter (D) | 12 (300mm) |
|---|---|
| Teeth | 96 |
| (d) Bore | 30mm |
| Tooth Grind | H-ATB |
| Kerf (B) | .118 (3.0mm) |
| Pinholes | 2/7/42, 2/9/46 & 2/10/60 |
| Plate (c) | .087 (2.2mm) |
Description
Alterations to the geometry and plate thickness provide improved results in certain melamine boards. The bevel angle of the ATB grind is far more acute (35°), and the plate is thinner than our standard melamine blades.
Specifications
| (D) Diameter | 12 (300mm) |
| Teeth | 96 |
| (d) Bore | 30mm |
| Tooth Grind | H-ATB |
| Hook Angle | -2° |
| Kerf (B) | .118 (3.0mm) |
| Plate (C) | 087 (2.2mm) |
