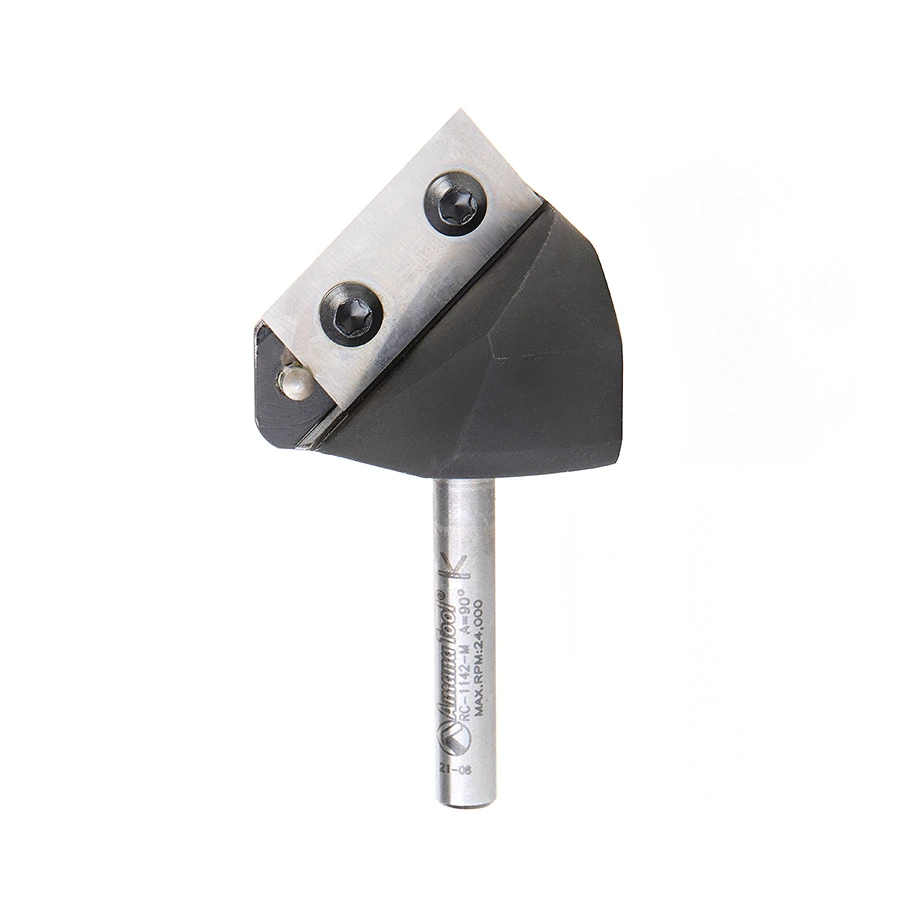

RC-1142-M Insert V-Groove 90 Deg x 39mm Dia 20mm x 6mm Shank CNC Router Bit


Attention: When using on small, hobby type CNC machines, set RPM to 12,000 RPM with 30% slower feed rate.
The innovative CNC tool design uses the highest grade carbide insert knife which allows you to get two uses out of each insert. Once the knife shows signs of wear you can rotate the insert for a brand new cutting edge. These industrial V-Groove insert router bits were especially designed for applications including:

Miter folds – “create the perfect joint”
Signmaking and lettering

Excellent for cutting:

Aluminum, Brass, Bronze, Copper, Gold, Silver & Carbon Fiber (Engraving Only)
Composite Decking
Epoxy (Epoxy Resins)
High Density Polyethylene (HDPE)

Sign Board
Solid Surface
Veneered Plywood
Xanita® Board*
20lbs High Density Urethane

*When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.Advantages of Insert Tooling:

Long lasting insert knives provide superior smooth quality cuts every time
Quick and precise replacements of dull knives
Due to insert accuracy tool life is extended
Insert tooling allows for harder grades of carbide
Special carbide grades for special applications
Cost effective solution compared to replacing brazed router bits

Secure locking screw system ensures maximum safety and maintains cutting accuracy. CNC router requires quality hold downs to ensure the least possibility of material shifting during operation.
Warning: Before using any insert tool, make sure the set screw is tightened firmly. When replacing a dull insert, first clean the tool and remove all dust prior to inserting the new knife.

Vectric and Fusion 360 compatible tool files for RC-1142 available for download, click here.

Usually ships on the 2nd business day from order date.
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
SKU: RC-1142-M Category:


When working with Xanita LightBoard panel (X-board® X-board® plus) we recommend using MDF knives for better results.
