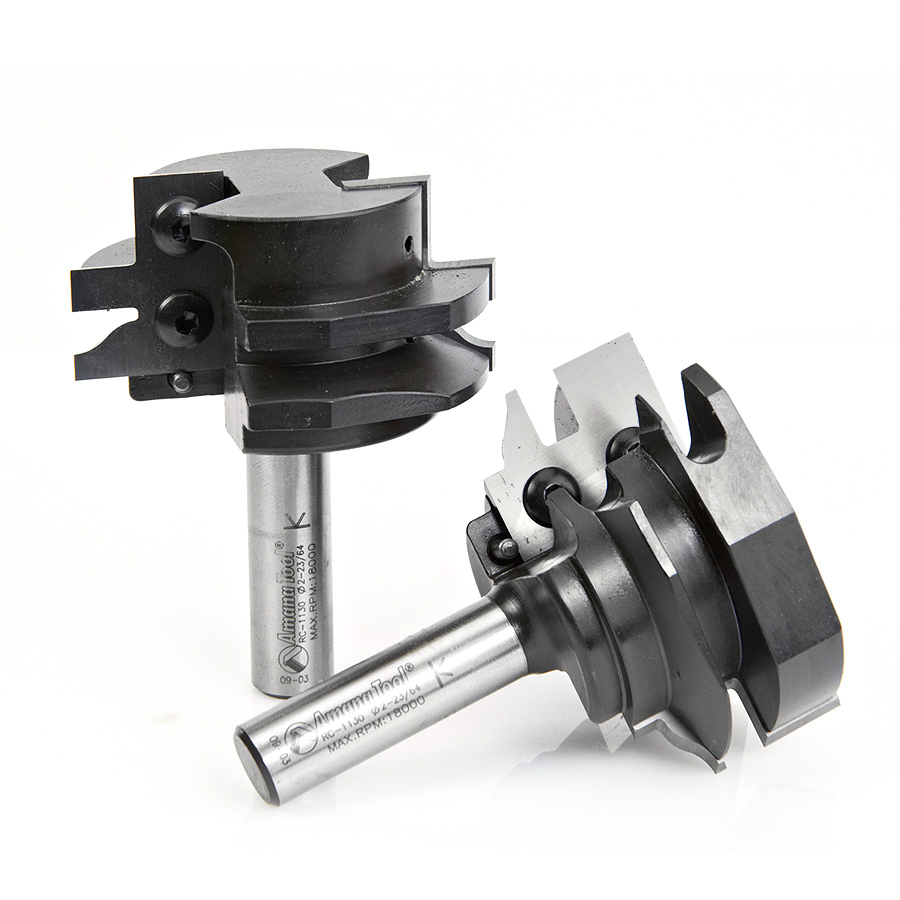

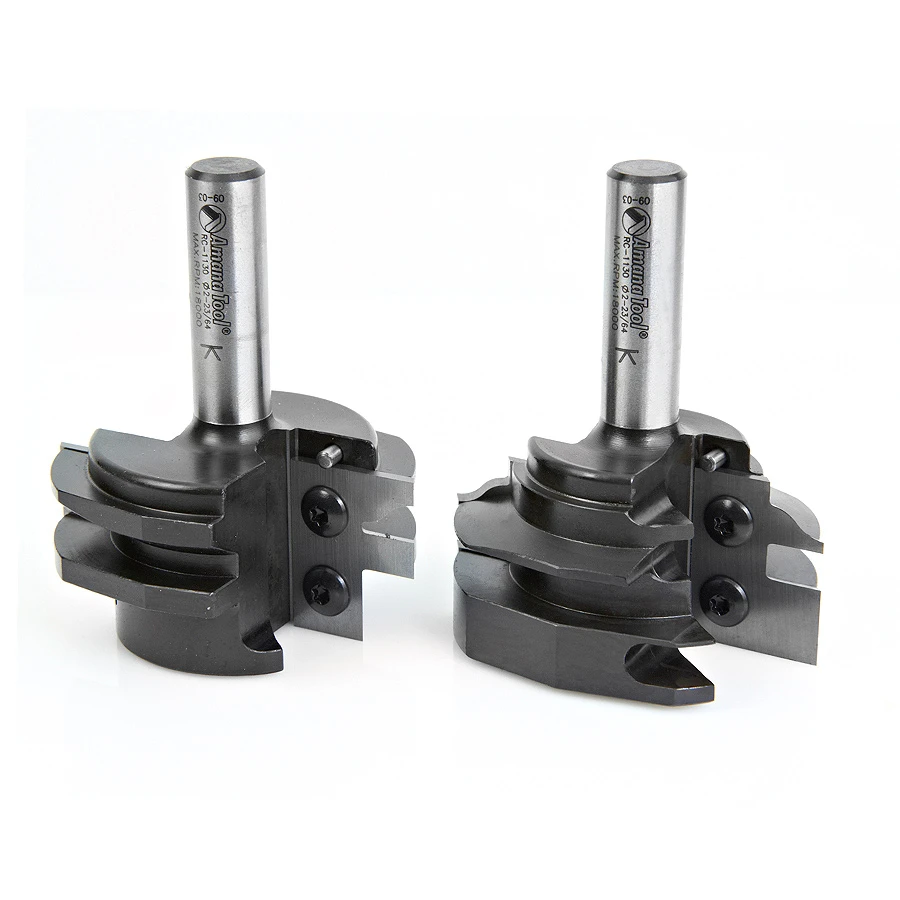

RC-1130 CNC Insert Stile & Rail 2-5/8 Dia x 1-11/64 x 1/2 Inch Shank
$564.35
Usually ships on the 2nd business day from order date.

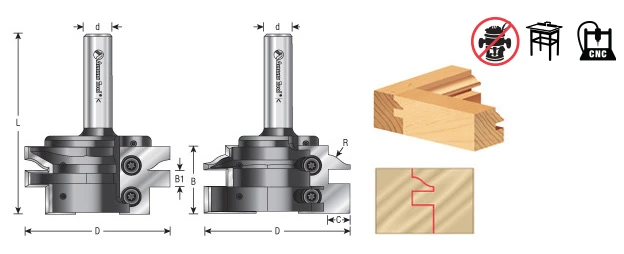

Diameter (D) | 2-5/8 |
---|---|
Radius (R) | 1/4 |
(B) Cutting Height | 1-11/64 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/8 |
B1 | 1/4 |
Max Rpm | 18,000 |
C | 3/8 |
Description
Our stile and rail sets give you two complete bits, one for doing the rail cuts and one for the stiles. Make cabinet doors and all varieties of frame-and-panel assemblies for furniture and architectural applications.
Set comes with Ogee Knives installed (RCK-215 & RCK-216).
Specifications
Diameter (D) | 2-5/8 |
Radius (R) | 1/4 |
(B) Cutting Height | 1-11/34 |
Shank (d) | 1/2 |
Overall Length (L) | 3-1/2 |
B1 | 1/4 |
Max RPM | 18,0000 |
C | 3/8 |
