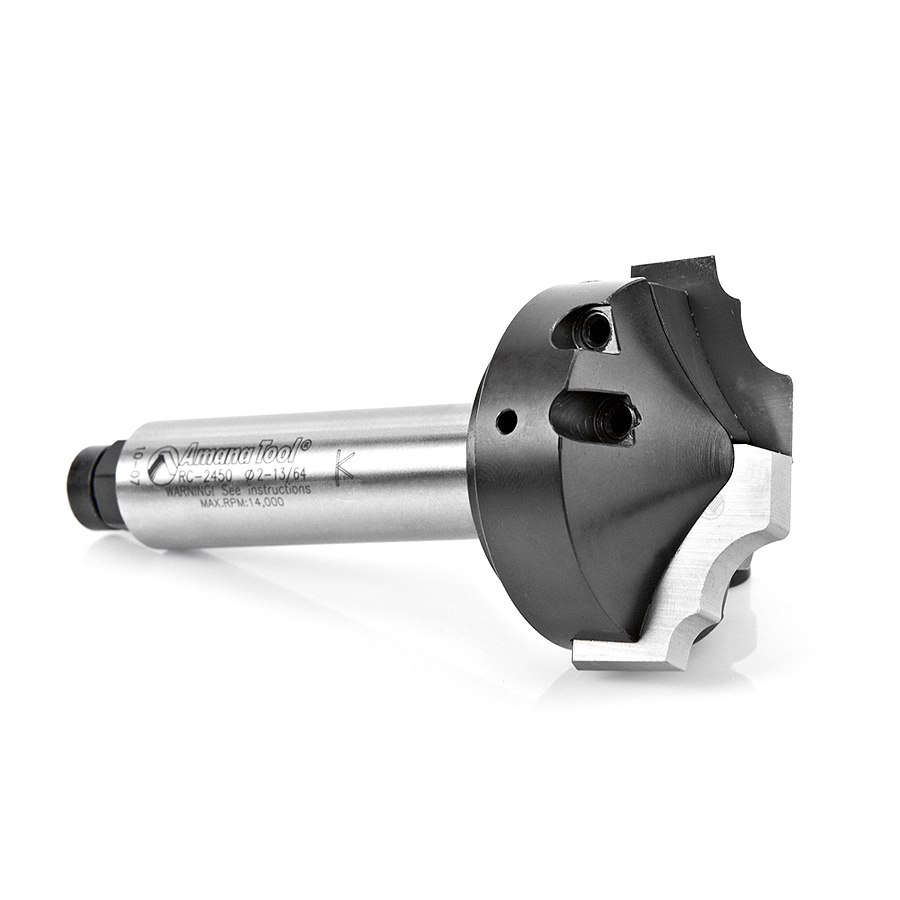

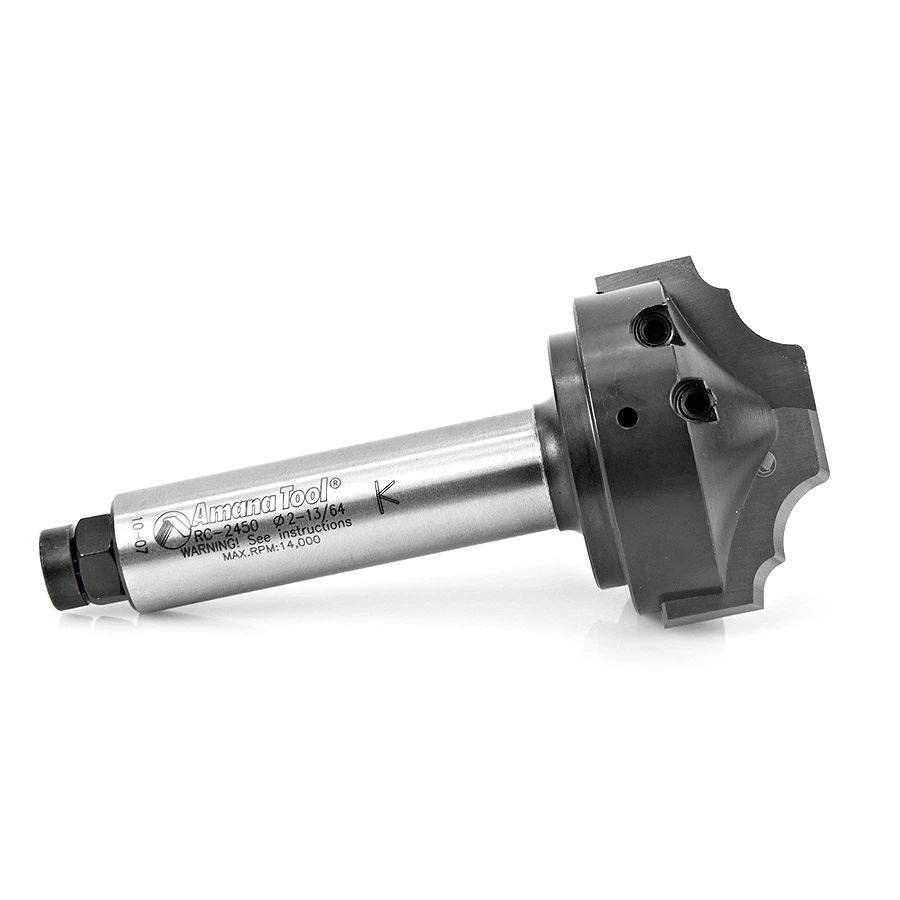

RC-2450 CNC Insert Multi Profile Step 1 for MDF Cabinet Doors 56mm Dia x 25 mm x 3/4 Shank
$314.87
Usually ships on the 2nd business day from order date.
| (D) Diameter | 56mm(2-1/4) |
|---|---|
| (B) Cutting Height | 25mm(1) |
| (d) Shank | 3/4 |
| Overall Length (L) | 109mm(4-5/16) |
| Type | Step 1 |
Description
W = width of the frame.
H = maximum depth of the frame.
The dimension W determines the frame width.
The dimension H determines the profile depth.
In the example shown W = 50 and H = 13.
Any change in the dimensions of the frame width and depth should be done according to the formula that is written on each tool drawing.
Excellent For:
- MDF
- Wood
Specifications
| (D) Diameter | 56mm(2-1/4) |
| (B) Cutting Height | 25mm(1) |
| (d) Shank | 3/4 |
| Overall Length (L) | 109mm(4-5/16) |
| Type | Step 1 |
