RC-2486 CNC Insert Nova System Traditional Raised Panel for MDF & Wood Cabinet Doors 1-11/32 Dia x 21/64 x 1/2 Inch Shank
$232.09
Usually ships on the 2nd business day from order date.

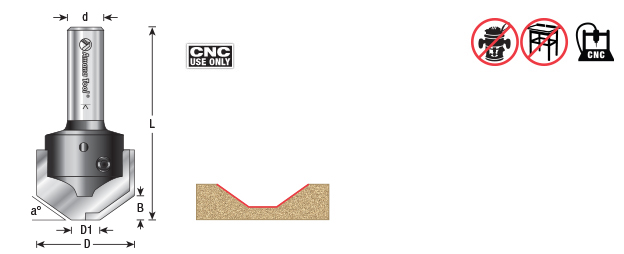

Diameter (D) | 1-11/32 |
---|---|
(a°) Angle | 35° |
(B) Cutting Height | 21/64 |
Shank (d) | 1/2 |
Overall Length (L) | 2-5/8 |
Style | Traditional |
Replacement Knives | RCK-486 |
Type | Raised Panel |
D1 | 25/64 |
Description

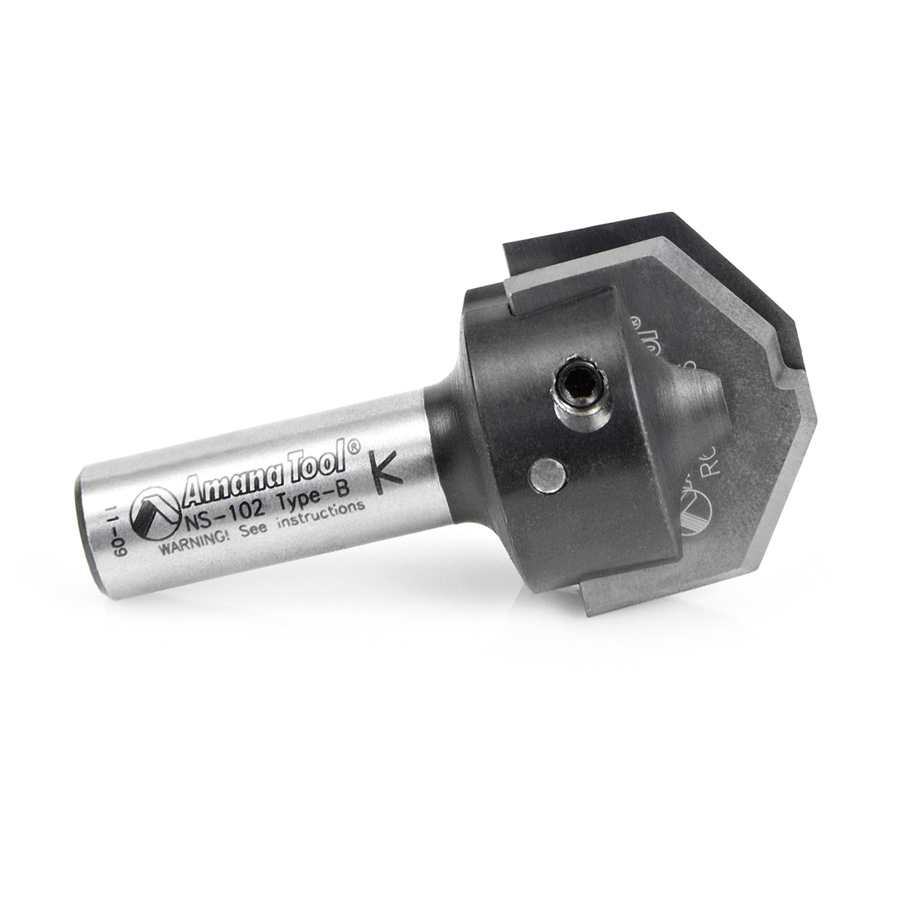

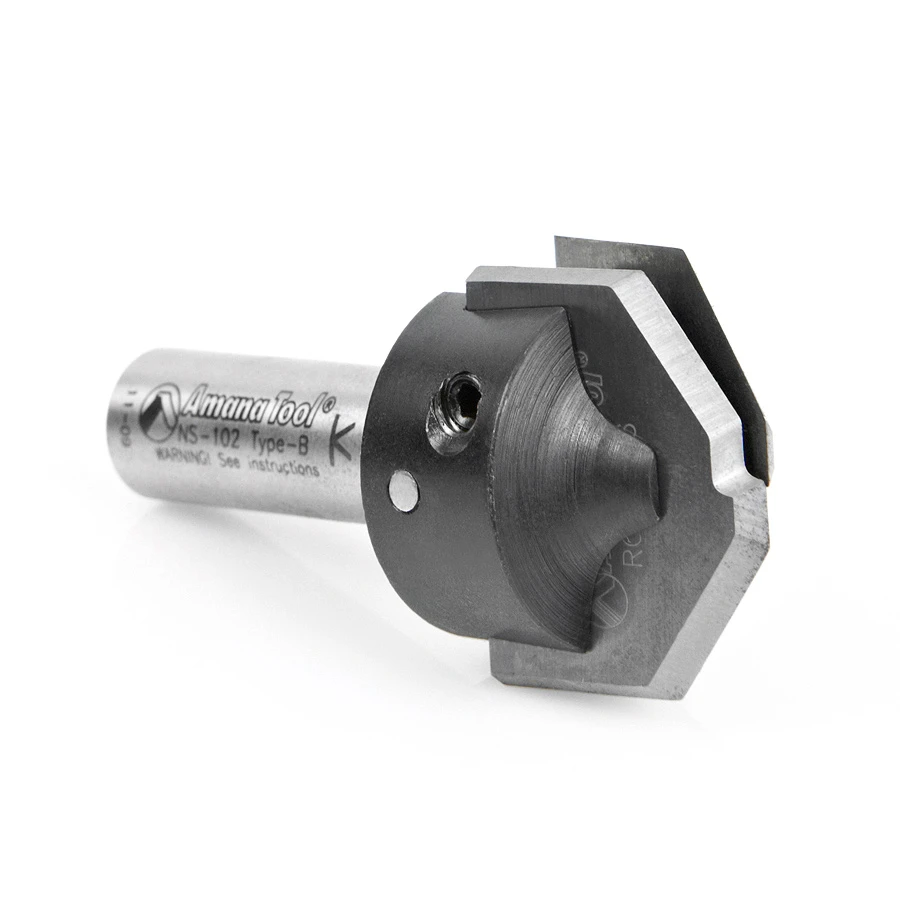

This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.
One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.
Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.
Excellent For:
- MDF
- Wood
Specifications
Diameter (D) | 1-11/32 |
(a°) Angle | 35° |
(B) Cutting Height | 21/64 |
Shank (d) | 1/2 |
Overall Length (L) | 2-5/8 |
Style | Traditional |
Replacement Knives | RCK-486 |
Type | Raised Panel |
D1 | 25/64 |
