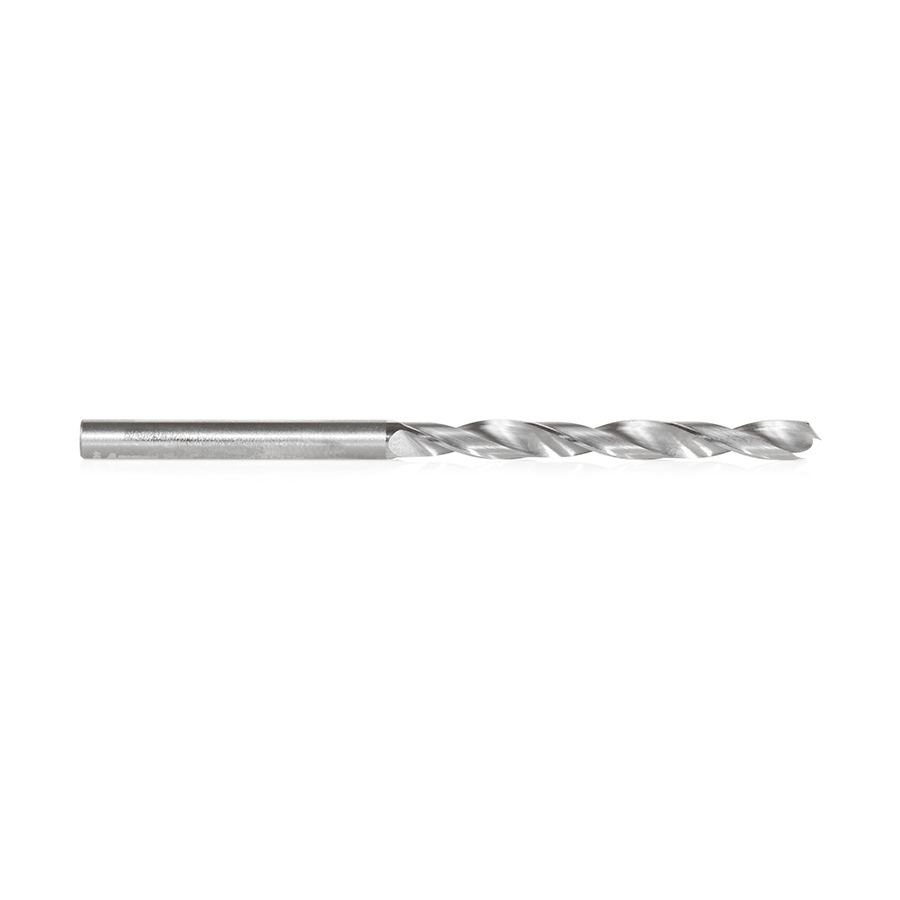

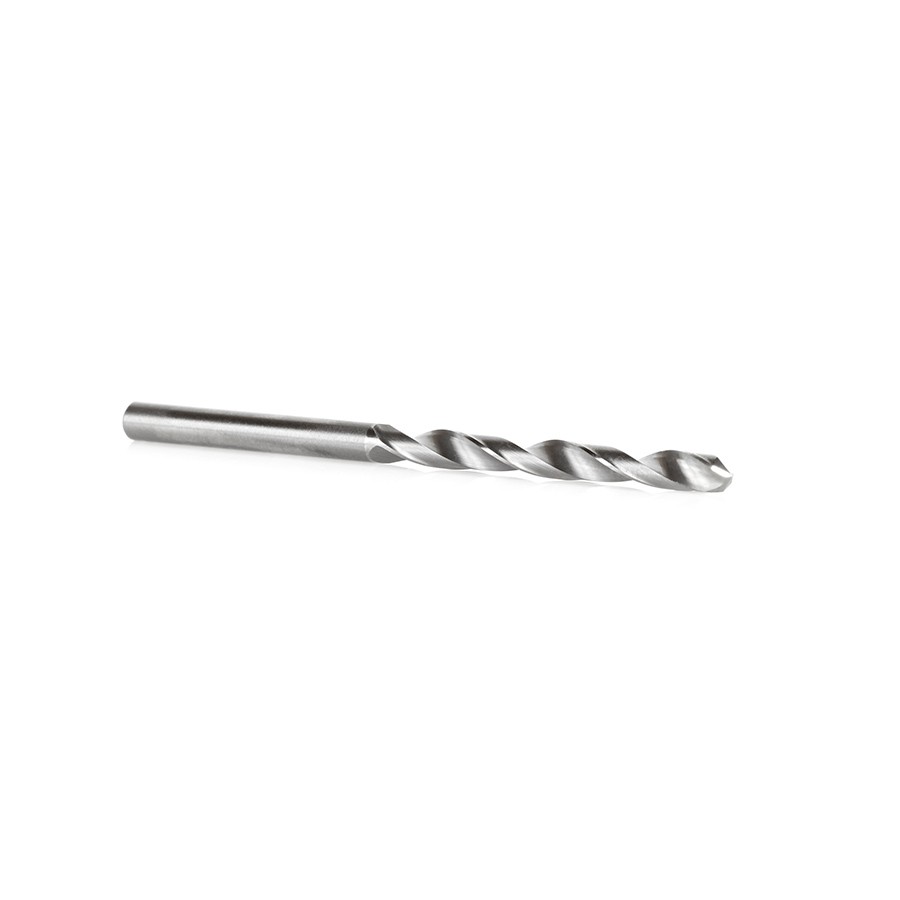

SCFD-100 Solid Carbide CNC 4 Facet 118 Deg Drill Point 1/8 Dia x 1-1/4 x 1/8 Shank x 2-1/4 Inch Long

$20.27

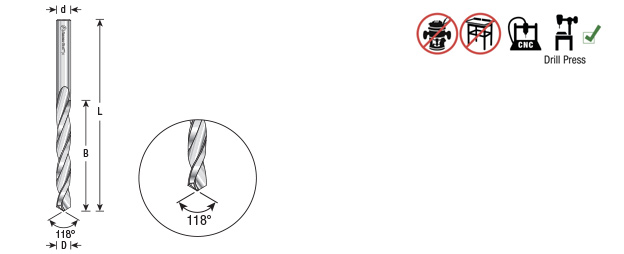

(B) Cutting Height 1-1/4
Diameter (D) 1/8 (0.125)
Shank (d) 1/8
Overall Length (L) 2-1/4

Description

Amana Tool’s 4 facet jobber length fractional drills consist of 2 cutting edges with 2 facets per cutting edge. The facets consist of the lip relief and the lip clearance angle.

Multi-faceted drill geometries translate into improved centering accuracy, thereby producing rounder, precise holes less likely for “bell mouthing.” Our premium grade carbide substrate insures increased tool life by a minimum factor of 10X’s over HSS coated bits, all while often eliminating the need for a prior center punch or spotting procedure. Also good for drill press.

Excellent for:

  • Aluminum
  • Aluminum 5052
  • Aluminum Alloys
  • Aluminum Alloyed Si > 10%
  • ACM
  • Brass
  • Bronze
  • Copper
  • Copper Alloys
  • Fomex® with Aluminum Face
  • Steels
  • Tool Steels
  • Free Machining Stainless Steels
  • Soft Cast Irons
  • Medium Cast Irons
  • Malleable Cast Irons
  • Magnesium
  • Nickel Alloys
  • Low Carbon Steels
  • Medium Carbon Steels
  • High Tensile (35-45 Rc) Steels
  • High Tensile (45+ Rc) Steels
  • Soft Titanium
  • Titanium Alloys Hard Titanium

More sizes and types (Letter, Number & Metric) available upon request.

Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits.

(B) Cutting Height 1-1/4
Diameter (D) 1/8(0.125)
Shank (d) 1/8
Overall Length (L) 2-1/4
