110V Mini-Gorilla Portable Cyclone Dust Collector

Industrial 115V (20A) U.S. made fan motor provides ample CFM for any single tool with a 4″-6″ dust port.
High efficiency cyclone (over 99% separation) with smooth, compound molded surface.
Rated as one of the Top Tools of 2017 by Fine Woodworking Magazine.
22-gallon mobile, drop-down, dust bin with automatic bag holder and fill level viewing window.
HEPA-certified filter media with non-stick membrane and vacuum hose port for easy cleaning.
Highly mobile and compact footprint ideal for smaller workshops with limited space.

Usually ships in 2-4 weeks

SKU: XXPM010100H Categories: Dust collectors, Personal Collection Systems

Inquire Now

Description

Portable, Powerful, & Perfectly Designed

The Mini-Gorilla® Cyclone Dust Collector is one of Oneida Air Systems’ best designed products to date! Designed specifically for smaller workshops where the collector is moved from tool to tool, our Mini-Gorilla combines the quality and performance of a commercial system with the features and convenience of personal home units. Built to last a lifetime using industrial-grade materials, this portable system comes packed with new innovative features that have already earned it recognition as one of the best portable units on the market.

Recommended for tools with 4″ to 6″ dust collection ports, including lathes, jointers, shapers, planers, table saws, router tables, disc sanders, drum sanders, belt sanders, and more! Browse our selection of dust hoods to maximize your performance with open air tools such as lathes and sanders.

Innovative Benefits & Features

1.5HP 110V (20A) Industrial U.S. Made Fan Blower Motor
Integrated High-Efficiency Cyclone Separator with 5″ Inlet
HEPA-Certified Filter Media with Easy-Clean Port
Compact, Steel Mobility Stand with Locking, Non-Marking Casters
22-Gallon Drop-Down Waste Container with Casters and Viewing Window
Automatic Bag Holder System (2 Free Bags Included)

Feature

Continuously High Airflow Performance

Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That’s why Oneida Air uses only the highest quality motors with our dust collection systems. Far superior to the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.

High-efficiency U.S. motor custom-tooled for Oneida Air Systems
Delivers up to 600 Actual CFM – ample airflow for any woodworking tool
Industrial-grade brushless motor designed for continuous duty
Low pitch noise level provides ideal operator comfort

Streamlined Integrated Cyclone Separator

One of the four tenets of good dust collection is using a cyclone to remove waste from the incoming air. Once you’ve experienced the benefits of cyclonic separation, there’s no turning back!

Separates up to 99% of bulk debris and fine dusts from the airstream, containing it safely in the dust bin
Significantly extends the lifespan of the filter and reduces time needed for filter cleaning
Uniquely tall cyclone design maximizes particle separation performance
Neutral-vane inlet and integrated air ramp minimizes inbound air turbulence

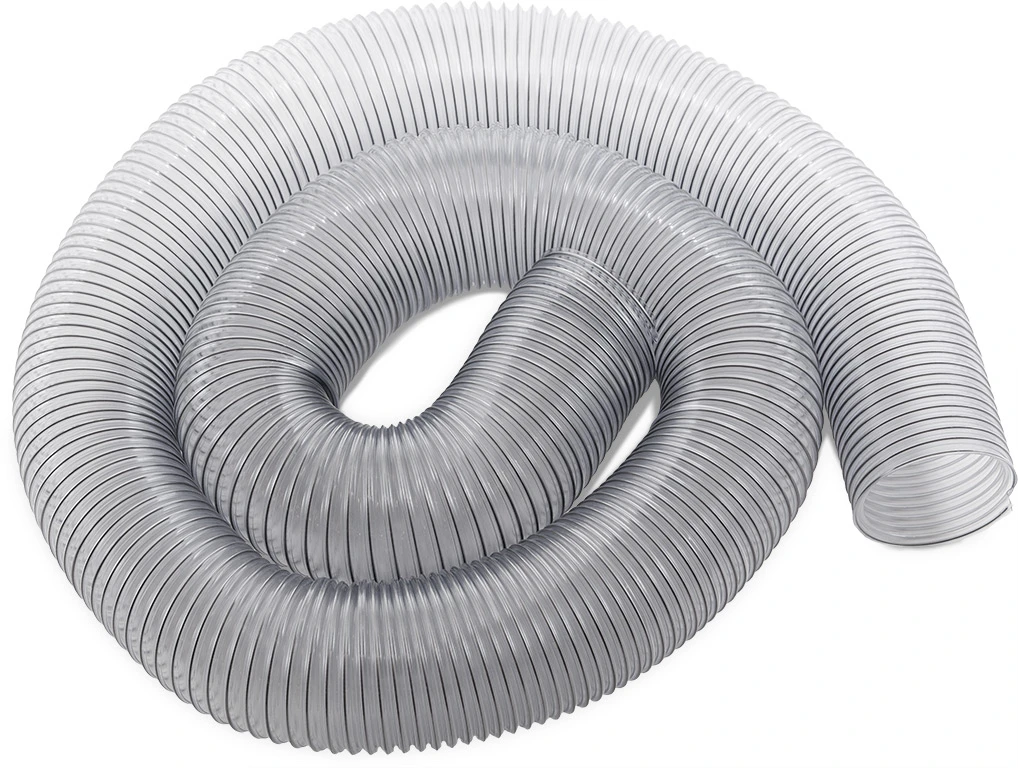

Ideal for direct flex hose connections to tools

High Quality & Serviceable Filtration

The Mini-Gorilla system uses HEPA-certified filter media specifically designed for dust collection applications – providing unbeatable airflow and filtration performance.

HEPA-certified filter media rated as 99.97% efficient at 0.3 microns
3rd party tested and verified by an accredited independent lab
Requires zero pre-loading; works at peak efficiency right out of the box and after every cleaning
Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance
Vacuum hose port lets you clean fine dusts released from the filter without disassembling the system
Durable fiber construction and wire cage reinforcement maximizes longevity
Equipped with patented Flame Guard™ arrestor to satisfy future planned fire safety codes

Lightweight, Compact, and Highly Mobile Design

We’ve optimized this system for smaller workspaces where the dust collector from tool to tool so we’ve molded the cyclone, fan housing, filter plenum, and the drum from an industrial static dissipative resin.

30% lighter than the nearest competitor system – only 85 lbs.
Small footprint and low height saves valuable space within the shop
Mobile tripod stand provides maximum stability and easy access for movement
Large 3″ locking casters roll easily over obstacles and won’t scuff your floors

Easy-to-Handle Large Capacity Dust Container

The waste container of the Mini-Gorilla is a highly reinforced, lightweight, 22-gallon drum with non-marking casters. Easy to dettach and empty, the Mini-Gorilla’s drop-down dust bin lets you work with maximum efficiency.

Large 22-Gallon capacity provides enough storage for hours of work
Dust level viewing window lets you see when the drum is getting full
Three quick-release latches lift the drum off the ground while system is in use for higher mobility

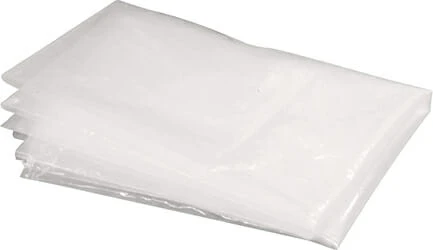

Automatic bag holder lets you put disposal liner bags within the bin for quick and easy waste disposal
Features three free swiveling caster wheels and easy-carry handles for dumping

Specifications

Horsepower	1.5HP
Motor Type	U.S. TEFC Motor
Motor Service Factor	1.15
Voltage	115V
Recommended Breaker Size	20A HACR Style
Amperage (Typical)	16A
Phase (Pre-Wired)	1-Phase
Frequency	60Hz
Power Connector
Power Cord Length	20 feet
Impeller Type	Single-piece, backward inclined, non-sparking/non-ferrous, composite resin.
Impeller Size	13" Dia.
Real CFM Rating	583 Actual CFM at 2" S.P.
Maximum Suction	9" WC
Noise Level	80.5 dBA @ 10 ft
Filter Type	G.E. H12 HEPA Media
Filtration Efficiency	99.97% @ 0.3 microns
MERV Rating	MERV 16 ±
Total Filtration Area	40 sq ft
Portable	Item #ARS115200
Primary Build Materials	Static Dissipative Polyethylene
Static Resistance Rating	Static Dissipative
Color	Black
Inlet Size	5" OD
Width	28"
Depth	24.75"
Height	64.25"
Height to Center of Inlet	43"
Actual Weight	85 lbs
Contents	Blower Motor Assembly, Single-piece Fan Housing/Filter Plenum/Cyclone Separator, Stand, 3x Wheels, Drum, 3x Drum Casters, 2x Liner Bags, Viewing Window, FlameGuard Cartridge Filter w/ Clean Port, Hardware
Country of Manufacture	United States
Warranty Information	1 Year Limited Warranty
Certifications	Complete Assembly cETLus Certified for Indoor Use
Applicable Patents	US Pat. #7824457, #D604464, #8496719, #8377160, #8491686
