20HP Direct Drive Cyclone Dust Collector

Usually ships in 2-4 weeks

SKU: XXK200300 Categories: Dust collectors, Industrial Collection Systems

Inquire Now

Description

Realize the Power of American Manufacturing

Our 20HP Direct Drive system provides powerful airflow within a compact, quiet, and cost-effective package. With its high-efficiency cyclone separator you can expect continuously high suction performance and minimal filter maintenance.

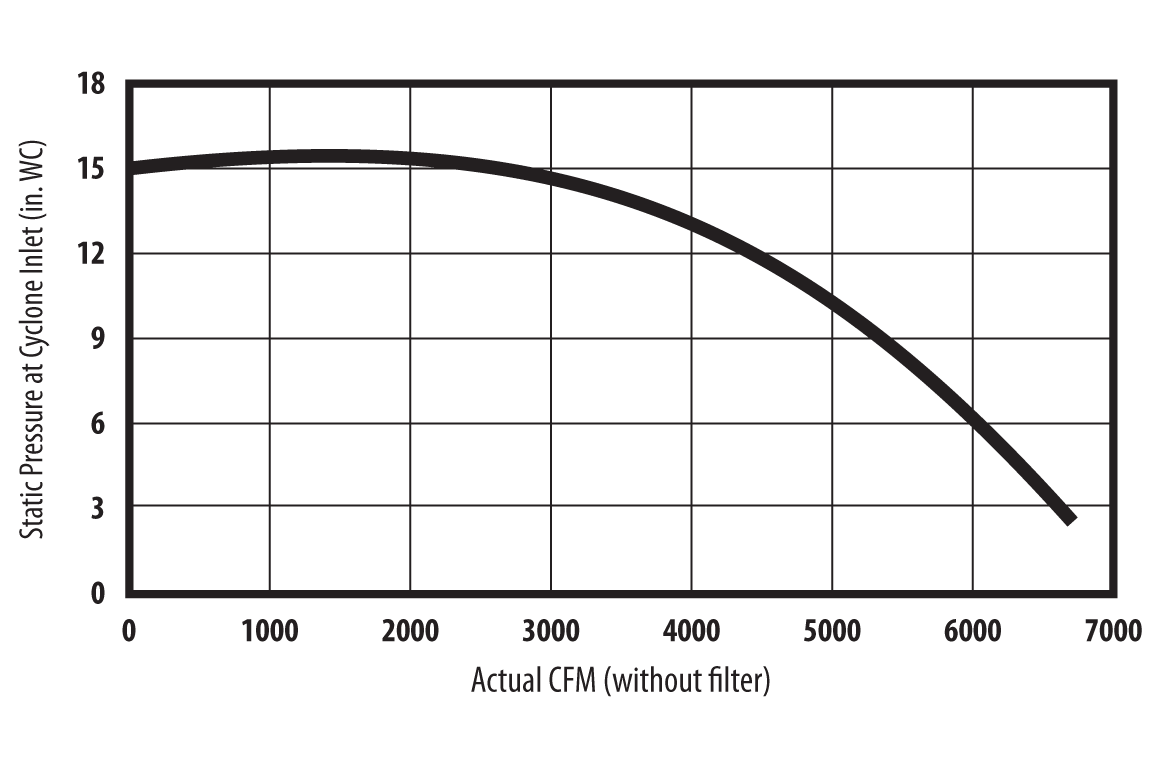

Made in the USA with long lasting heavy-gauge steel components, our 20HP is ideal for fixed ductwork where multiple tools are in use simultaneously. With its typical operating range delivering 3-11″ of static pressure (see fan curve) this system is particularly suited for CNC equipment requiring multiple open ports as well as other high pressure applications.

Learn how our Direct Drive systems helped U.S. manufacturer Trimjoist to dramatically improve their dust collection and energy savings.

Included Features & Components

Industrial 20HP U.S. Made Motor
Integral Fan Blower with Carbon Steel Impeller
Magnetic Starter w/ Overload Protector
Heavy-Gauge Solid Welded Steel Cyclone Separator
High-Efficiency Modular Cartridge Filters
Real-time Filter Efficiency Gauge
Internal Foam Silencer
Robust Angle Iron Frame Stand
Dual 55-Gallon Reinforced Steel Dust Bins
D.I.Y. Ductwork Design Guide
2 Year Limited Warranty

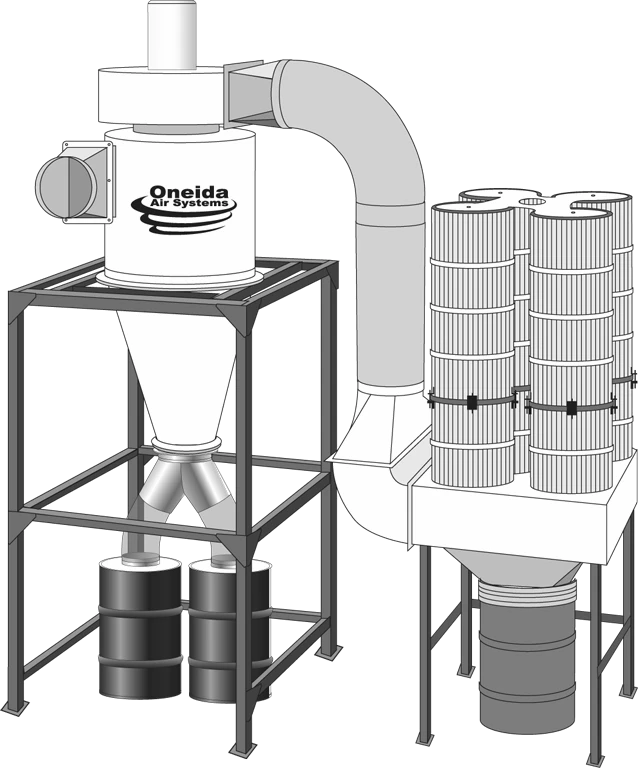

20-hp-direct-drive-features-diagram-1

Feature

Continuously High Airflow Performance

Your dust collector should perform at peak efficiency at all times to ensure the health, safety, and quality of your work. That’s why Oneida Air Systems uses only the highest quality motors with our dust collection systems. Far superior to the cheap, foreign imported motors used by other manufacturers, our industrial-grade motors are built to last a lifetime.

High-efficiency, fan blower motor – Made in USA.
Industrial-grade brushless motor designed for continuous duty.
Wired for three phase power for commercial applications.
Includes grease fittings for easy maintenance or taken to local U.S. service centers.
Delivers up to 6,000 Actual CFM at 2.33″ S.P. – ample airflow for multiple woodworking tools at once.
Low pitch noise level provides ideal operator comfort.
System’s inlet and outlet rotate independently at 45 degree increments to suit your shop’s needs.
Heavy-gauge steel fan housing, full seam welded, built to last a lifetime.

c-3500-cyclone-separator-powder-coated-2

Ultra-High Efficiency Steel Cyclone Separator

Features Oneida Air Systems’ unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.

Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
Rectangular, neutral-vane inlet with 14″ dia. square to round adapter.
Industrial 16 gauge steel construction with full welded, airtight seams.
Durable, rust preventative, almond-white powder coat finish.

High Quality & Serviceable Filtration

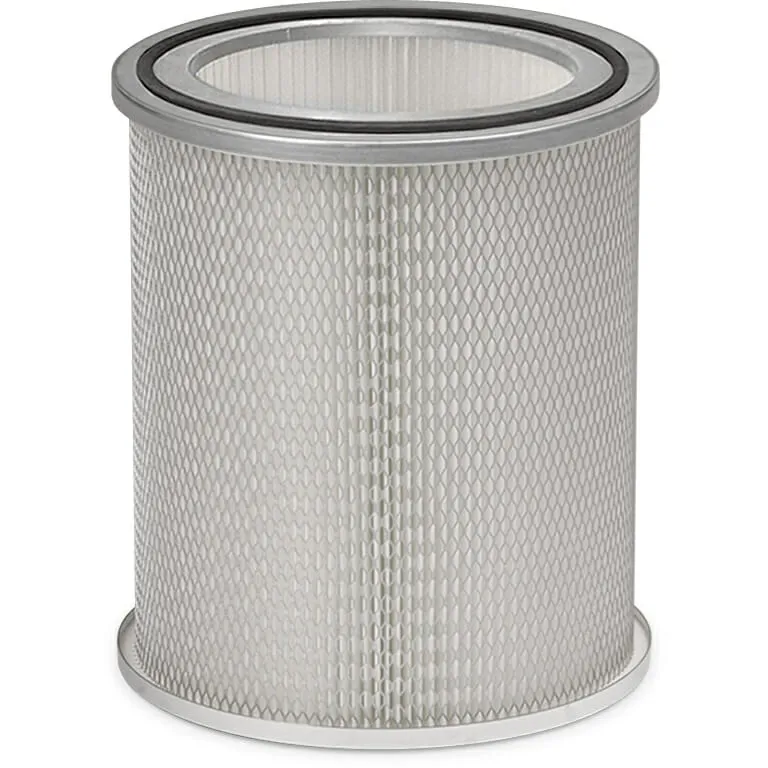

Our industrial Direct Drive systems use spunbond polyester cartridge filters that are specifically designed for dust collection applications – providing unbeatable airflow and filtration performance – and are proudly made in the USA!

Oneida Air fully stands by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
Wide-spaced pleating and non-stick PTFE membrane coating facilitates quick and easy maintenance.

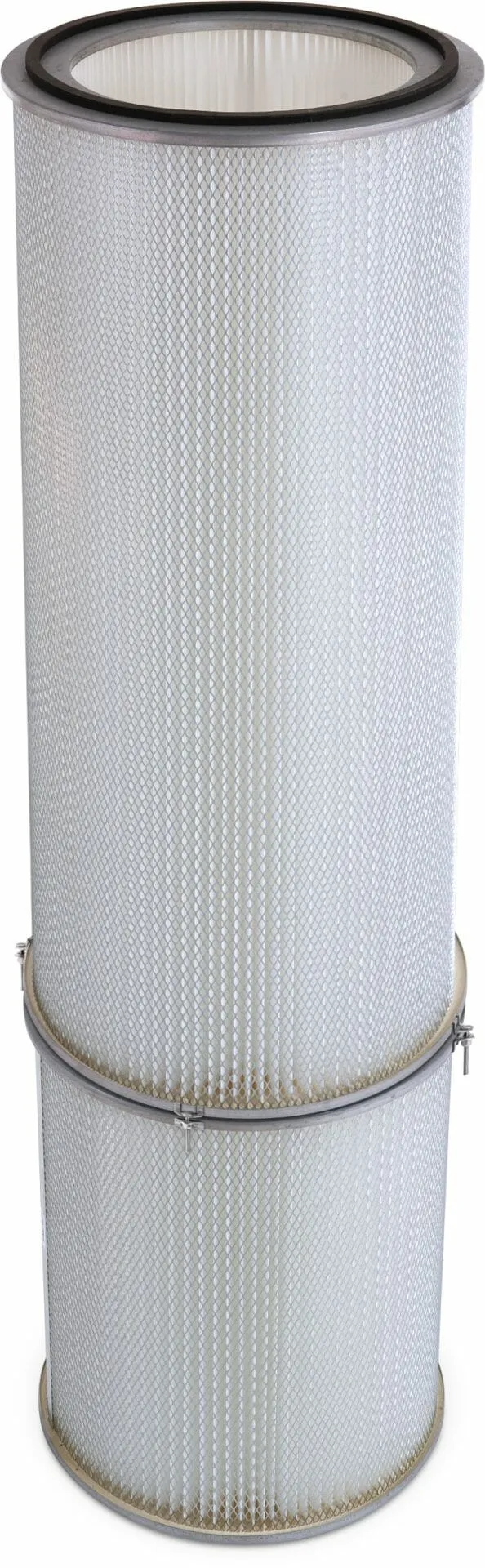

Patented filter stacking system provides the filtration area of a single larger filter, but without the cumbersome weight and install, and provides additional savings when replacements are required.
Patented internal acoustic foam reduces noise caused by vibrating outgoing air by 1–2 dBa.
Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.

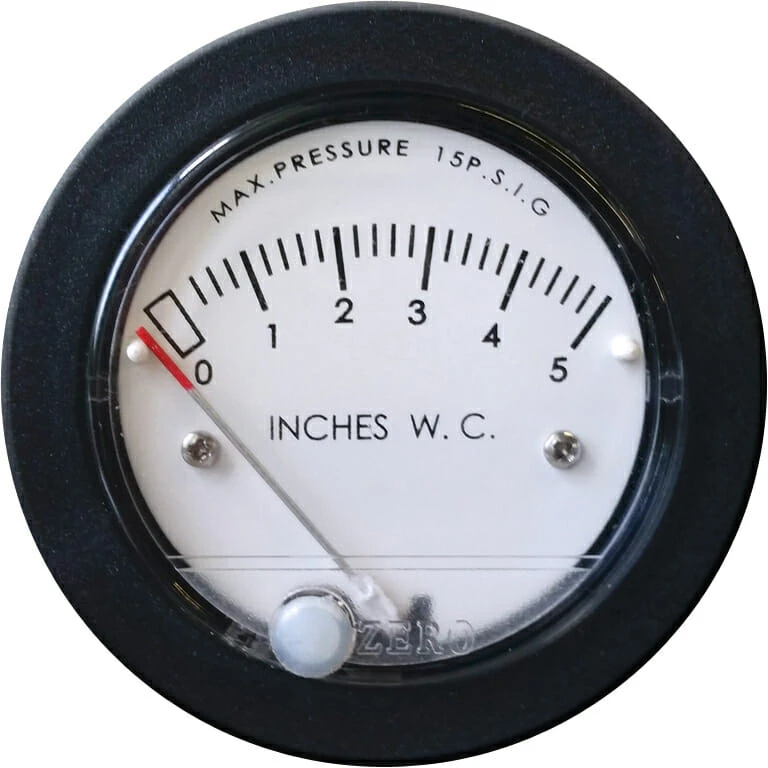

Includes Filter Efficiency Performance Gauge that takes the guesswork out of filter maintenance.

Configurable Mounting Systems

Whether your system is connected to just a few saws, drum sanders, or industrial CNC equipment, Oneida Air Systems recognizes that the amount of waste produced by shops can vary significantly. We offer a wide variety of waste handling accessories to suit the needs of any work environment.

Highly durable, angle iron stand with rust preventative, powder coat finish.
Rotary air lock valves and transfer blowers available for conveying waste to external disposal units.

Specifications

Horsepower	20HP
Motor Type	U.S. TEFC Motor
Motor Service Factor	1.15
Voltage	208-230V, 460V
Recommended Breaker Size	Call for Info
Amperage (Typical)	50.1-46A (23A @ 460V)
Phase (Pre-Wired)	3-Phase
Frequency	60Hz
Power Connector
Impeller Type	Backward inclined, welded carbon steel.
Impeller Size	18" Dia.
Real CFM Rating	6,646 Actual CFM at 2.7" S.P.
Noise Level	82 dBA @ 10 ft
Filter Type	Izumi Axtar Spunbond Media
Filtration Efficiency	99.9% @ 0.2-2.0 microns
MERV Rating	MERV 13 ±
Total Filtration Area	620 sq ft
Remote Control	Sold Separately
Remote Control Part #	For 208-230V: Item #AXR220003 For 460V: Call for info
Primary Build Materials	Cold Rolled Steel
Welding	Seam Welded
Static Resistance Rating	Conductive (Metal)
Color	White
Inlet Size	Round: 16" Dia. Square ID: 9-7/8"(W) x 20"(H) with 1-1/4" Flange
Outlet Size	Round: 16" Dia. Square ID: 20"(W) x 12-3/4"(H) with 1-3/4" Flange
Discharge Size	14" ID Flange
Height to Center of Inlet	132.5"
Contents	Blower Motor Assembly, Magnetic Starter, Fan Housing, Cyclone Separator, Hardware
Country of Manufacture	United States
Warranty Information	2 Year Limited Warranty
Certifications	Complete system is cETLus certified for indoor use
Applicable Patents	#7,247,180, #9,370,740
