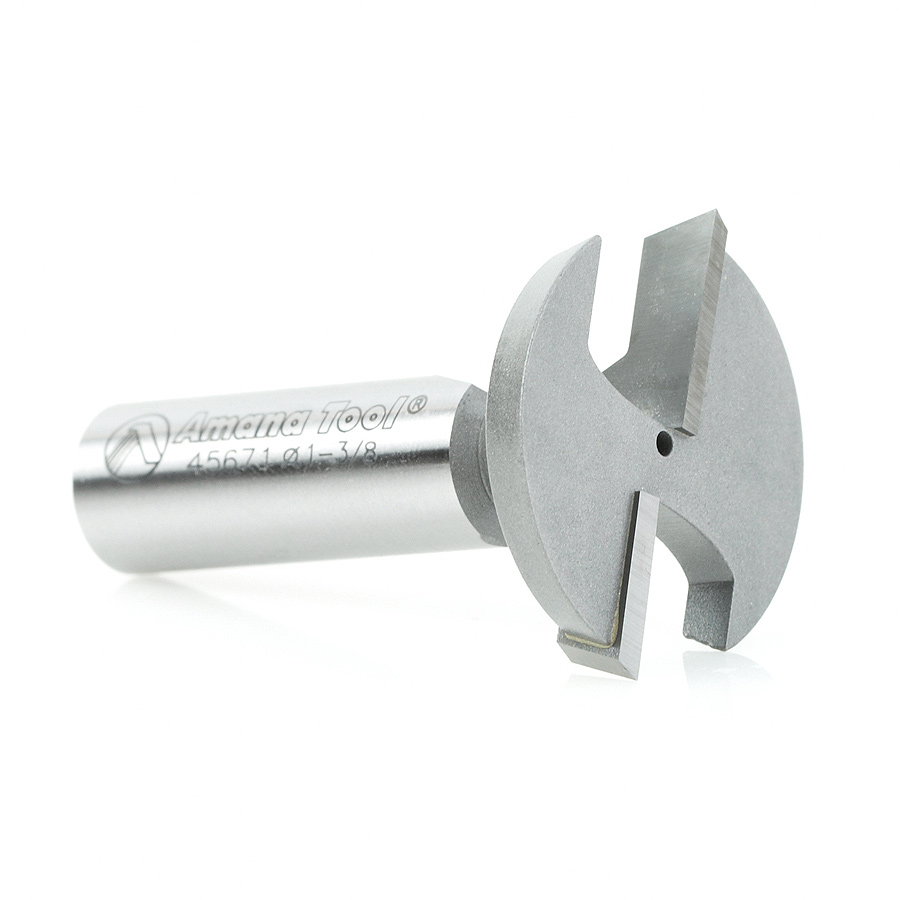

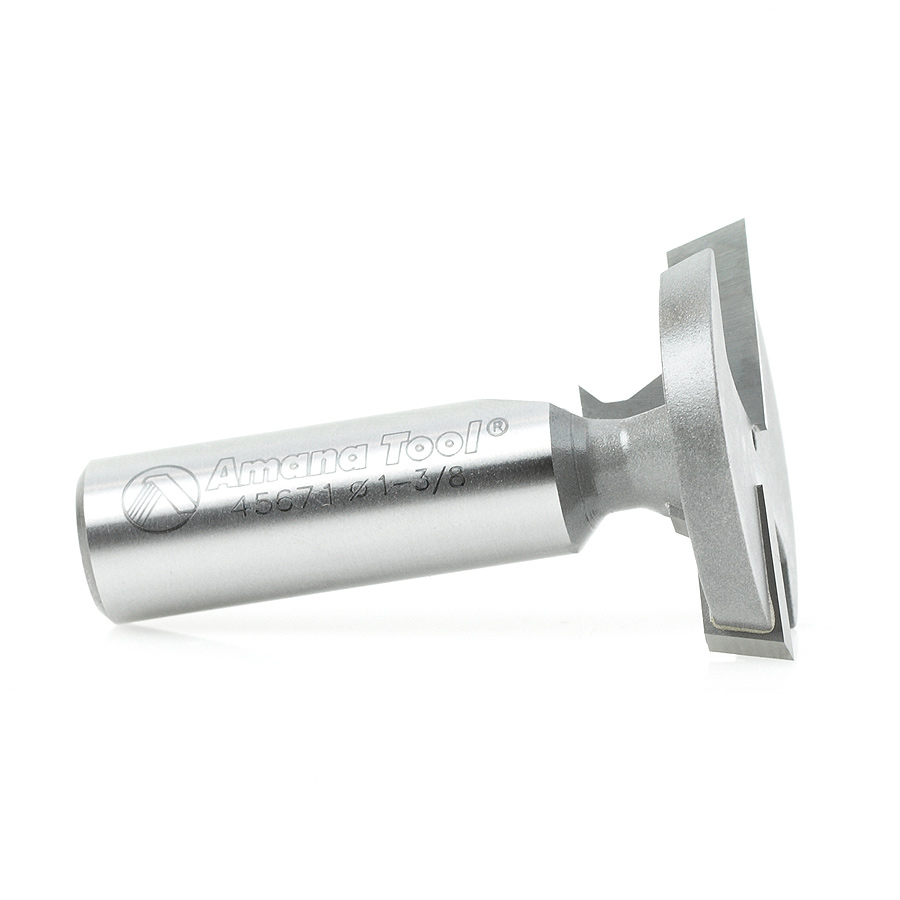

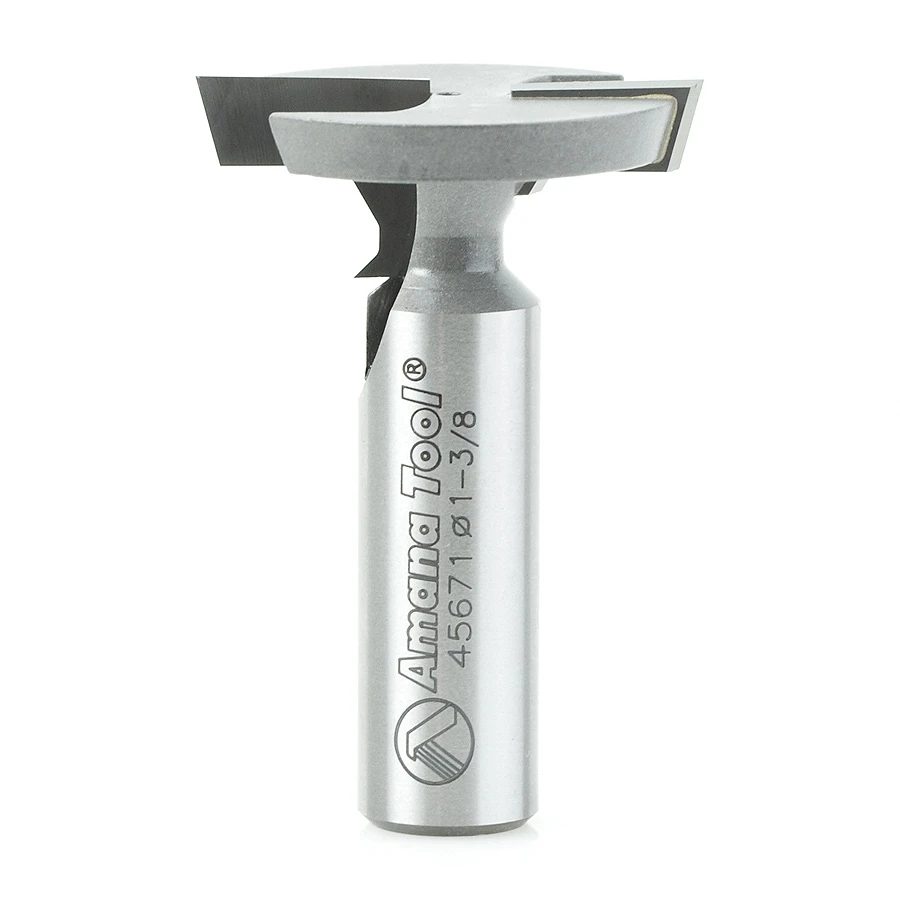

45671 T-Slot Beveled Edge 1-3/8 Dia x 35/64 x 1/2 Inch Shank

$92.46

Usually ships on the 2nd business day from order date.
(a°) Angle 30°
A1° 15°
(D) Diameter 1-3/8
D1 3/8
(B) Cutting Height 35/64
B1 1/4
Shank (d) 1/2
Overall Length (L) 2-3/64
Type Bevel
Flutes 2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685456712 SKU: 45671 Categories: , ,

Description

Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.

Note: These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.

Specifications

Angle (a°) 30°
a1° 15°
Diameter (D) 1-3/8
D1 3/8
Cutting Height (B) 35/64
B1 1/4
Shank (d) 1/2
Overall Length (L) 2-3/64
Type Bevel
Flutes 2
