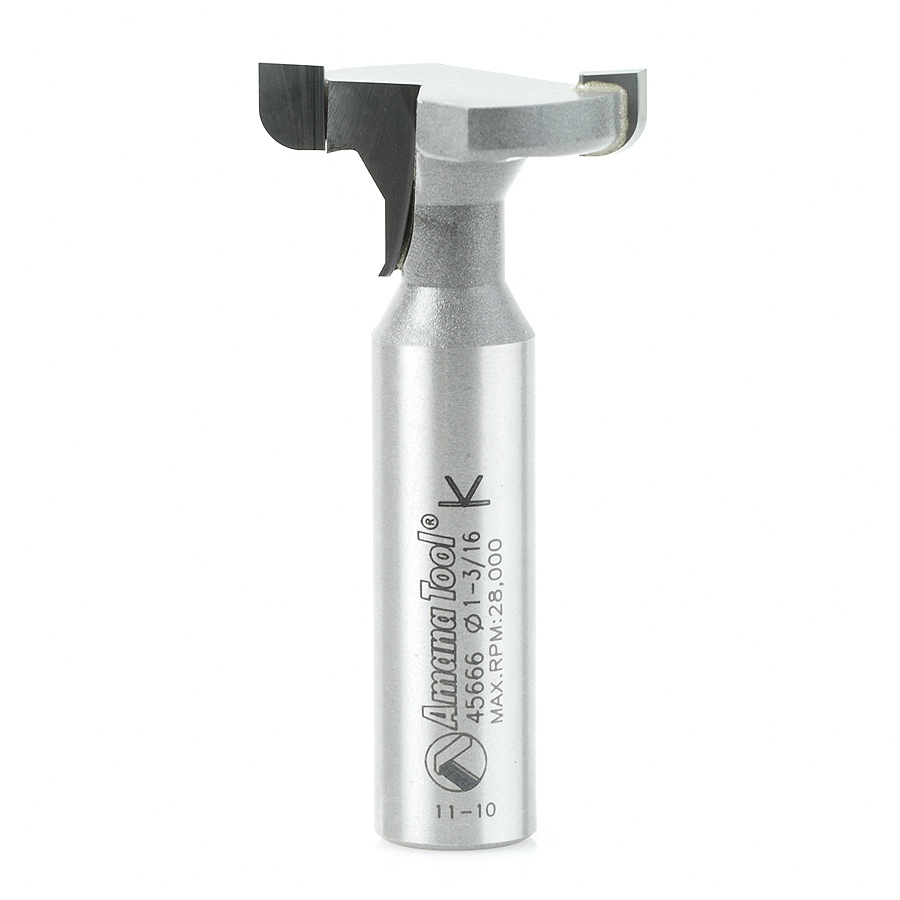

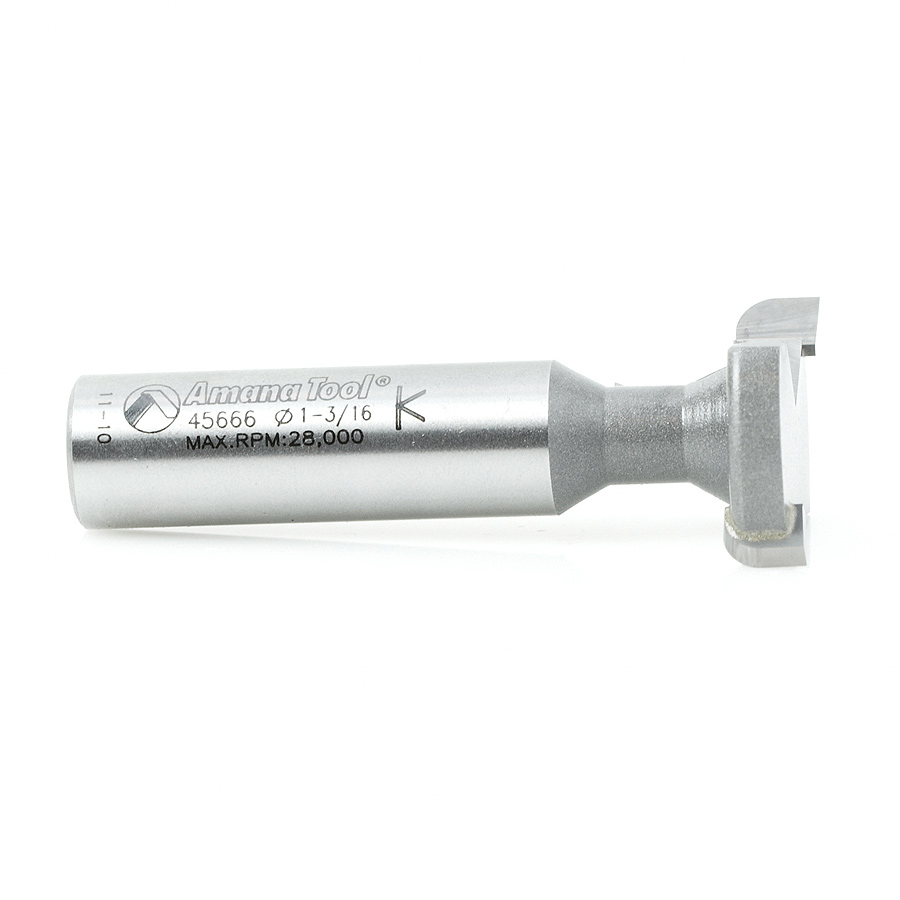

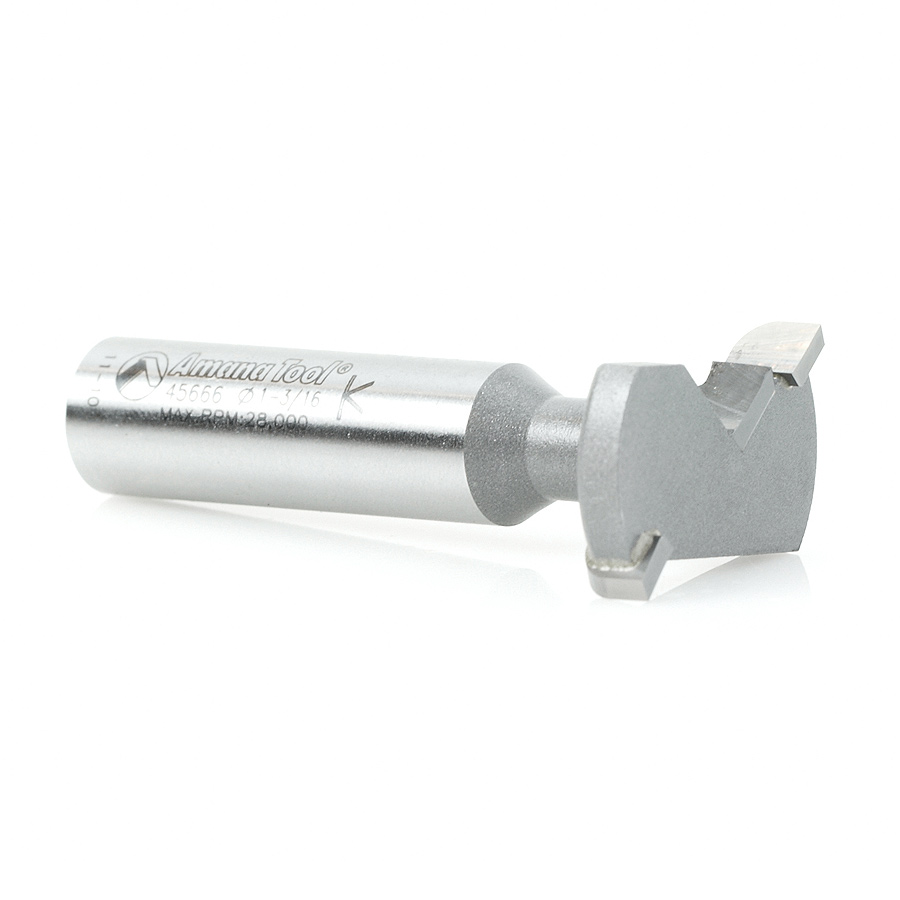

45666 T-Slot Rounded Edge 1-3/16 Dia x 3/4 x 1/2 Inch Shank

$105.53

Usually ships on the 2nd business day from order date.

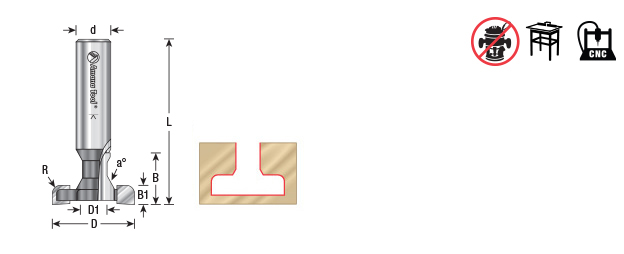

(a°) Angle 29°
Diameter (D) 1-3/16
D1 3/8
Radius (R) 1/8
(B) Cutting Height 3/4
B1 9/32
Shank (d) 1/2
Overall Length (L) 2-3/8
Type Radius
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685456668 SKU: 45666 Categories: , ,

Description

Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.

Note: These tools are designed for ‘groove-forming’ T-slot wall panels, they are not designed for plunging operations.

Specifications

Angle (a°) 29°
Diameter (D) 1-3/16
D1 3/8
Radius (R) 1/8
Cutting Height (B) 3/4
B1 9/2
Shank (d) 1/2
Overall Length (L) 2-3/8
Type Radius
