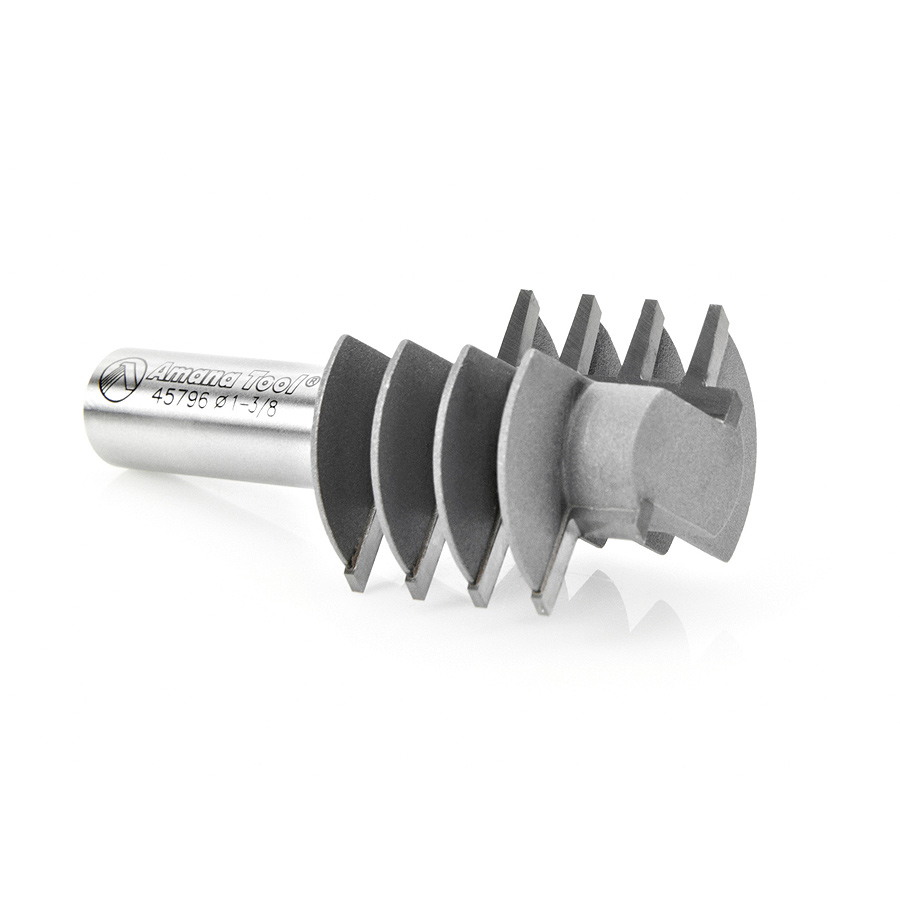

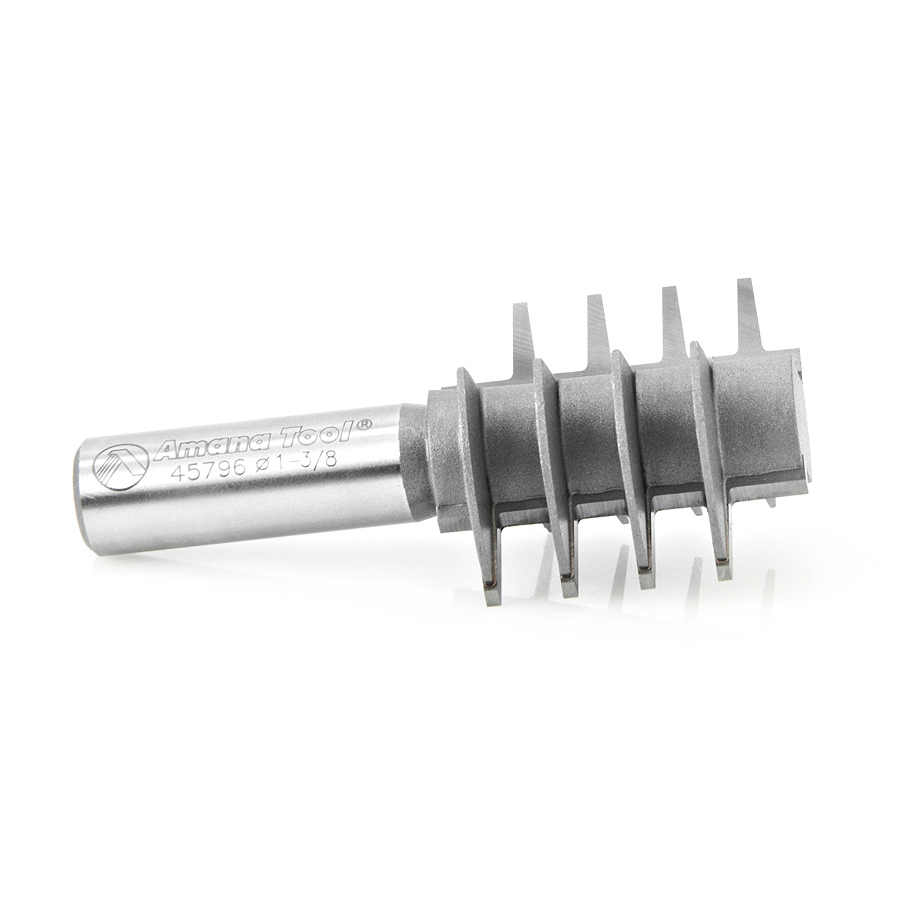

45796 Carbide Tipped Finger Joint 1-3/8 Dia x 1-9/16 x 1/2 Inch Shank

$119.76

(a°) Angle 14°
Diameter (D) 1-3/8
(B) Cutting Height 1-9/16
B1 21/64
Shank (d) 1/2
Overall Length (L) 3
Flutes 2
C 5/16
SKU: #45796 Categories: , ,

Description

Cut interlocking fingers for strong end-to-end or edge-to-edge glueups with this simple bit. Setup is fast. Center the cut profile on the stock, then cut, alternating the orientation of the show face – up when cutting one workpiece, down when cutting its mate. Use in all CNC and table-mounted routers. For best results use in a router table.

Specifications

Angle (a°) 14°
Diameter (D) 1-3/8
Cutting Height (B) 1-9/16
B1 21/64
Shank (d) 1/2
Overall Length (L) 3
Flutes 2
C 5/16
