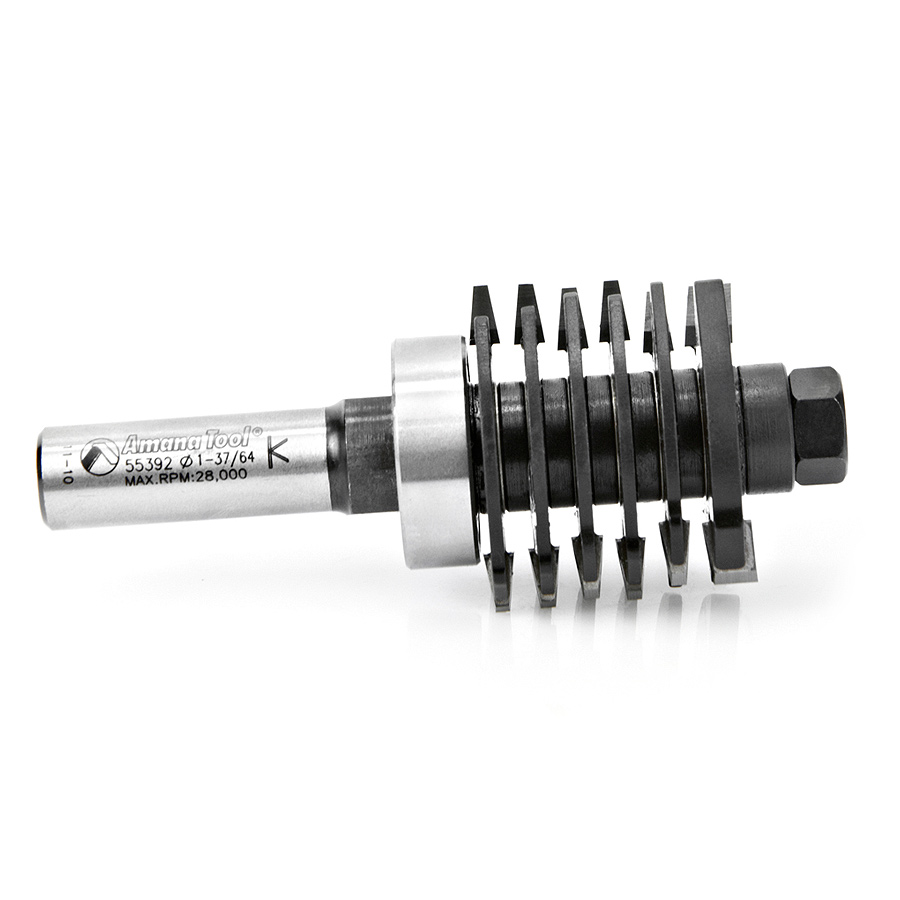

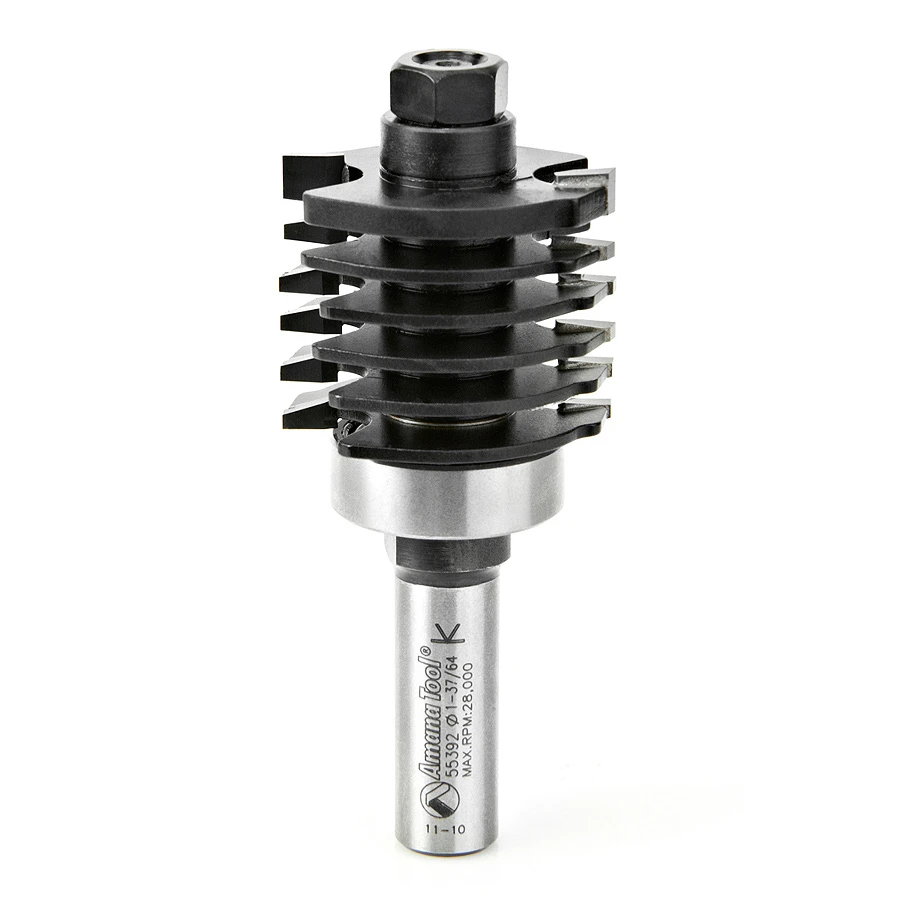

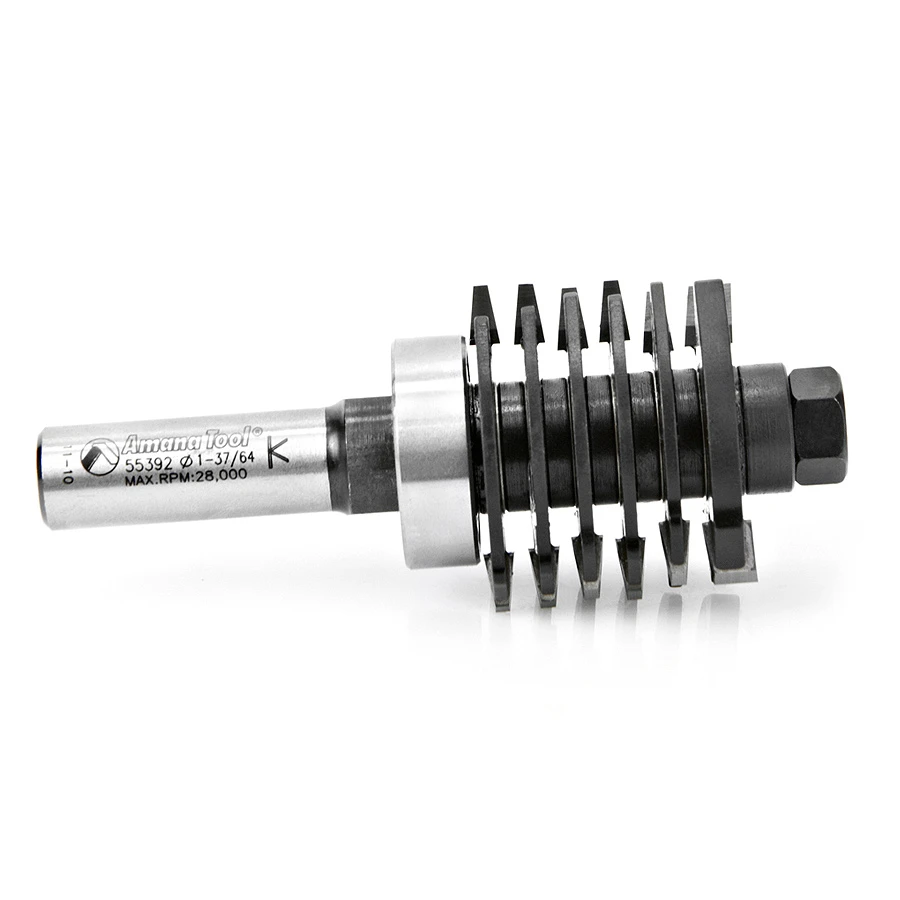

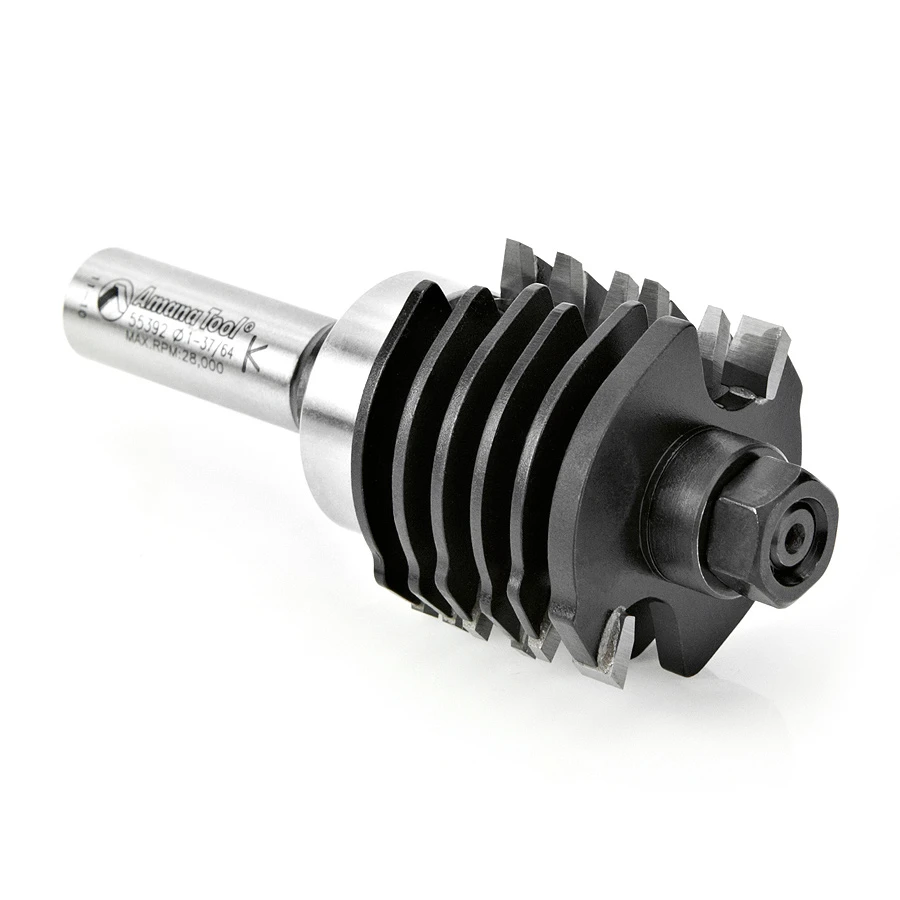

55392 Carbide Tipped Finger Joint Assembly 1-9/16 Dia x 1-3/8 x 1/2 Inch Shank with Upper BB
$194.99
Usually ships on the 2nd business day from order date.
| Diameter (D) | 1-9/16 |
|---|---|
| (B) Cutting Height | 1-3/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-3/4 |
| # Wings | 2 |
Description
Ideal for joining wood end-to-end as well as edge-to-edge, the finger joint can be routed quickly and accurately with this tool. Rout one workpiece face up, the other face down. When the bit height is correct, the two pieces should slide together with their faces perfectly flush. The assembly includes five 2-wing finger cutters, one 2-wing straight cutter, a ball bearing guide, a 1/2″ shank arbor, shims, spacers, and washers. The number of finger cutters used varies with the stock thickness; it can handle stock between 7/16″ and 1-3/8″ thick. For best results run at full speed in a 1-1/2 horsepower table-mounted router. Full instructions for setup and use are included.
Specifications
| Diameter (D) | 1-9/16 |
| Cutting Height (B) | 1-3/8 |
| Shank (d) | 1/2 |
| Overall Length (L) | 3-3/4 |
| # Wings | 2 |
