RC-2370 Insert Adjustable Chamfer 85mm Dia x 40mm x 3/4 Shank
$678.89
Usually ships on the 2nd business day from order date.
| Diameter (D) | 85mm |
|---|---|
| (B) Cutting Height | 40mm |
| Shank (d) | 3/4 |
| Overall Length (L) | 100mm |
| Max Rpm | 12,000 |
Description

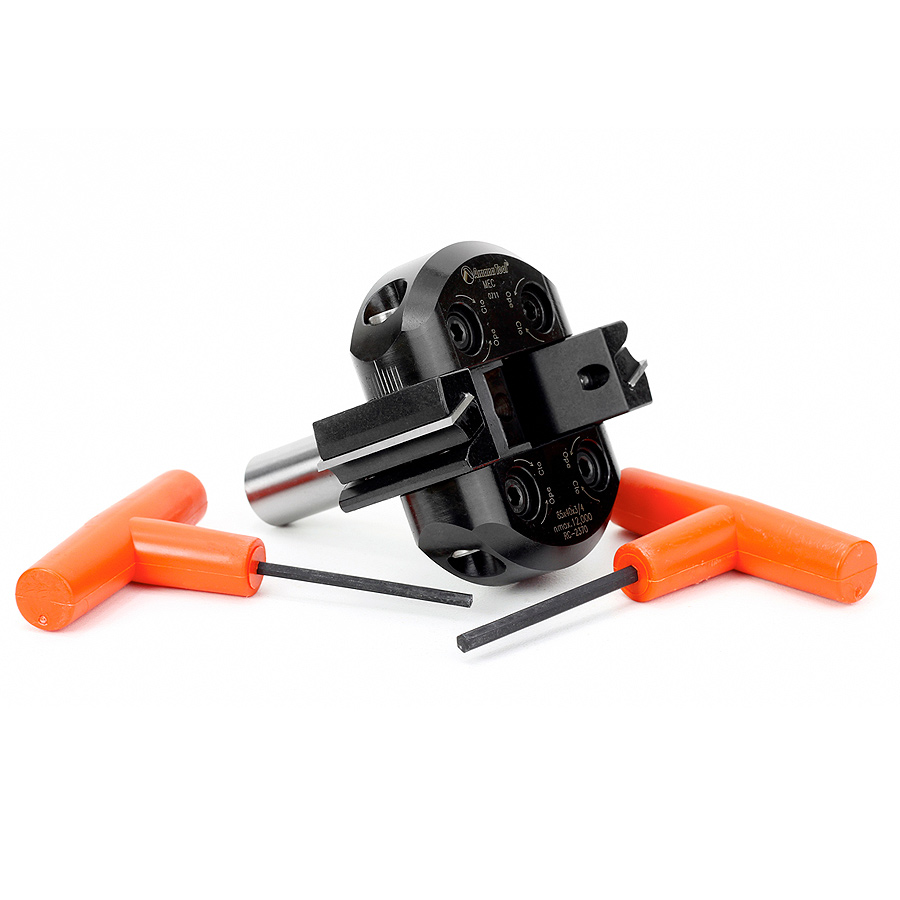

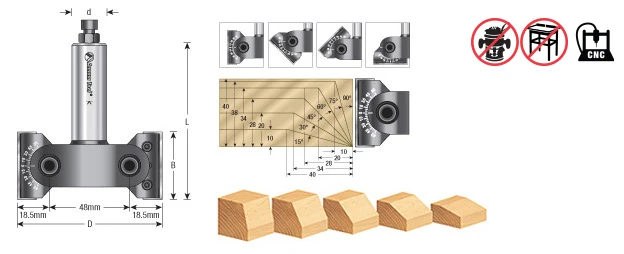

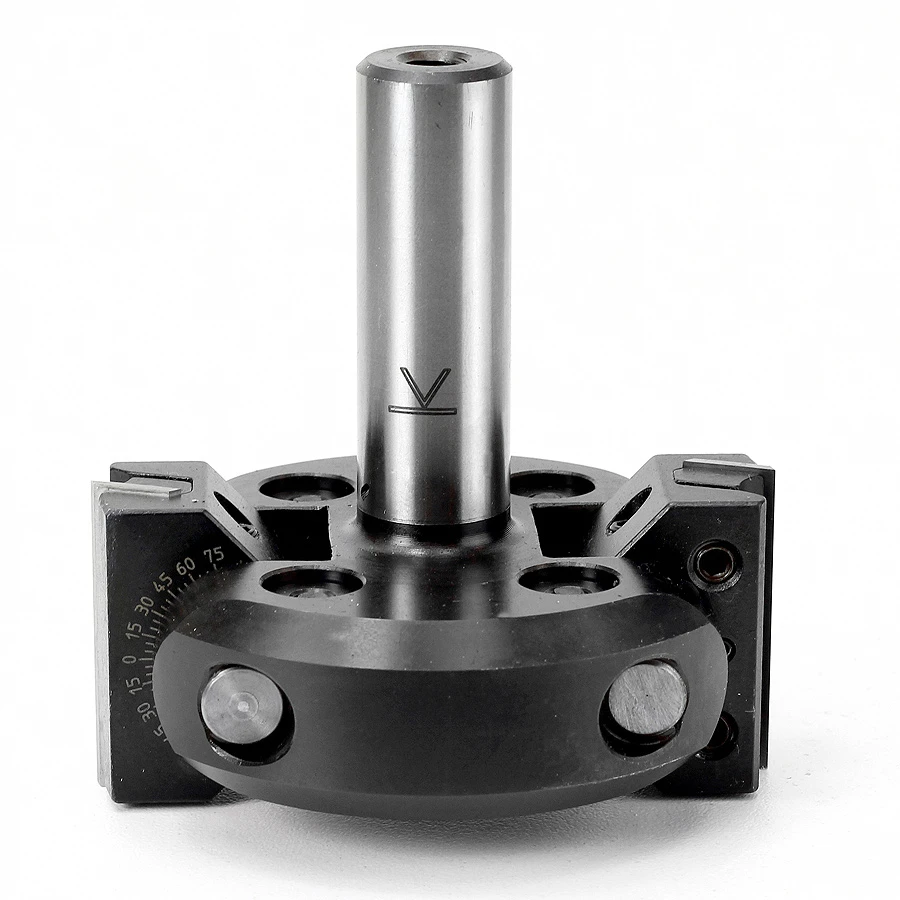

Insert router bit complete with two cutting flutes. Suitable for producing chamfer cuts at various angles in softwood hardwood and man-made boards. Cutting angle can be adjusted in 7.5° steps by using a notched scale.
Fine adjustment of 1° is also possible. For use on routers and machining centers with CNC control.
Bit tolerance is (+) (-) 0.5°.
Excellent for cutting:
- Man-Made Boards
- Plastic/Acrylic
- Hardwood/Softwood
- Ultra-High-Molecular-Weight Polyethylene (UHMWPE)
Specifications
| (D) Diameter | 85mm |
| (B) Cutting Height | 40mm |
| (d) Shank | 3/4 |
| Overall Length (L) | 100mm |
| Max RPM | 12,000 |
