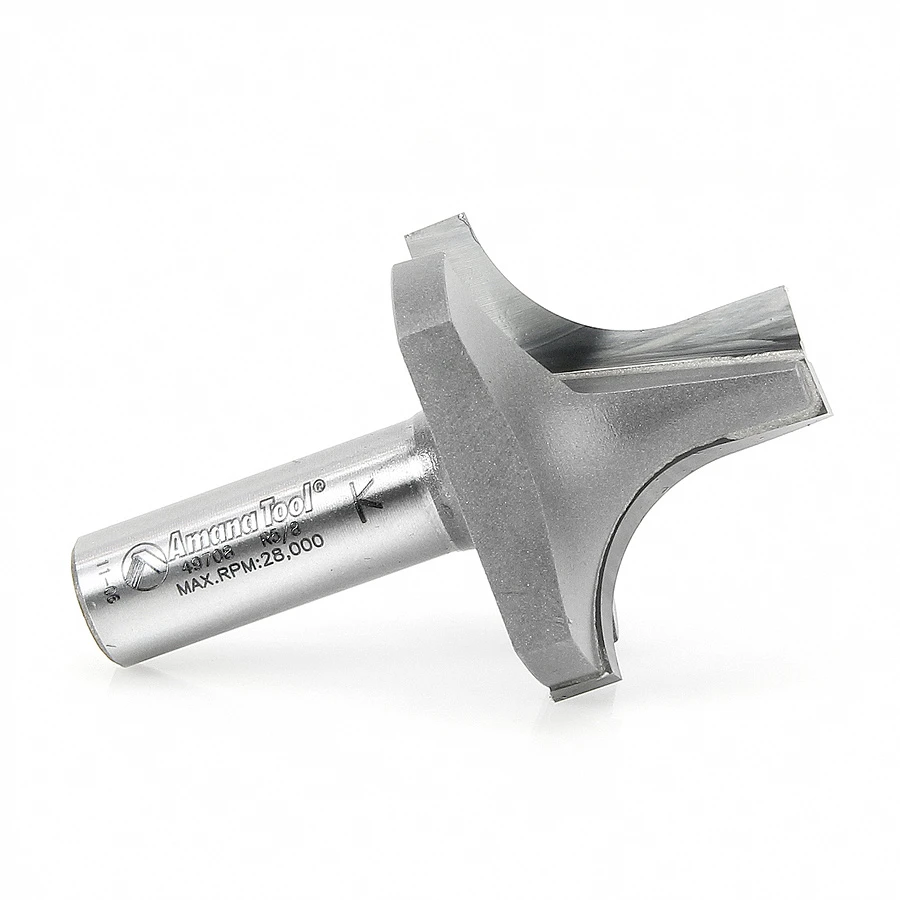

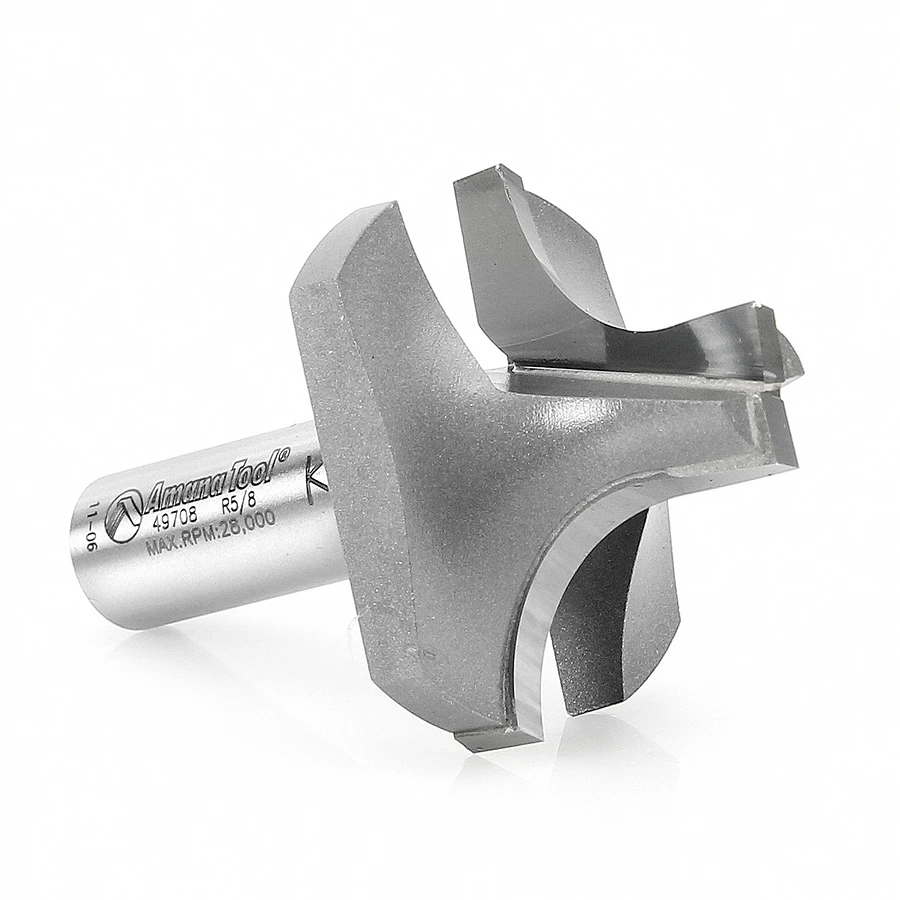

49708 Carbide Tipped Plunging Round Over 5/8 Radius x 1-3/4 Dia x 1-1/4 x 1/2 Inch Shank

$113.04

Usually ships on the 2nd business day from order date.
(D) Diameter 1-3/4
(R) Radius 5/8
(B) Cutting Height 1-1/4
(d) Shank 1/2
Overall Length (L) 2-3/4
B1 1
Flutes 2
B2 3/8
D1 1/2
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

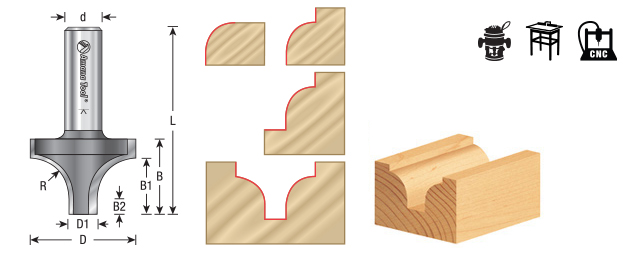

This bit creates a flat-bottom groove between two quarter-round shapes. Short vertical walls extending below the radius lend extra depth to the appearance. Depending upon the cut depth adjustment, the radii can be flush with the work surface or recessed. The profile can be formed on an edge using an edge guide or, on the router table using a fence.

Maximum RPM =14,000.

Use in a table-mounted router. Not for use in a handheld router!

Specifications

Diameter (D) 1-3/4
Radius (R) 5/8
Cutting Height (B) 1-1/4
Shank (d) 1/2
Overall Length (L) 2-3/4
B1 1
Flutes 2
B2 3/8
D1 1/2
