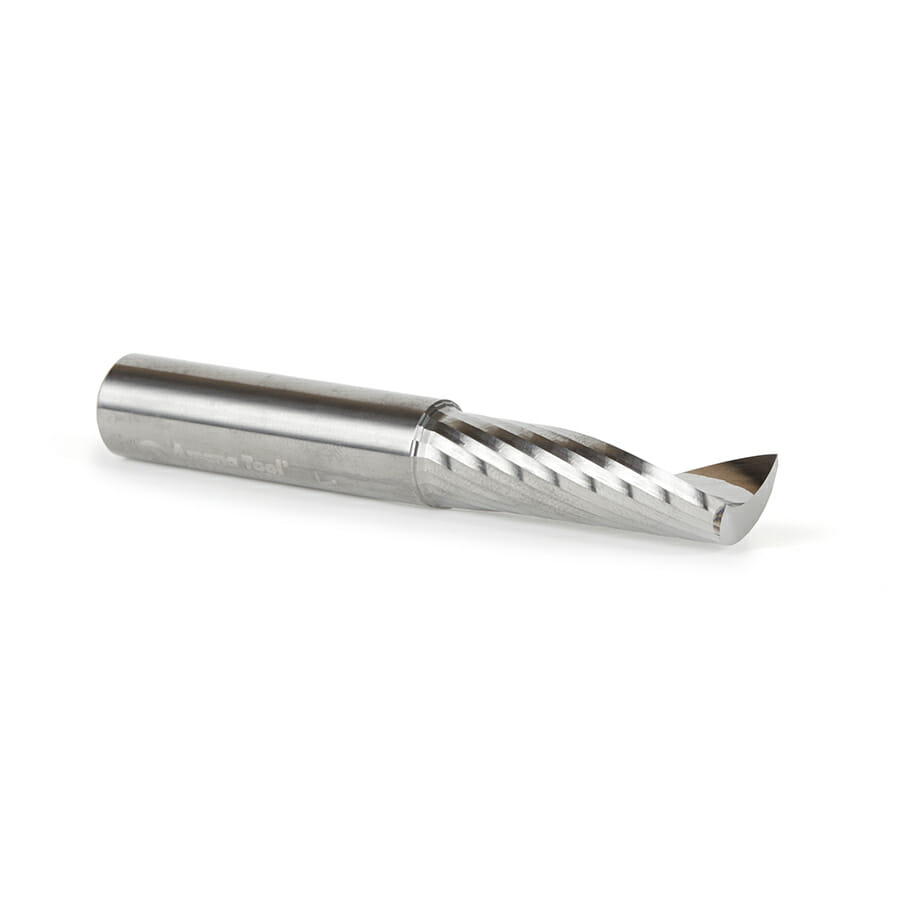

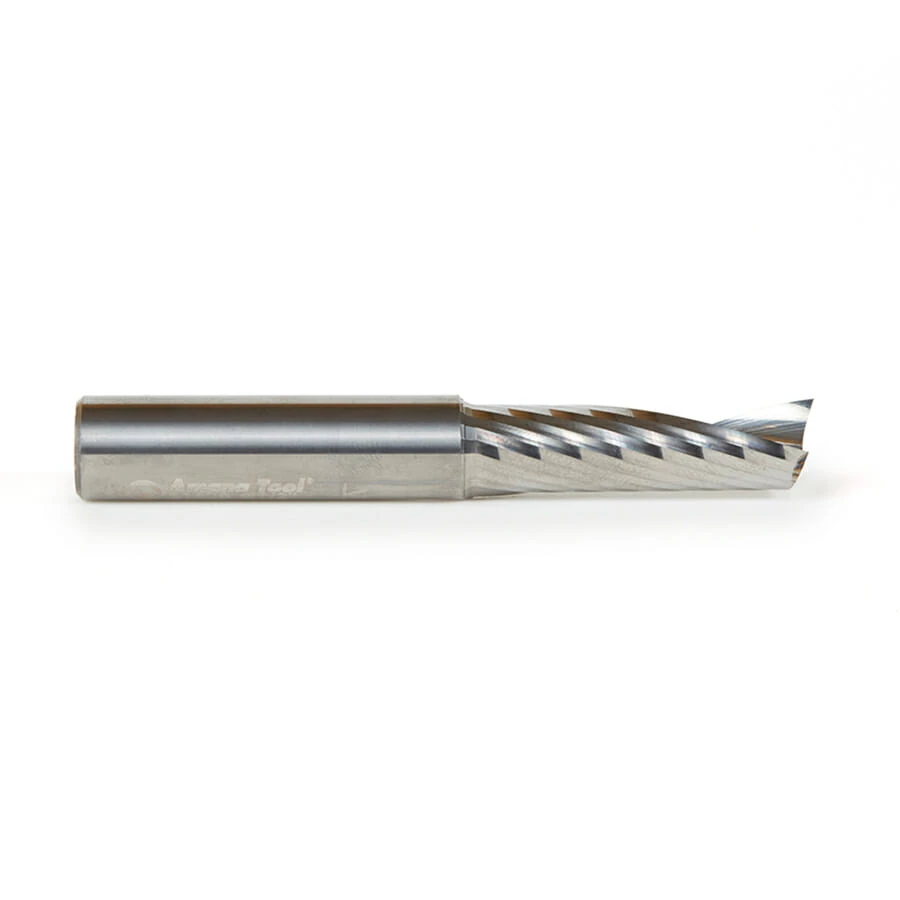

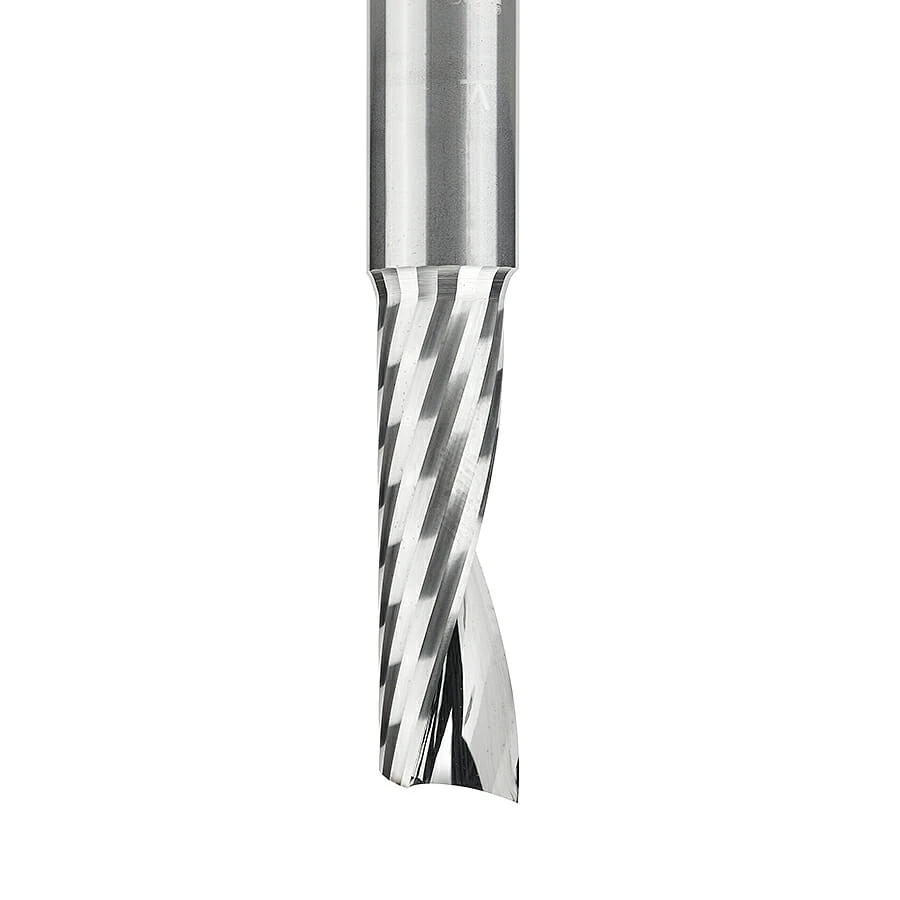

Solid Carbide CNC Spiral ‘O’ Single Flute, Plastic Cutting 1/2 Dia x 1-5/8 x 1/2 Shank x 3-1/2 Inch Long Up-Cut Router Bit
|B Cutting Height||1-5/8|
|Overall Length L||3-1/2|
To be used only on CNC machines and routers with automatic feeding.

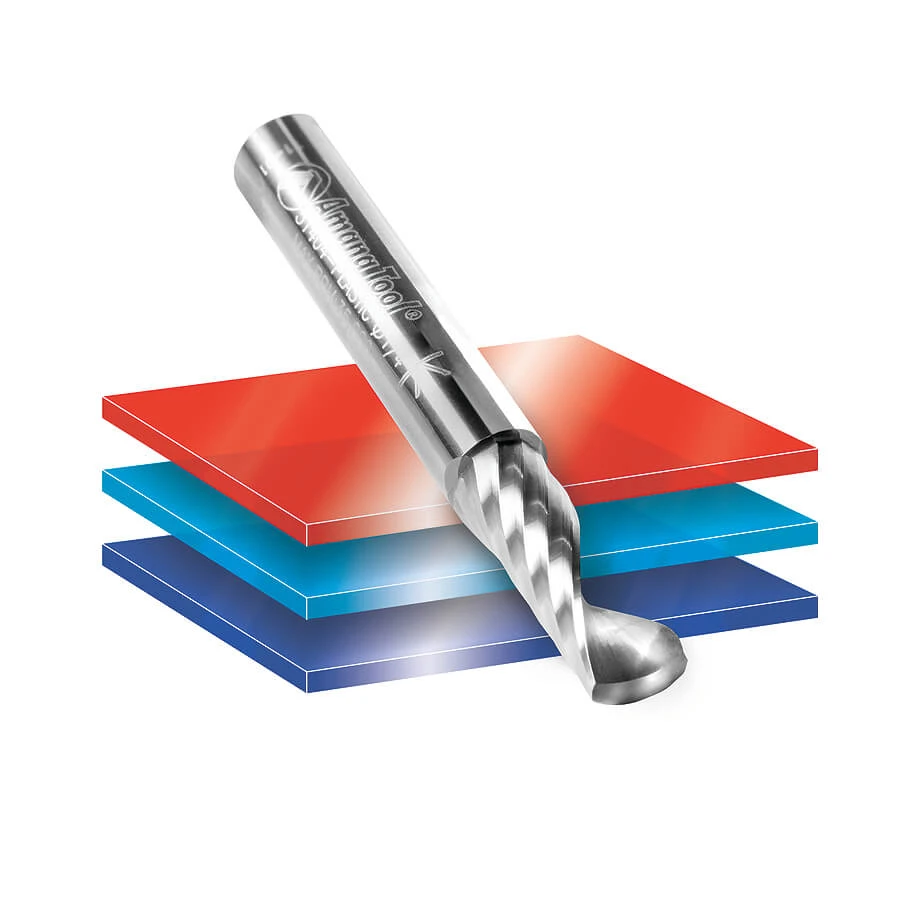

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut. Excellent for cutting: Plastic/Acrylic Acetal and Nylon Acrylic Stone Acrylonitrile Butadiene Styrene (ABS) Aluminum Composite Material (ACM) Alupanel® Corian Coroplast® ** Corrugated Plastics such as Correx Boards and Polypropylene * Crosslinked Polyethylene (XPE, PEX, XLPE) Delrin Dibond® Extruded Acrylic Foam Board Fomex® Gatorfoam® *** Hard Plastic High Density Polyethylene (HDPE) High Density Urethane (HDU Board) High Impact Polystyrene (HIPS) High Impact Polystyrene (HIPS) for digital printing High Pressure Laminates (HPL) Hydroxy-Terminated Polyether (HTPE) King ColorCore® The Multi-Color Engravable Polymer Sheet. Laminate Low Density Polyethylene (LDPE) LubX® Lucite® Mechanical/Engineered Plastics Perspex® Cast Acrylic Sheet Plexiglas® Poly (methyl methacrylate) (PMMA) Polycarbonate (Lexan™) † Polyethylene Terephthalate Glycol-Modified (PETG / PET-G) Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde. Polystyrene (PS) PVC Sign Foam Sintra PVC Solid Surface StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE) Teflon® Thermoplastic Polyolefin (TPO) Trespa® Meteon® *** * Ultra High Molecular Weight Polyethylene (UHMWPE) Urethane Vinyl Flooring Wood
Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages. * A soft plastic cardboard made with super soft super flexible PVC. ** Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer. *** *** * Decorative high-pressure compact laminate (HPL) with an integral surface. † Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
Benefits of Mirror-Finish:
Razor sharp cutting edge Effortless chip removal Helps prevent chip re-welding Extends tool life
Exceptional cut quality Dissipates heat well and prevents melting 35,000. Maximum RPM:
Vectric compatible tool file for 51428 available for download, . click here
|(B) Cutting Height||1-5/8|
|Overall Length (L)||3-1/2|
