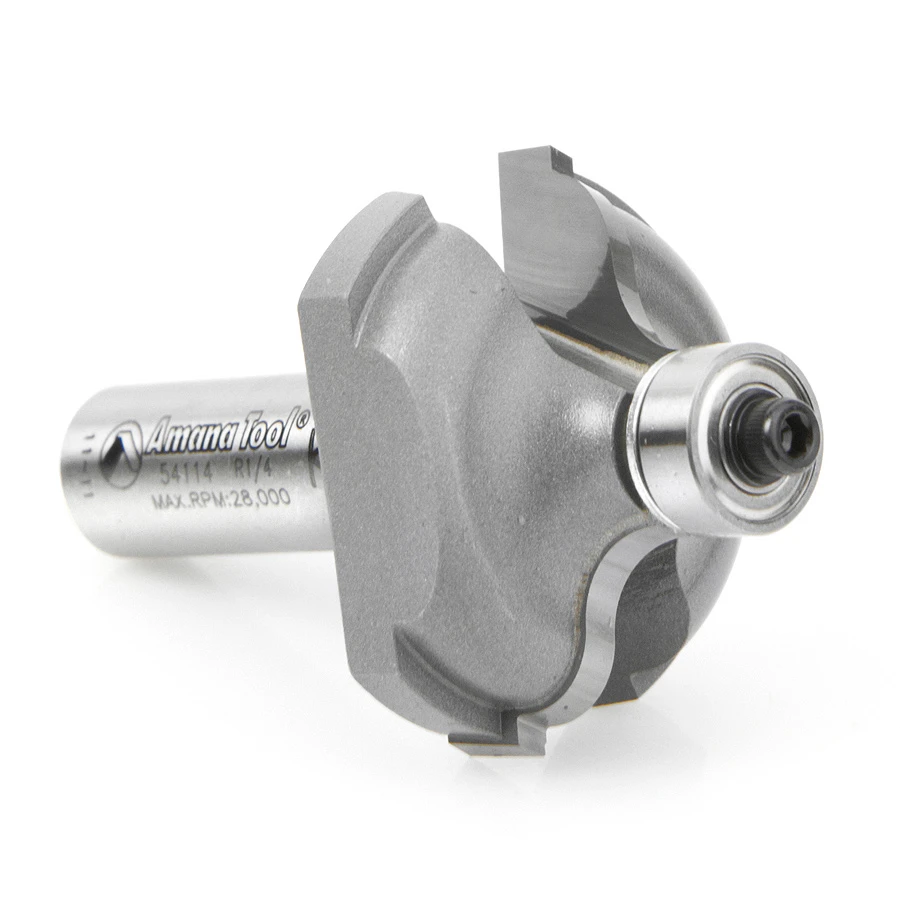

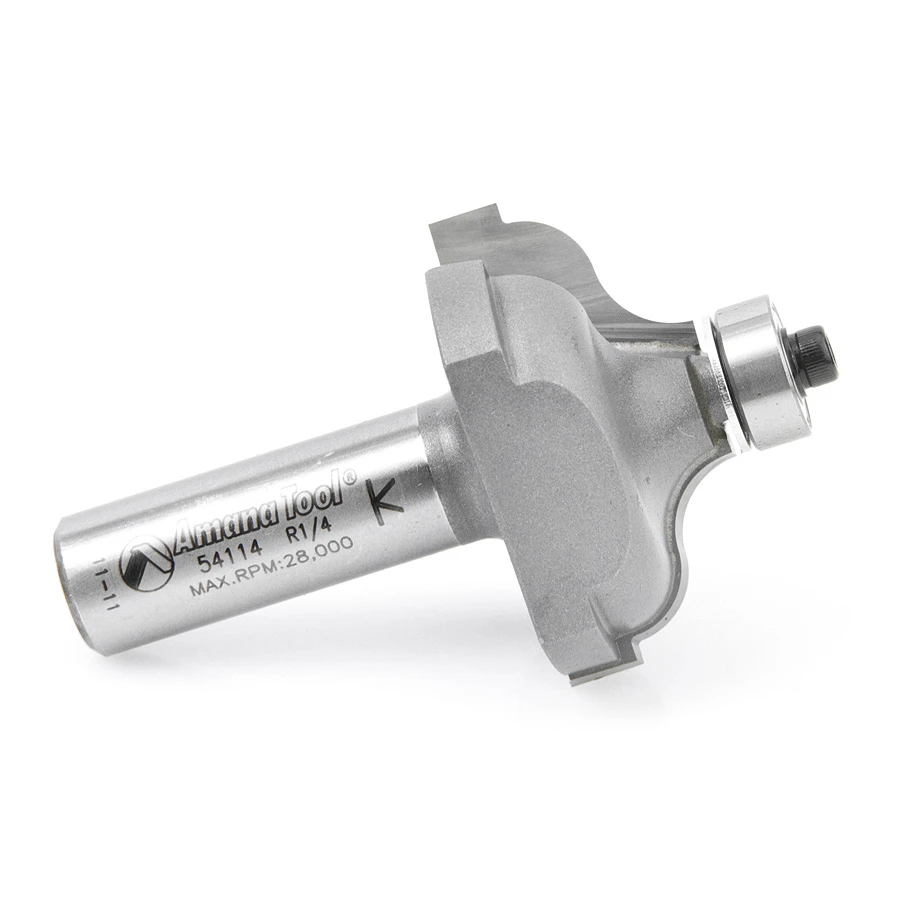

54114 Carbide Tipped Ogee Fillet 1/4 Radius x 1-5/8 Dia x 3/4 x 1/2 Inch Shank

$111.03

Usually ships on the 2nd business day from order date.

Diameter (D)	1-5/8
Radius (R)	1/4
(B) Cutting Height	3/4
Shank (d)	1/2
Overall Length (L)	2-5/8
Replacement Bearing	47706
Flutes	2

You will receive a courtesy discount of 5% if your cart exceeds $100 :)

-

54114 Carbide Tipped Ogee Fillet 1/4 Radius x 1-5/8 Dia x 3/4 x 1/2 Inch Shank quantity

+ Add to cart

UPC: 738685941140 SKU: 54114 Categories: Router Bits, Profiling Router Bits - Industrial Quality from Amana Tool, Ogee Router Bits

Share:

Description

The ogee is one of the basic shapes used in moldings and decorative profiles. An S-shaped curve, it is convex at the top fairing down into a concave (shown inverted). The ogee bit is characterized by the concave shape coming off the pilot bearing. Using the optional 3/8″ bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.
