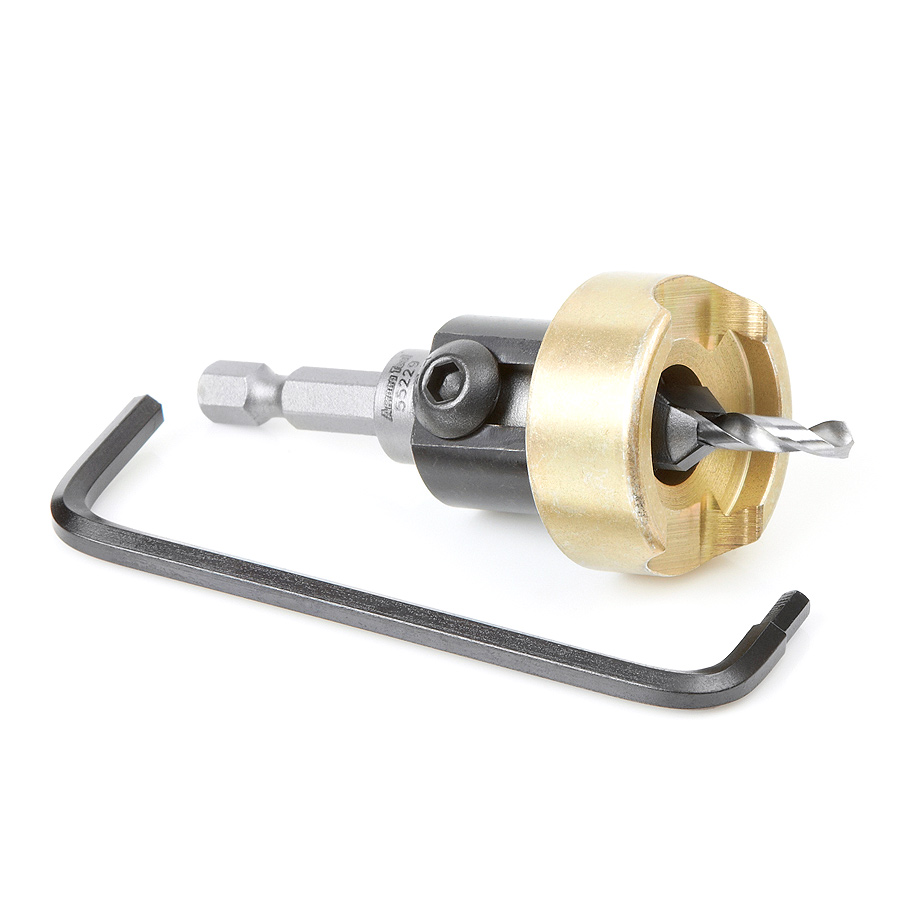

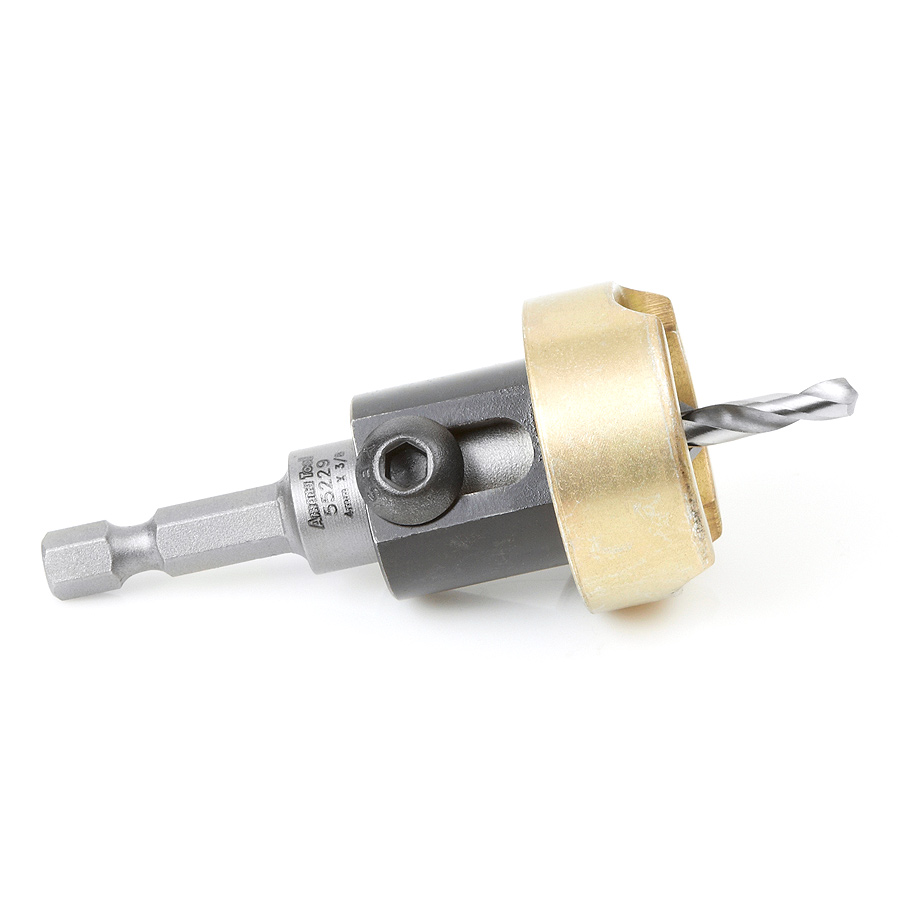

55229 Carbide Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, 3/8 Dia x 5/32 Drill Dia x 1/4 Inch Quick Release Hex Shank
$60.85
| (a°) Angle | 49° |
|---|---|
| (B) Cutting Height | 3/64-3/8 |
| Diameter (D) | 3/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2/5-8 |
| Drill Din | 1897 |
| Wood Screw Size | #8 |
| D1 | 5/32 |
| Replacement Drill | 630-230 |
| Replacement Countersink | 55274 |
| Use With Plug Cutter (Optional) | 55220 |
Description
A must have tool for every woodworker!
Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).
Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.
It also has an open space to allow for chip evacuation.
The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.
Enables users to drill a pilot hole and tapered countersink in one step.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
A must have tool for every woodworker
2-Wing
Quick release 1/4″ hex shank
Slow spiral, HSS M2 fully ground drill bit included
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Specifications
| (a°) Angle | 49° |
| (B) Cutting Height | 3/64-3/8 |
| Diameter (D) | 3/8 |
| Shank (d) | 1/4 |
| Overall Length (L) | 2/5-8 |
| Drill Din | 1897 |
| Wood Screw Size | #8 |
| D1 | 5/32 |
| Replacement Drill | 630-230 |
| Replacement Countersink | 55274 |
| Use with Plug Cutter (Optional) | 55220 |
