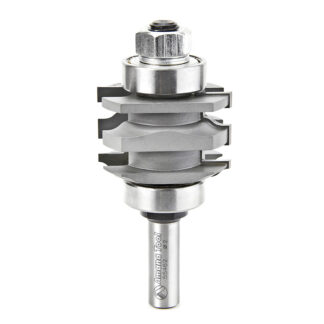

55460 Carbide Tipped One Piece Concave Stile & Rail 2 Dia x 1-9/32 x 7/32 Radius x 1/2 Inch Shank
$87.93
Usually ships on the 2nd business day from order date.
Diameter (D) | 2 |
---|---|
D1 | 1-1/4 |
Radius (R) | 7/32 |
(B) Cutting Height | 1-9/32 |
B1 | 15/64 |
Shank (d) | 1/2 |
Overall Length (L) | 4-3/32 |
Replacement Bearing | 47744 |
Flutes | 2 |
C | 3/8 |
Description
These one piece stile & rail bits are an easy and effective technique for creating cabinet door frames. You simply adjust the height of the bit accordingly in the router table to cut the profile cut (with bit lowered in the table) and the cope cut (with bit raised in the table). For 3/4″ thick frames.
Specifications
Diameter (D) | 2 |
D1 | 1-1/4 |
Radius (R) | 7/32 |
Cutting Height (B) | 1-9/32 |
B1 | 15/64 |
Shank (d) | 1/2 |
Overall Length (L) | 4-3/32 |
Replacement Bearin | 47744 |
Flutes | 2 |
C | 3/8 |
