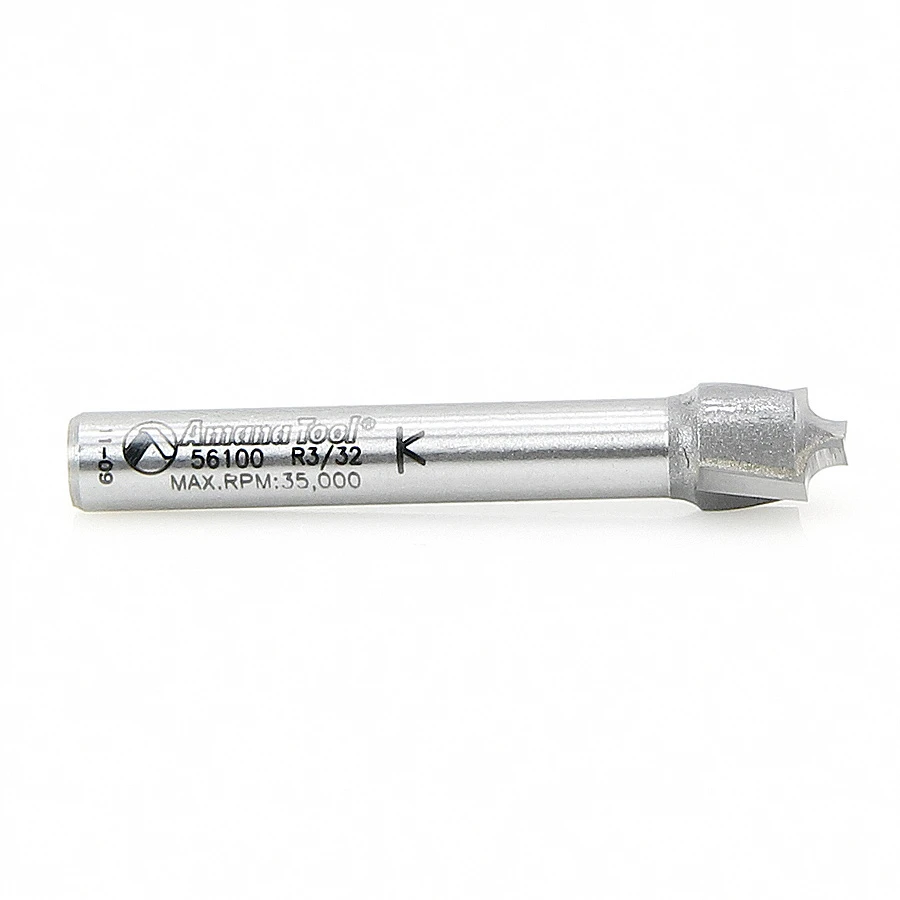

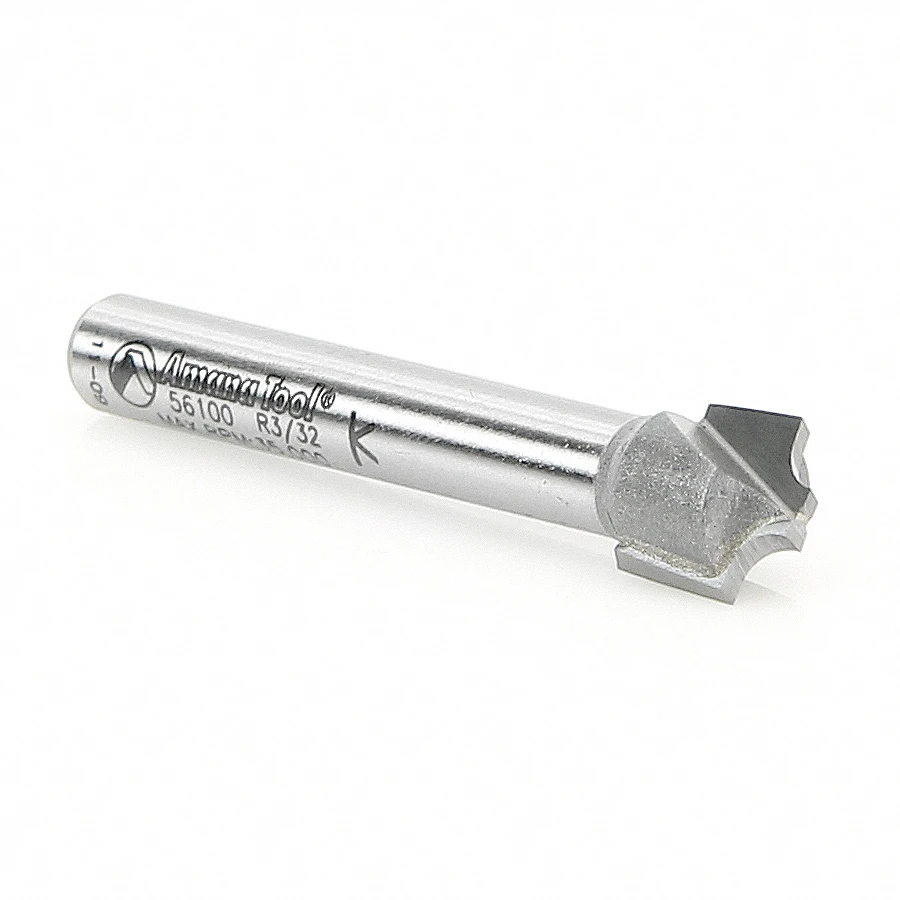

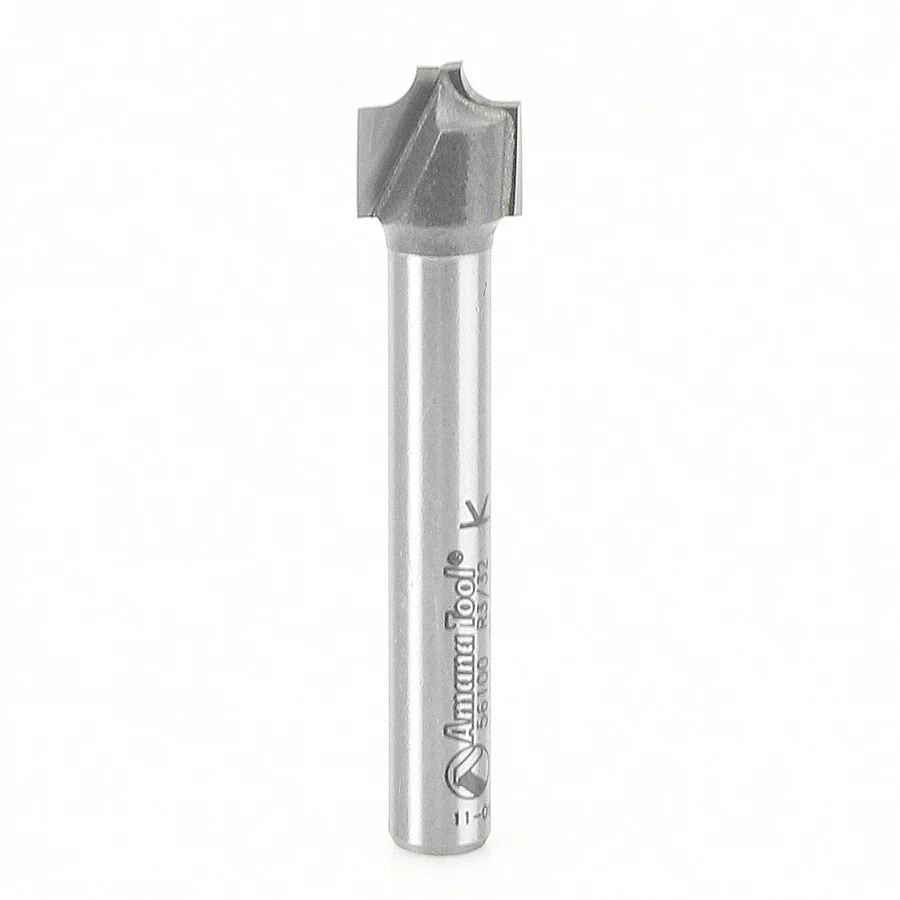

56100 Carbide Tipped Plunge Beading 3/32 Radius x 3/8 Dia x 5/16 x 1/4 Inch Shank
$40.17
Usually ships on the 2nd business day from order date.
Diameter (D) | 25/64 |
---|---|
D1 | 1/8 |
Radius (R) | 3/32 |
(B) Cutting Height | 23/64 |
B1 | 1/8 |
Shank (d) | 1/4 |
Overall Length (L) | 1-29/32 |
Flutes | 2 |
Description
Quarter-round profiles are formed by this bit as it grooves, one on each side of a flat. Used with a fence or edge guide, this beading bit can be used as an edge former.
Maximum RPM 14,000.
Use in a table-mounted router. Not for use in a handheld router!
Specifications
Diameter (D) | 25/64 |
D1 | 1/8 |
Radius (R) | 3/32 |
Cutting Height (B) | 23/64 |
B1 | 1/8 |
Shank (d) | 1/4 |
Overall Length (L) | 1-29/32 |
Flutes | 2 |
