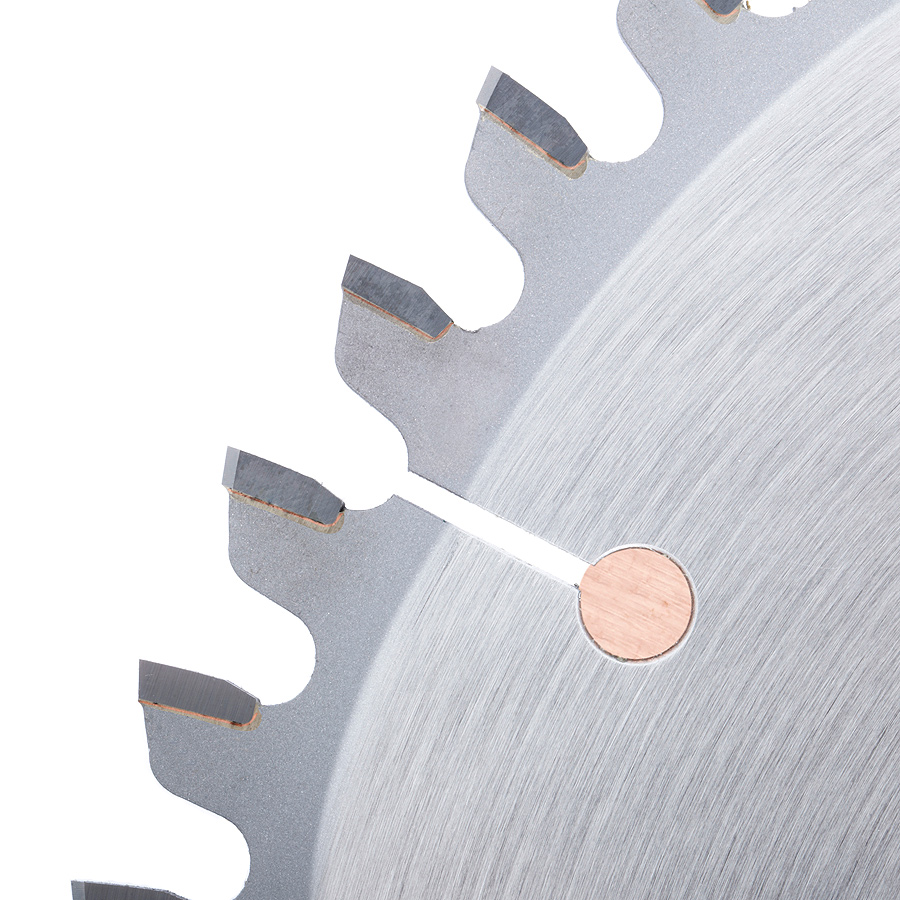

584801 Carbide Tipped Aluminum and Non-Ferrous Metals 8 Inch Dia x 48T TCG, -6 Deg, 5/8 Bore
$125.00
Usually ships on the 2nd business day from order date.

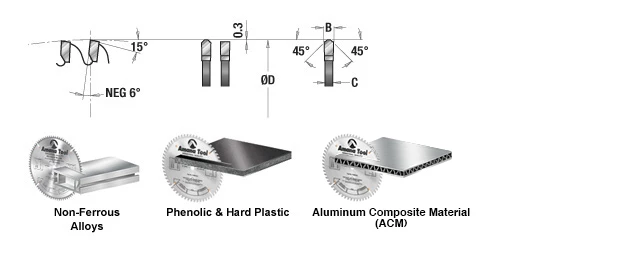

| Diameter (D) | 8 (200mm) |
|---|---|
| Teeth | 48 |
| (d) Bore | 5/8 |
| Tooth Grind | TCG |
| Hook Angle | -6° |
| Kerf (B) | .110 (2.8mm) |
| Plate (c) | .087 (2.2mm) |
Description
Thanks to its special carbide formulation and blade geometry, this is the ideal blade for cutting relatively thick-walled aluminum and non-ferrous metal bars such as copper, brass, bronze and lead. It also is good for cutting extrusions and profiles. The negative hook angle (-6°), triple-chip grind and thick plate combine to produce a superior finish. The blade can also be used to cut other “difficult” materials such as plastic, PVC tubing, fiberglass and ACM (Aluminum Composite Material).
Warning: Never attempt to cut ferrous metals with these blades.
Clamp down the workpiece.
For optimal results and extended saw blade sharpness use blade wax, mist lubricant system or air cooling.
Specifications
| (D) Diameter | 8 (200mm) |
| Teeth | 48 |
| (d) Bore | 5/8 |
| Tooth Grind | TCG |
| Hook Angle | -6° |
| Kerf (B) | .110 (2.8mm) |
| Plate (C) | .087 (2.2mm) |
