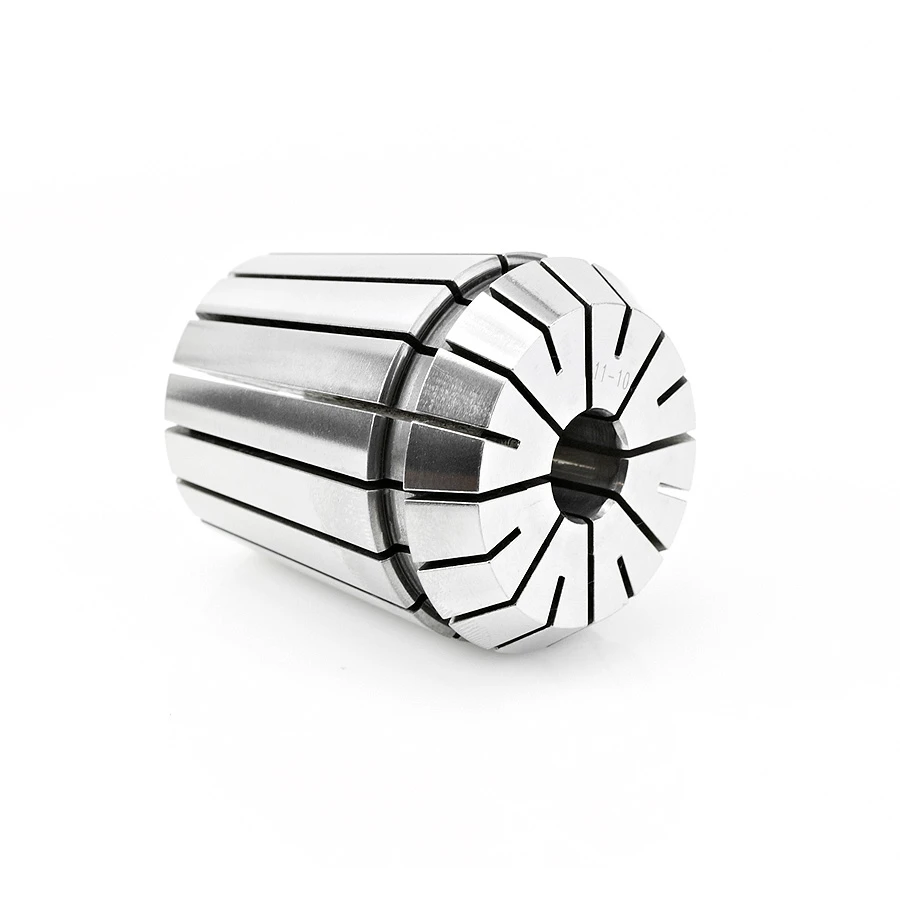

CO-214 10-11mm CNC High Precision Spring Collets for ER40 Tool Holder

$46.37

Usually ships on the 2nd business day from order date.
(D) Diameter 40.8mm
D1 32.5mm
Overall Length (L) 46mm
Collet Standard ER40
B 4.1mm
D 10-11mm
You will receive a courtesy discount of 5% if your cart exceeds $100 :)
UPC: 738685002148 SKU: CO-214 Categories: , ,

Description

Amana Tool Corp offers metric and inches High Precision CNC Spring Collets in ER and RDO Styles. All spring collets are inspected for quality & 100% accuracy. Standard 0.0004″ T.I.R.

The high precision spring collets allow to reduce the vibrations on the tools and motors, assure better results and prolong the life of the tools and electrospindles. Our high precision spring collets used on our high precision toolholders give you the very best tool performance.

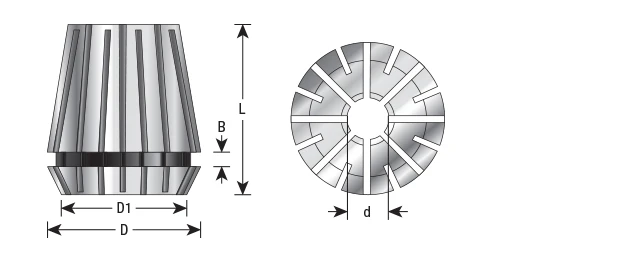

Specifications

(D) Diameter 40.8mm
D1 32.5mm
Overall Length (L) 46mm
Collet Standard ER40
B 4.1mm
d 10-11mm
