HO-174 BT 40 High Precision ER Collet Chuck Tool Holder
$125.44
Usually ships on the 2nd business day from order date.

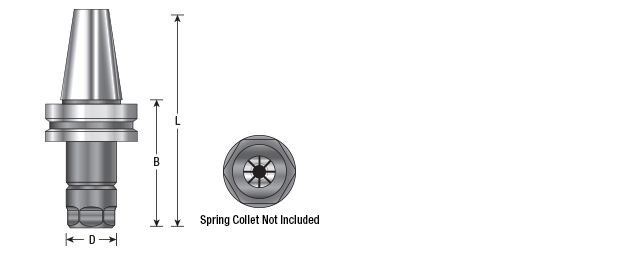

| Thread | M16 x 2.0 |
|---|---|
| (D) Diameter | 34mm |
| (B) Cutting Height | 100mm |
| Overall Length (L) | 165.4mm |
| Collet Standard | ER20 |
| Adapter Standard | BT 40 |
Description
• Made from alloy steel hardened to 54 – 56rc
• Tool Holders Balanced to G2.5 at 25 000 RPMs
• Coolant thru capability
• Concentricity is less than .0002 at collet face
• Rear thread for pull stud is M16 x 2.0
• Spring collet not included
Specifications
| Thread | M16 x 2.0 |
| (D) Diameter | 34mm |
| (B) Cutting Height | 100mm |
| Overall Length (L) | 165.4mm |
| Collet Standard | ER20 |
| Adapter Standard | BT 40 |
