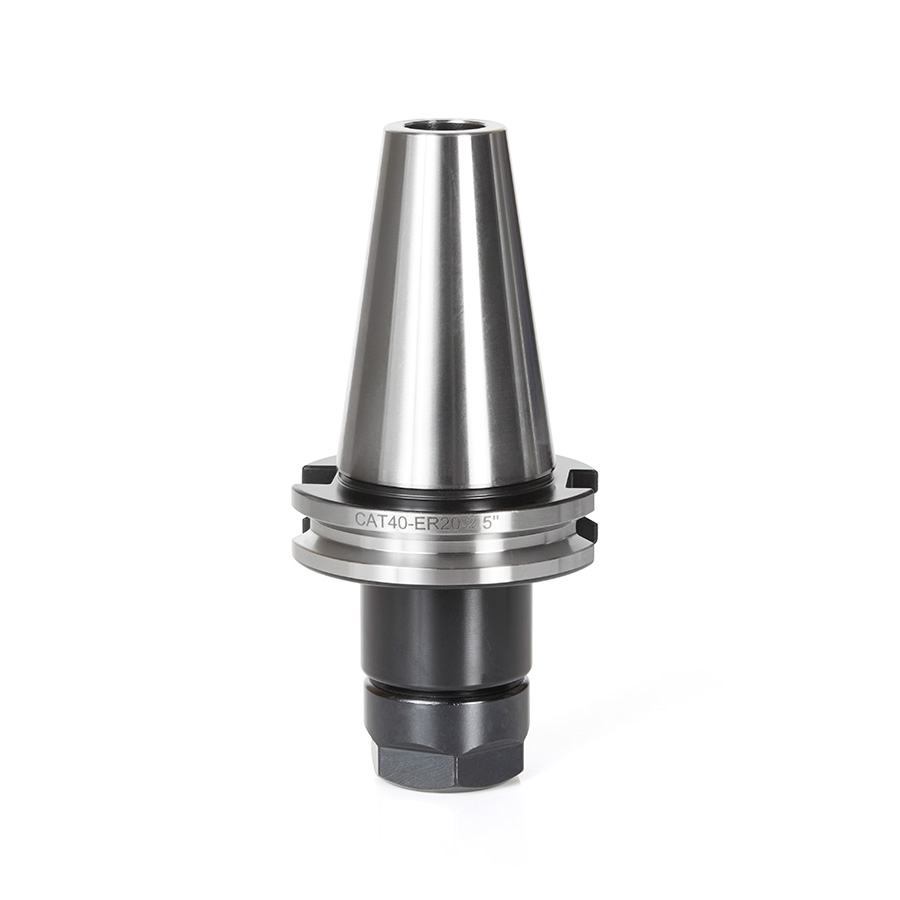

HO-206 CAT 40 High Precision ER Collet Chuck Tool Holder
$141.12
| Thread | 5/8 - 11 |
|---|---|
| (D) Diameter | 35mm |
| (B) Cutting Height | 2.5" |
| Overall Length (L) | 165.1mm |
| Collet Standard | ER20 |
| Adapter Standard | CAT 40 |
Description
• Made from alloy steel hardened to 54 – 56rc
• Tool Holders Balanced to G2.5 at 25 000 RPMs
• Coolant thru capability
• Concentricity is less than .0002 at collet face
• Rear thread for pull stud is 5/8 – 11
• Spring collet not included
Specifications
| Thread | 5/8 - 11 |
| (D) Diameter | 35mm |
| (B) Cutting Height | 2.5" |
| Overall Length (L) | 165.1mm |
| Collet Standard | ER20 |
| Adapter Standard | CAT 40 |
