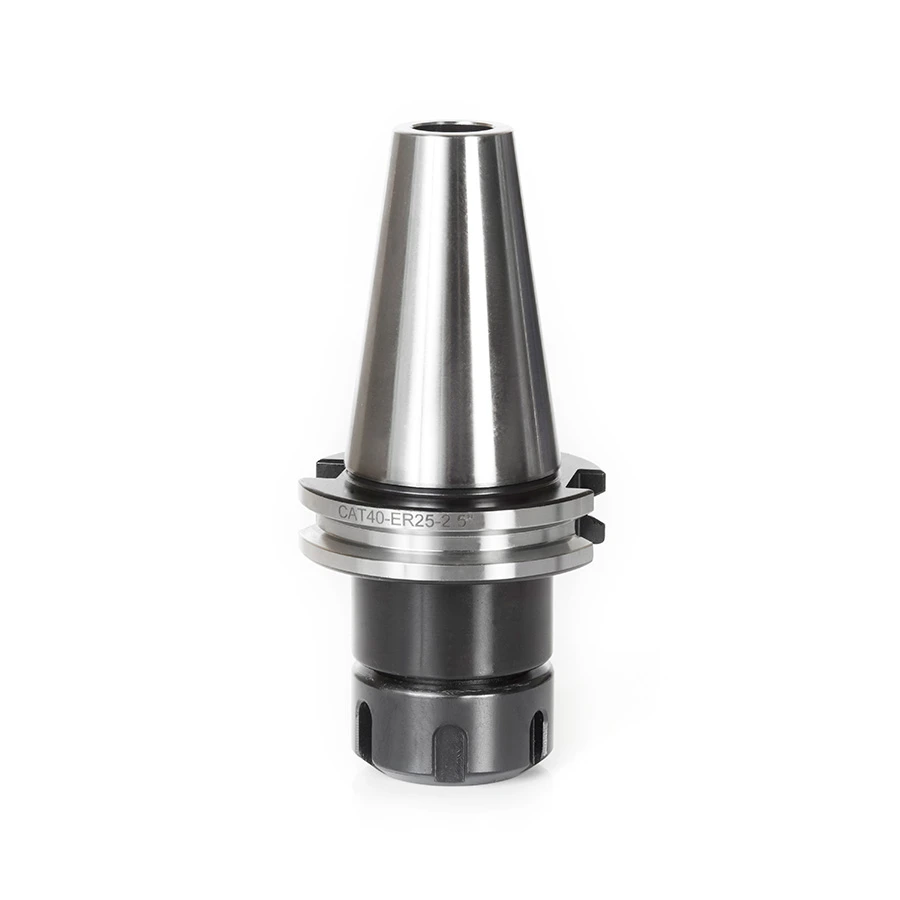

HO-212 CAT 40 High Precision ER Collet Chuck Tool Holder
| Thread |
5/8 - 11 |
| (D) Diameter |
42mm |
| (B) Cutting Height |
2.5" |
| Overall Length (L) |
165.1mm |
| Collet Standard |
ER25 |
| Adapter Standard |
CAT 40 |
Description
• Made from alloy steel hardened to 54 – 56rc
• Tool Holders Balanced to G2.5 at 25 000 RPMs
• Coolant thru capability
• Concentricity is less than .0002 at collet face
• Rear thread for pull stud is 5/8 – 11
• Spring collet not included
Specifications
| Thread |
5/8 - 11 |
| (D) Diameter |
42mm |
| (B) Cutting Height |
2.5" |
| Overall Length (L) |
165.1mm |
| Collet Standard |
ER25 |
| Adapter Standard |
CAT 40 |
