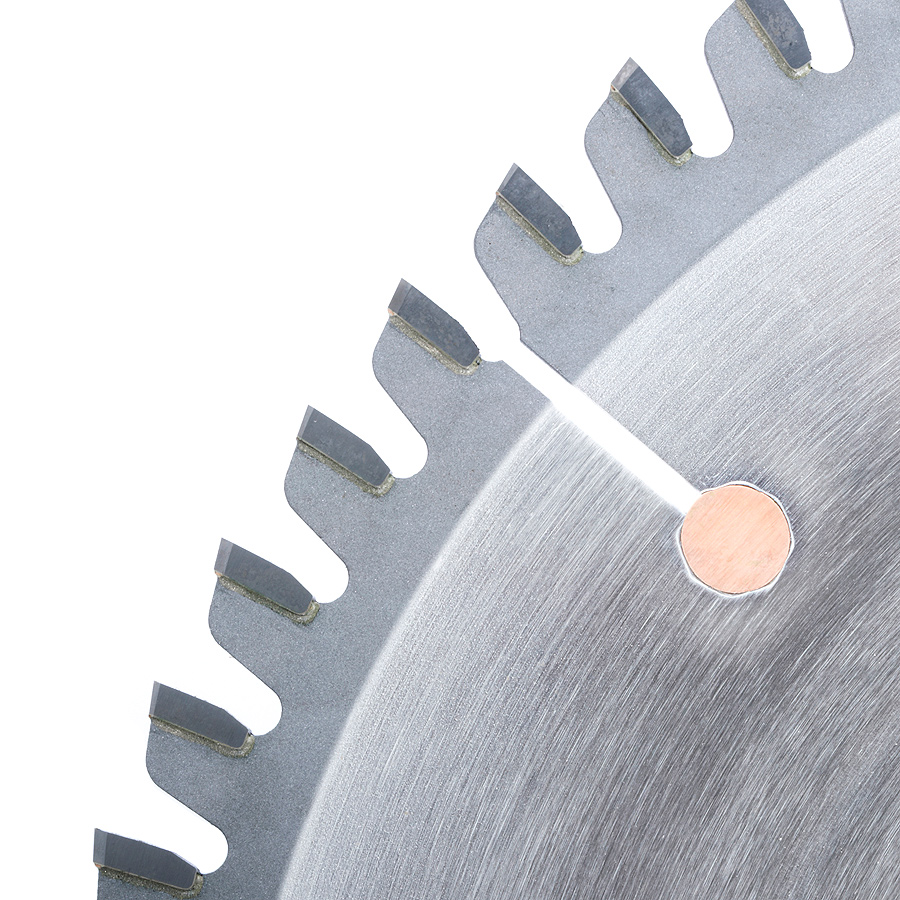

LB220T641 Carbide Tipped Non-Melt Plastic 220mm Inch Dia x 64T M-TCG, -2 Deg, 30mm Bore
$204.90
Usually ships on the 2nd business day from order date.
Diameter (D) | 220mm |
---|---|
Teeth | 64 |
(d) Bore | 30mm |
Tooth Grind | M-TCG |
Hook Angle | -2° |
Application | Plastic No Melt |
Kerf (B) | .126 (3.2mm) |
Pinholes | 2/7/42 |
Plate (c) | .079 (2.0mm) |
Description
Designed specifically for the Holz-Her® 220mm panel saws.
When cutting acrylics and plastics, “chip-welding” – a melting of the material is a concern. But not with these Non-Melt blades. With a modified triple-chip grind and a 2° negative hook angle, they produce less heat than a standard blade, leaving a crisp and smooth edge.
Excellent for Cutting
- Plastics
- Acrylonitrile Butadiene Styrene (ABS)
- Acetal
- Acrylic
- Acrylic Sheets
- Alupanel®
- Copolymer
- Coroplast®*
- Correx Boards
- Corrugated Polypropolyene
- Delrin
- Ethylene-Vinyl Acetate
- Foam Board
- Gatorfoam®**
- High Density Polyethylene (HDPE)
- High Impact Polystyrene (HIPS)
- High Pressure Laminates (HPL)
- Low Density Polyethylene (LDPE)
- Lucite®
- Mechanical/Engineered Plastics
- Nitrile Rubber
- Nylon
- Perspex® Cast Acrylic Sheet
- Plastic Laminate Flooring
- Plexiglas®
- Poly (methyl methacrylate) (PMMA)
- Polycarbonate (Lexan™)
- Polyethylene (PE)
- Polyethylene Terephthalate (PET)
- Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
- Polypropylene (PP)
- Solid Surface
- Styrene-Acrylonitrile
- Styrene-Butadiene Rubber (SBR)
- Styrene-Isoprene-Styrene (SIS)
- Teflon®
- Thermoplastic Polyolefin (TPO)
- Trespa® Meteon®***
- Ultra High Molecular Weight Polyethylene (UHMWPE)
- Wood
*A soft plastic cardboard made with super soft super flexible PVC.
Specifications
(D) Diameter | 220mm |
Teeth | 64 |
(d) Bore | 30mm |
Tooth Grind | M-TCG |
Hook Angle | -2° |
Application | Plastic No Melt |
Kerf (B) | .126 (3.2mm) |
Pinholes | 2/7/42 |
Plate (C) | .079 (2.0mm) |
