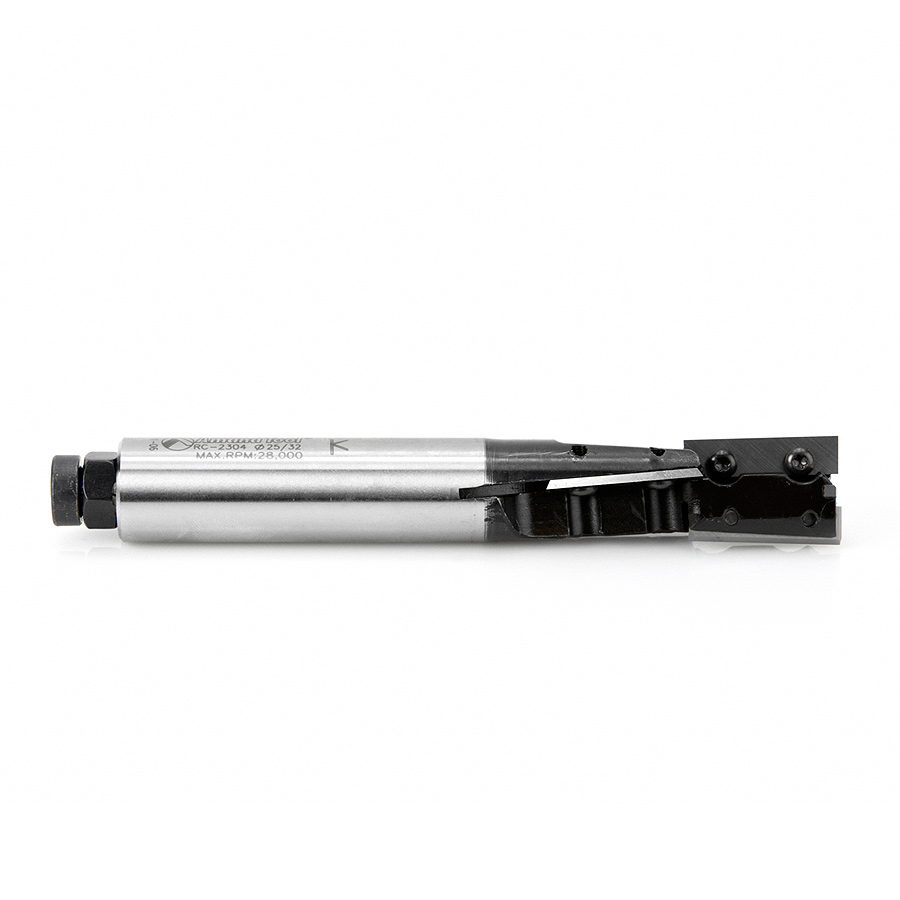

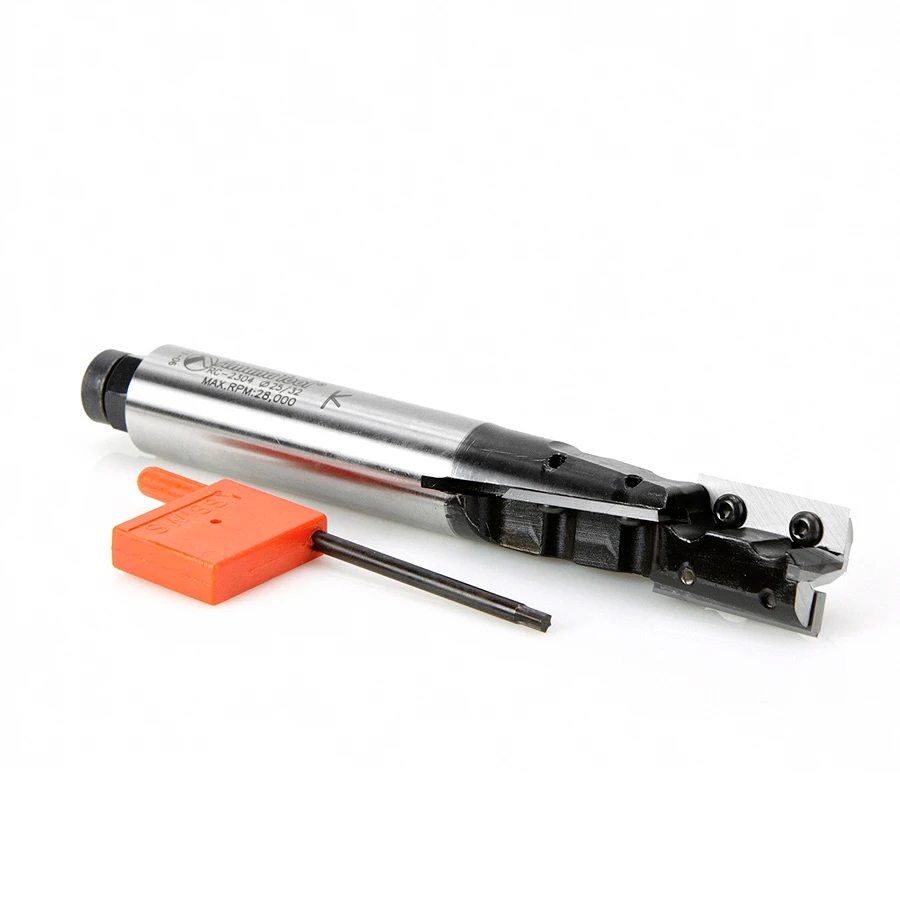

RC-2304 CNC Insert Straight Cutter Up & Down Shear Flutes 20mm(25/35) Dia x 50mm x 3/4 Shank
$329.24
Usually ships on the 2nd business day from order date.
| Diameter (D) | 20mm(25/32) |
|---|---|
| (B) Cutting Height | 50mm |
| Shank (d) | 3/4 |
| Overall Length (L) | 130mm |
| Max Rpm | 18,000 |
| Replacement Knives | RCK-28 (4 knives required) |
Description
Insert straight router bit complete with two up/down-shear flutes and center tip. Shear flutes squeeze the material into the middle to give an extra fine finish on both surfaces of laminated and veneered board. Replaceable inserts ensure a constant cutting diameter and finish quality. Center tip for improved boring. For use on routers with CNC control.
Standard tightening torque for M3 screw is 0.2 Nm
Specifications
| Diameter (D) | 20mm(25/32) |
| Cutting Height (B) | 50mm |
| Shank (d) | 3/4 |
| Overall Length (L) | 130mm |
| Max RPM | 18,000 |
| Replacement Knives | RCK-28 (4 knives required) |
