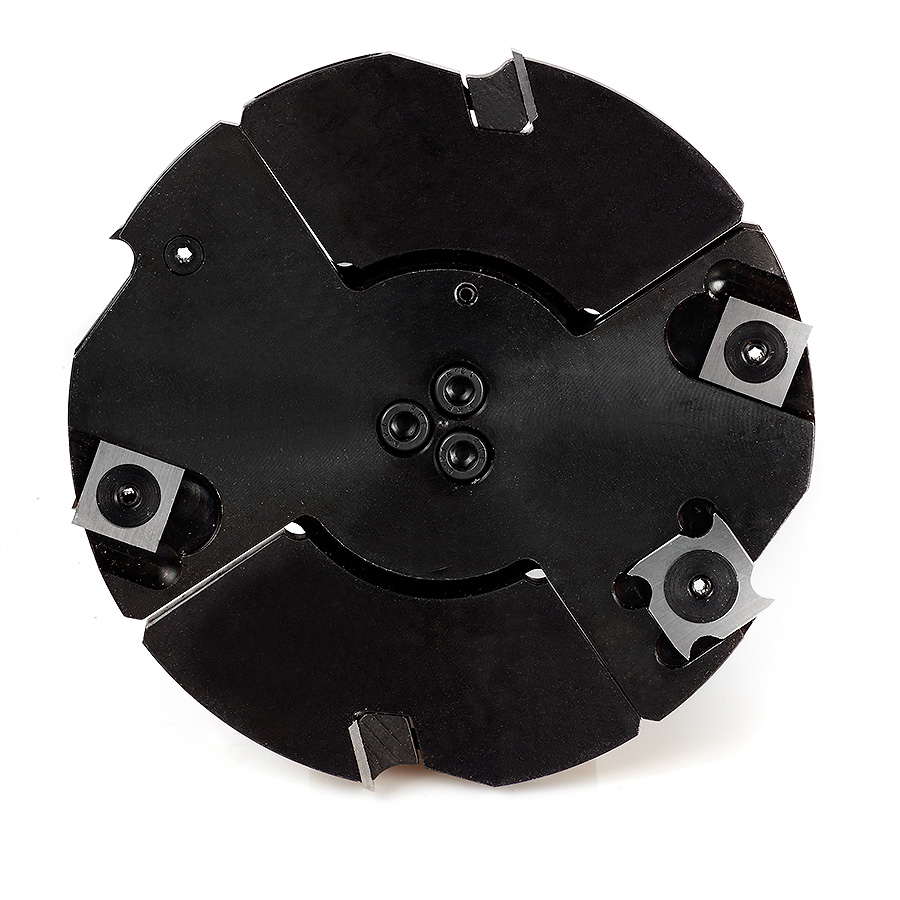

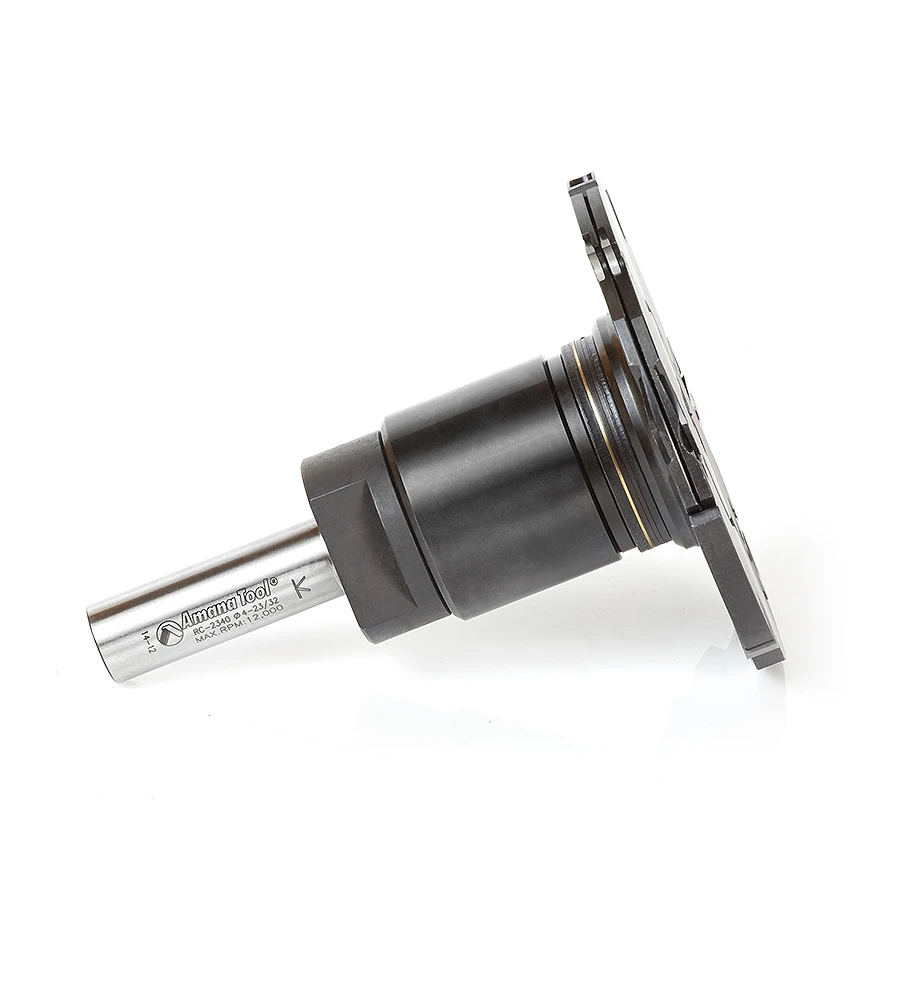

RC-2340 CNC Insert Adjustable Grooving 120mm Dia x 4-15.5mm x 3/4 Shank
$940.53
Usually ships on the 2nd business day from order date.

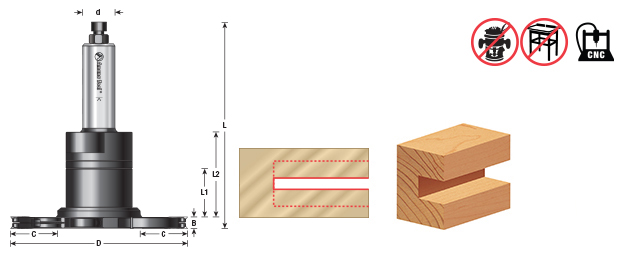

Diameter (D) | 4-3/4 (120mm) |
---|---|
(B) Cutting Height | 5/32 - 5/8 (4 - 15.5mm) |
Shank (d) | 3/4 |
Overall Length (L) | 5-15/32 |
L1 | 2-1/8 |
Max Rpm | 12,000 |
L2 | 2-15/16 |
Repl-blade | AMA-17 (2), RCK-18 (2), RCK-71 (4) |
C | 1-5/16 |
Description
Hard wearing steel body complete with tungsten carbide knives and scorer for improved finish. Suitable for producing various thickness grooves and slots in softwood, hardwood and man-made boards (with or without coating). Cutting width can be adjusted in 0.1mm steps by using supplied spacer rings. Replaceable inserts ensure a constant cutting diameter and finish quality. For use on routers and machining centers with CNC control.
Specifications
(D) Diameter | 4-3/4 (120mm) |
(B) Cutting Height | 5/32 - 5/8 (4 - 15.5mm) |
(d) Shank | 3/4 |
Overall Length (L) | 5-15/32 |
L1 | 2-1/8 |
Max RPM | 12,000 |
L2 | 2-15/16 |
Repl. Blade | AMA-17 (2), RCK-18 (2), RCK-71 (4) |
C | 1-5/16 |
