RC-2496 CNC Insert Nova System Ogee Plunge Form for MDF & Wood Cabinet Doors 1-17/64 Dia x 27/64 x 1/2 Inch Shank

$219.44

Usually ships on the 2nd business day from order date.
Diameter (D) 1-17/64
Radius (R) 3mm
(B) Cutting Height 27/64
Shank (d) 1/2
Overall Length (L) 2-5/8
Style Ogee
Repl. Knives RCK-496
Type Plunge Form
D1 7/16
R1 2mm
You will receive a courtesy discount of 5% if your cart exceeds $100 :)

Description

This series of profiles utilizing our Nova™ Tool body system of interchangeable carbide insert knives are designed to give the appearance of a Raised Panel door in MDF or solid panels.

One pass is all that is needed for a simple raised panel look using one of the “Plunge Form” profiles.

Replacement knives are MDF Grade Carbide and will last much longer than standard brazed carbide tipped bits.

Excellent For:

  • MDF
  • Wood

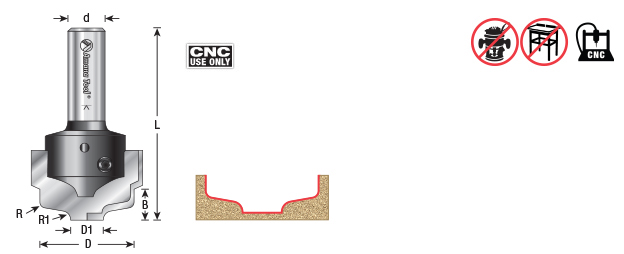

Specifications

Diameter (D) 1-17/64
Radius (R) 3mm
Cutting Height (B) 27/64
Shank (d) 1\2
Overall Length (L) 2-5/8
R1 2mm
Style Ogee
Replacement Knives RCK-496
Type Plunge Form
D1 7/16
