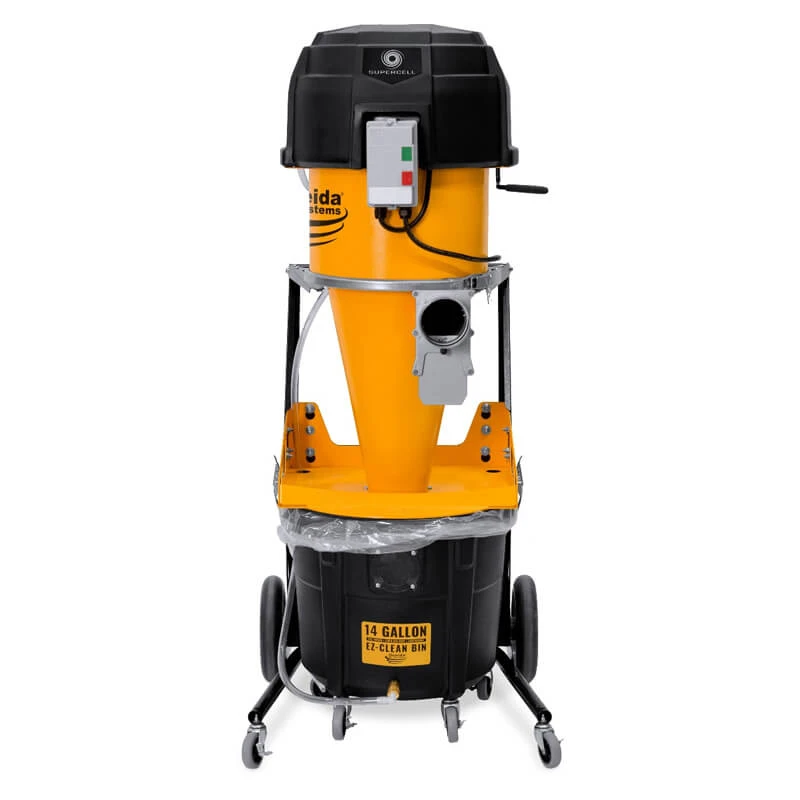

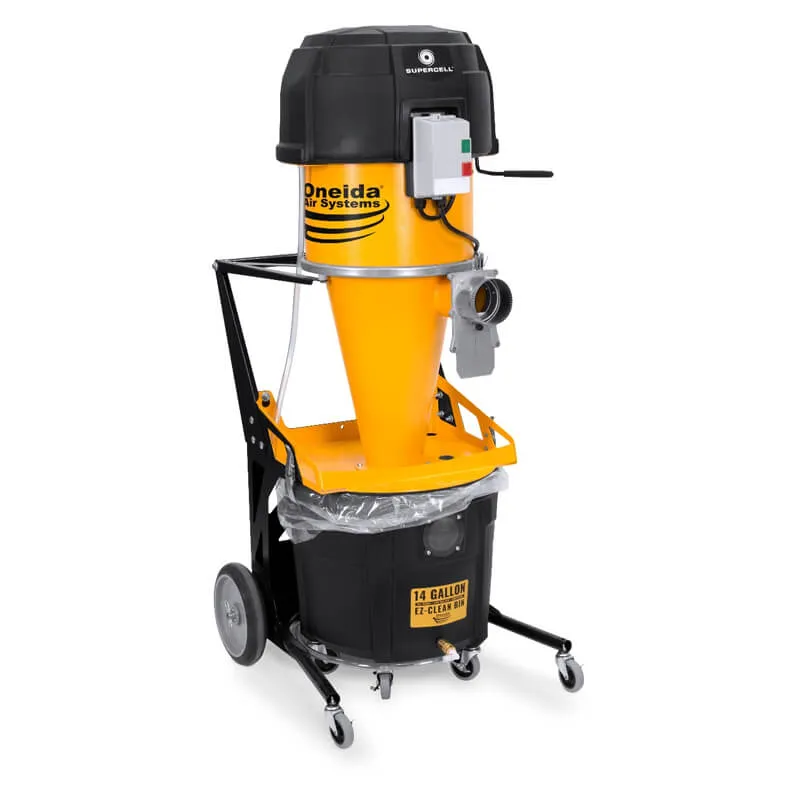

Supercell Turbo High-Pressure 14 Gal. Mobile HEPA-GFM Cyclone Dust Collector
$5,831.00
- Universal design collects through up to 100′ of hose and ductwork.
- 10x higher suction pressure than standard dust collectors and 20% more airflow than the classic Supercell!
- Serves 1-4″ dia. dust ports and incidental use of some 5″ ports.
- 14-gallon drop-down dust bin with automatic bag holder and fill indicator.
- HEPA-grade media filter with internal pulse filter cleaner.
- Compact, mobile design ideal for smaller shops with limited space.
- Includes 4″ x 25′ vacuum-rated SD urethane flex-hose.
Description
New from Oneida Air Systems, the Supercell® Turbo features everything you know and love about the original universal dust collector, but with 20% more airflow through 4″ ports!
The Supercell Turbo is ideal for handheld and portable tools – especially small CNC routers. Its adaptable design mounts conveniently to the wall and can be installed virtually anywhere in the shop, connecting to tools by up to an astounding 100 feet of 4″ hose or ductwork. Check out Supercell Ductwork & Hose Kit to get started!
Included Features & Components
- Combined 6.7HP 230V High-Pressure Fan Motors (30A Breaker Required)

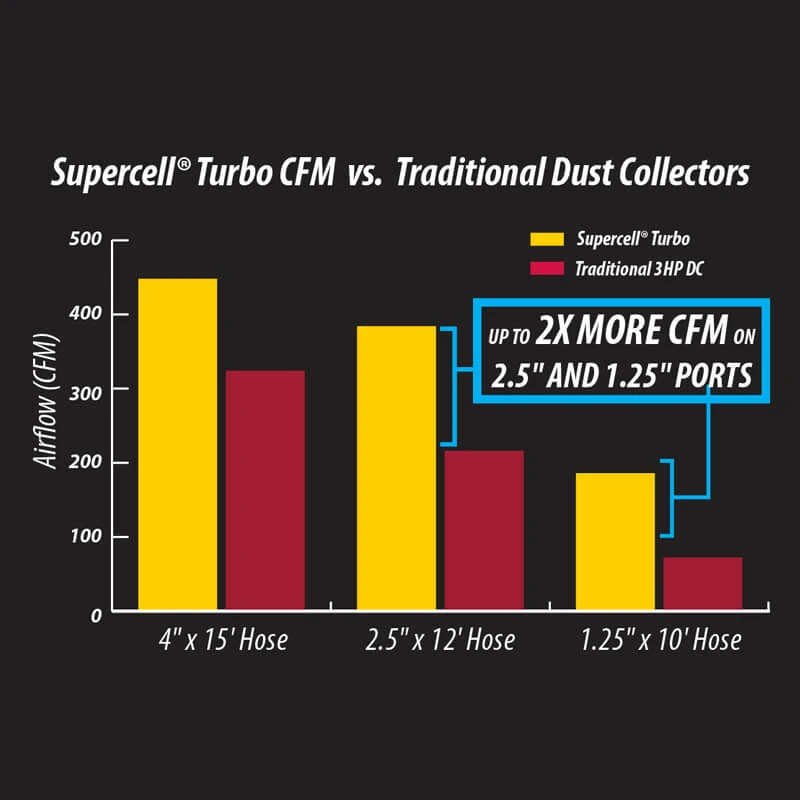

- Up to 10x More Suction Power and 2x More CFM (through smaller ports) than Standard Dust Collectors
- Simultaneously Supports Up to Three 1″ to 2.5″ Dust Ports
- Wireless Radio Frequency Remote Control Keyfob
- High-Efficiency Heavy-Gauge Steel Cyclone Separator
- HEPA-Grade Filter Media
- Internal Pulse Filter Cleaner System
- Lightweight 14-Gallon Drop-Down Dust Bin with Viewing Window
- Automatic Bag Holder System (5 Free Bags Included)
- Dust Sentry™ Bin Fill Level Indicator
- Compact, Mobile Cart with Non-Marking Casters and Solid Rubber Wheels
- 4″ x 25′ Reinforced Vacuum-Rated Flex Hose *
- 1 Year Limited Warranty
- cETLus Certified and NFPA Compliance Ready
Specifications
| Horsepower | 6.7 hp |
| Motor Type | 4x 1300W Modular Motors |
| Voltage | 220-240V |
| Recommended Breaker Size | 30A |
| Amperage (Typical) | 22A |
| Phase Option | Single-Phase (Pre-Wired) |
| Frequency | 60Hz |
| Power Connector Type |
 |
| Power Cord Length | 9 feet |

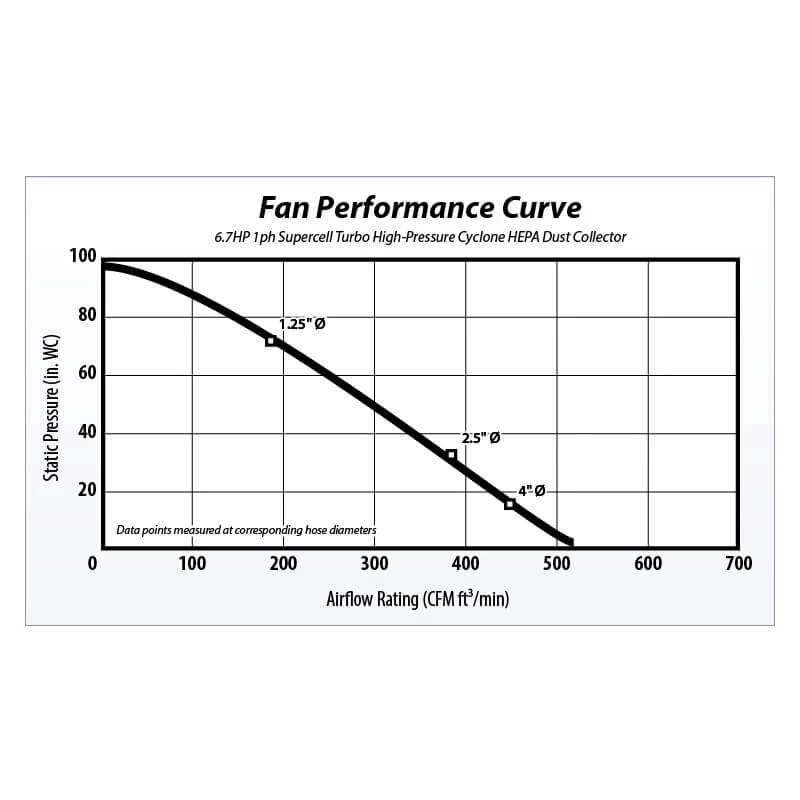

| Real CFM Rating | 518 CFM @ 2.7" WC |
| Free Fan CFM Rating | 634 CFM |
| Maximum Suction | 97.8" WC |
| Noise Level | 85 dBA @ 10 ft |
| Motor Speed Type | Fixed |
| Cyclonic Separation Efficiency | Removes over 99% of fine wood dusts |
| Filter Type | HEPA Grade ePTFE Media |
| Filtration Efficiency | E12 Minimum Efficiency Rating |
| Total Filtration Area | 40 sq ft |
| Waste Capacity | 14 Gallons |
| Remote Control | Included |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | Yellow |
| Inlet Size | 4" O.D. |
| Discharge Size | 5" O.D. |
| Width | 28.5" |
| Depth | 30" |

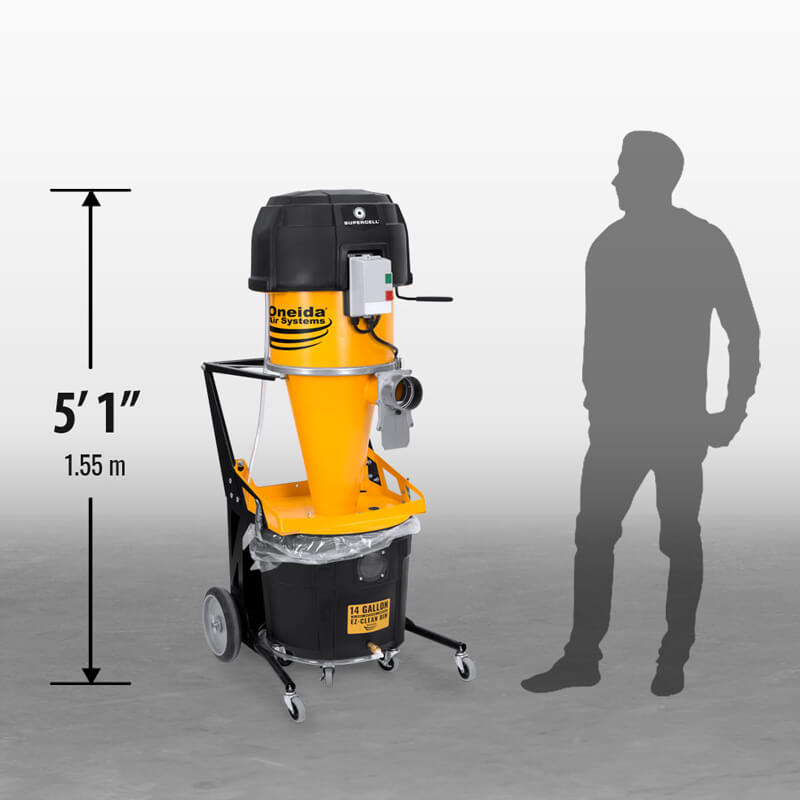

| Height | 61" |
| Actual Weight | 176 lbs |
| Contents | Fan Motor Assembly, Magnetic Starter, Remote Control, Cartridge Filter, Pulse Filter Cleaner, Cyclone Separator, Mobile Cart, Blast Gate, 2x Turn Key Clamp, Mobile Dust Bin, Dust Sentry Bin Level Indicator, Automatic Bag Holder System, 25' x 4" Vacuum Pressure Rated Hose, 5x Liner Bags, Viewing Window, Hardware |
| Manufacturer | Oneida Air Systems |
| Warranty Information | 1 Year Limited Warranty |
