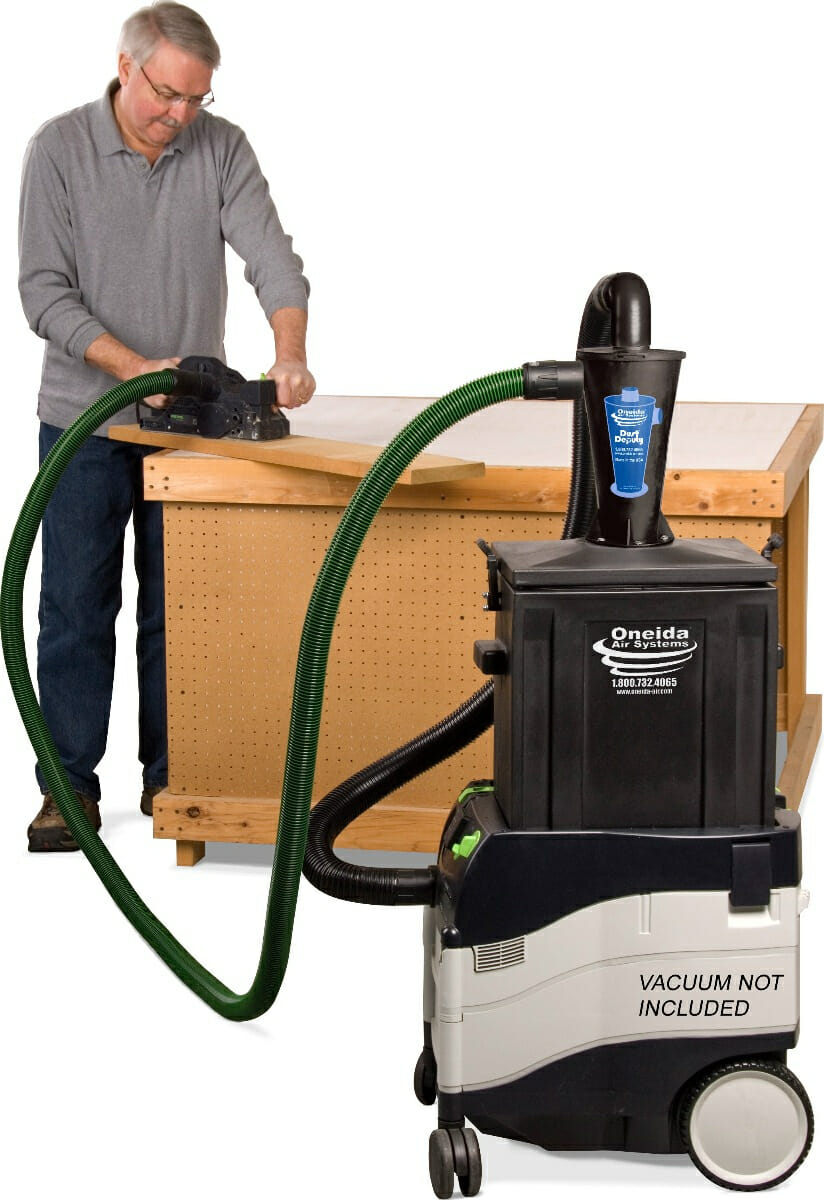

ultimate-dust-deputy-w-sander-vacultimate-dust-deputy-w-sander-vac
ultimate-dust-deputy-kit-w-vacultimate-dust-deputy-kit-w-vac
ultimate-dust-deputy-kit-contentsultimate-dust-deputy-kit-contents

Ultimate Dust Deputy Systainer Cyclone Separator Kit

$450.00

Original, patented, cyclone design stops over 99% of fine dusts and bulk debris from clogging your vacuum’s filter – eliminating suction loss while saving you time and money on expensive replacements! Ultimate kit is built with professional woodworkers and contractors in mind!

Usually ships in 2-4 weeks

1 in stock

SKU: AXD000009 Categories: ,

Description

Tired Of Buying Expensive Filters & Dust Bags?

Dust extractor owners, particularly tradesmen and contractors, are well aware of the cost of replacement filters and bags. No matter if you’re woodworking, drywalling, or renovating, a clogged filter can cost you valuable time and money both on the job-site and in the store.

With Oneida Air Systems’ Ultimate Dust Deputy® cyclone, you can convert your Festool dust extractor into a seamless three-stage dust containment system. Now 20% more efficient with Neutral Vane Technology, our patented cyclone design removes over 99% of dust and debris, containing it in an easy to empty dust bin, before it ever reaches the filter. By pre-separating both the larger debris and the finer dust particles, the Dust Deputy virtually eliminates filter clogging and suction loss, allowing your dust extractor to operate at maximum efficiency at all times and saving you money on expensive replacement parts!

Benefits & Features

  • Industrial static conductive Dust Deputy cyclone separator
  • Lightweight 9-Gallon dust bin with integrated carry handles features T-Loc Systainer ports that install directly onto Festool® CT 26/36/48 Dust Extractors*
  • Plastic liner bag retainer system allows for easy waste disposal. Just tie the bag off and toss it out – no more messy dust clouds!
  • 2″ x 5′ static conductive vacuum connection hose with 90° elbow adapters preserves grounding pathway

Specifications

Airflow Rating Minimum 50 CFM
Waste Capacity 9 Gallons
Inlet Size 2" O.D. (Tapered) 1-3/4" I.D.
Outlet Size 2" O.D. (Tapered) 1-3/4" I.D.
Discharge Size 3" I.D.
Primary Build Materials Static Dissipative Polypropylene
Static Resistance Rating Static Conductive
Color Black
Width 15.25"
Depth 11.25"
Height 30.5"
Height to Center of Inlet 26.625"
Product Compatibility Festool Dust Extractors: CT 26, CT 36, and CT 48 Festool CT MINI, CT MIDI, and CT 15: Require additional components and modification
Contents Cyclone, Systainer Box, Hose, 2x Elbow Adapters, Bag Gripper, Gasket, 3x Liner Bags, Hardware
Country of Manufacture United States
Warranty Information 1 Year Limited Warranty
Applicable Patents US Pat. #6833016, #RE40048, #7282074, #D638179, #D668409, #D632443, #D632854
