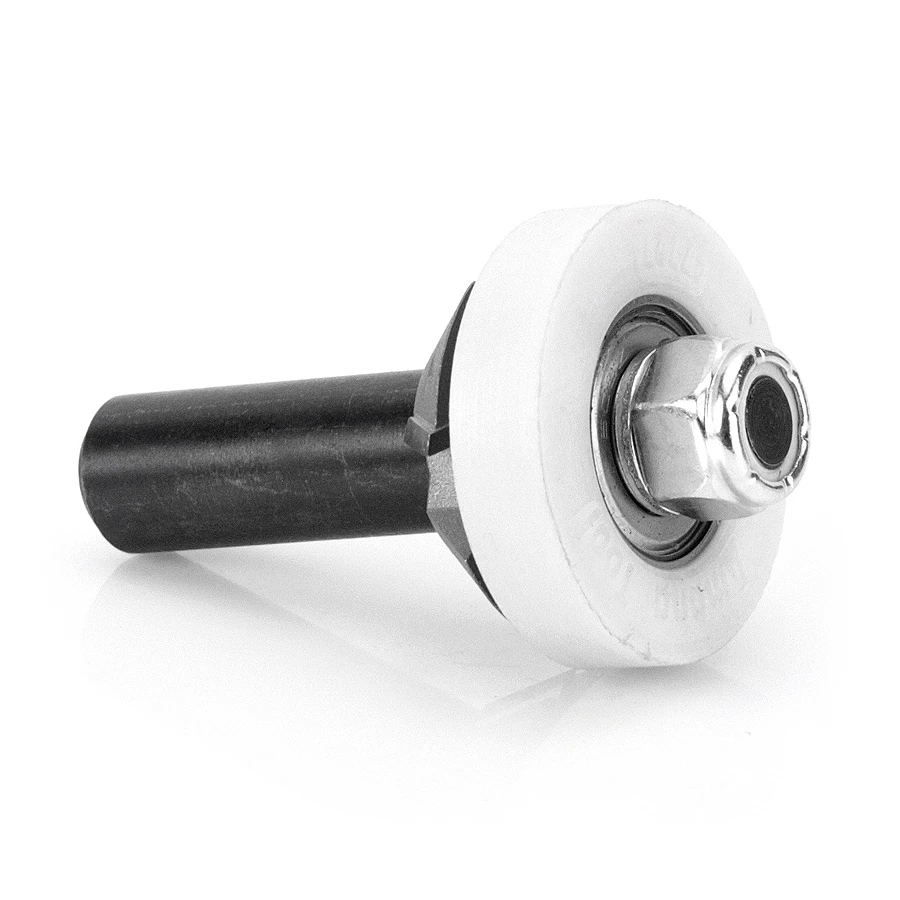

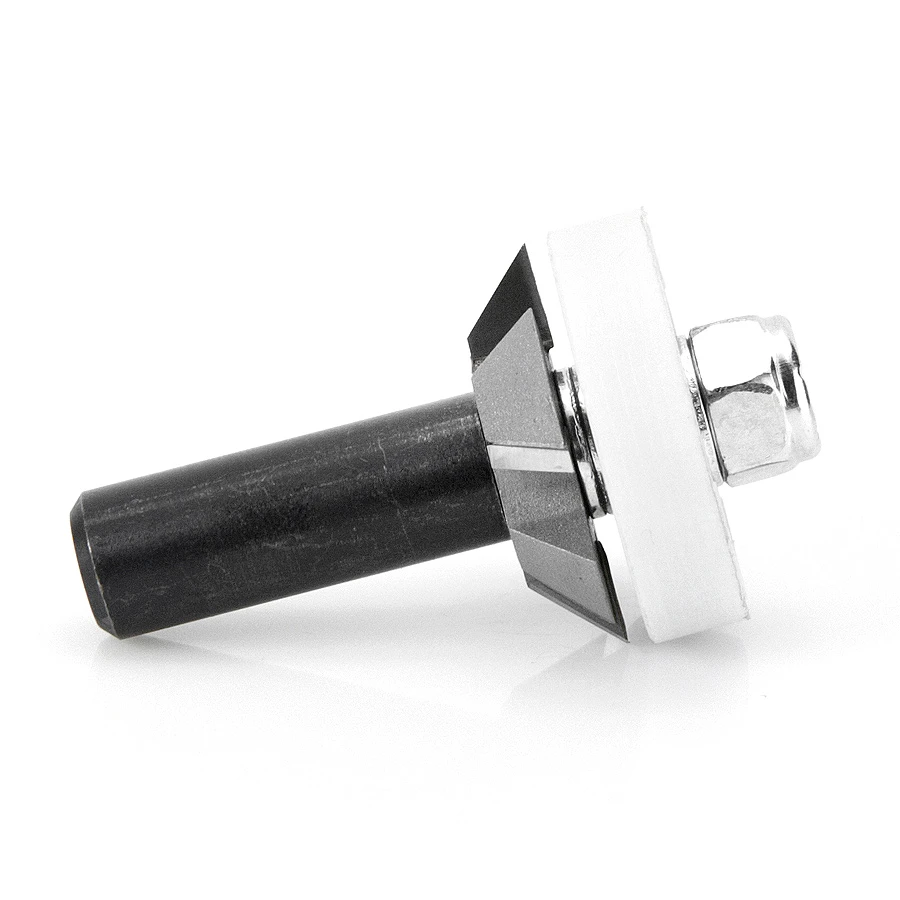

55314 Carbide Tipped 45 Deg Laminate Miter Joint Undercutter Assembly 1-3/8 Dia x 1/4 x 1/2 Inch Shank
$110.85
Usually ships on the 2nd business day from order date.
| (a°) Angle | 45° |
|---|---|
| Diameter (D) | 1-3/8 |
| (B) Cutting Height | 1/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/8 |
Description
Eliminate that dark line at the edge of a counter or other laminate-covered surface. With this bit assembly, the laminate cemented to the substrate can be trimmed and mitered in one pass. Then a pre-mitered edging strip can be applied. The resulting seam is clean and crisp. Not intended for use in a laminate trimmer.
a. Laminated top is ‘under-cut’, as shown.
b. Apron laminate is pre-cut at 45.°
c. Adhere pre-cut laminate for a perfect fit. A fine file
may be used to remove the sharp edge after joining.
Specifications
| Angle (a°) | 45° |
| Diameter (D) | 1-3/8 |
| Cutting Height (B) | 1/4 |
| Shank (d) | 1/2 |
| Overall Length (L) | 2-3/8 |
| Replacement Bearing | 47727 |
